Datasheet 74AVC1T45NX (Toshiba) - 3
| Fabricante | Toshiba |
| Descripción | 1-Bit Dual-Supply Bus Transceiver with Configurable Power Supply in XSON6(MP6D) package |
| Páginas / Página | 20 / 3 — 74AVC1T45NX. 7. Block. Diagram. 8. Truth. Table. Supply. voltage. Supply. … |
| Formato / tamaño de archivo | PDF / 324 Kb |
| Idioma del documento | Inglés |

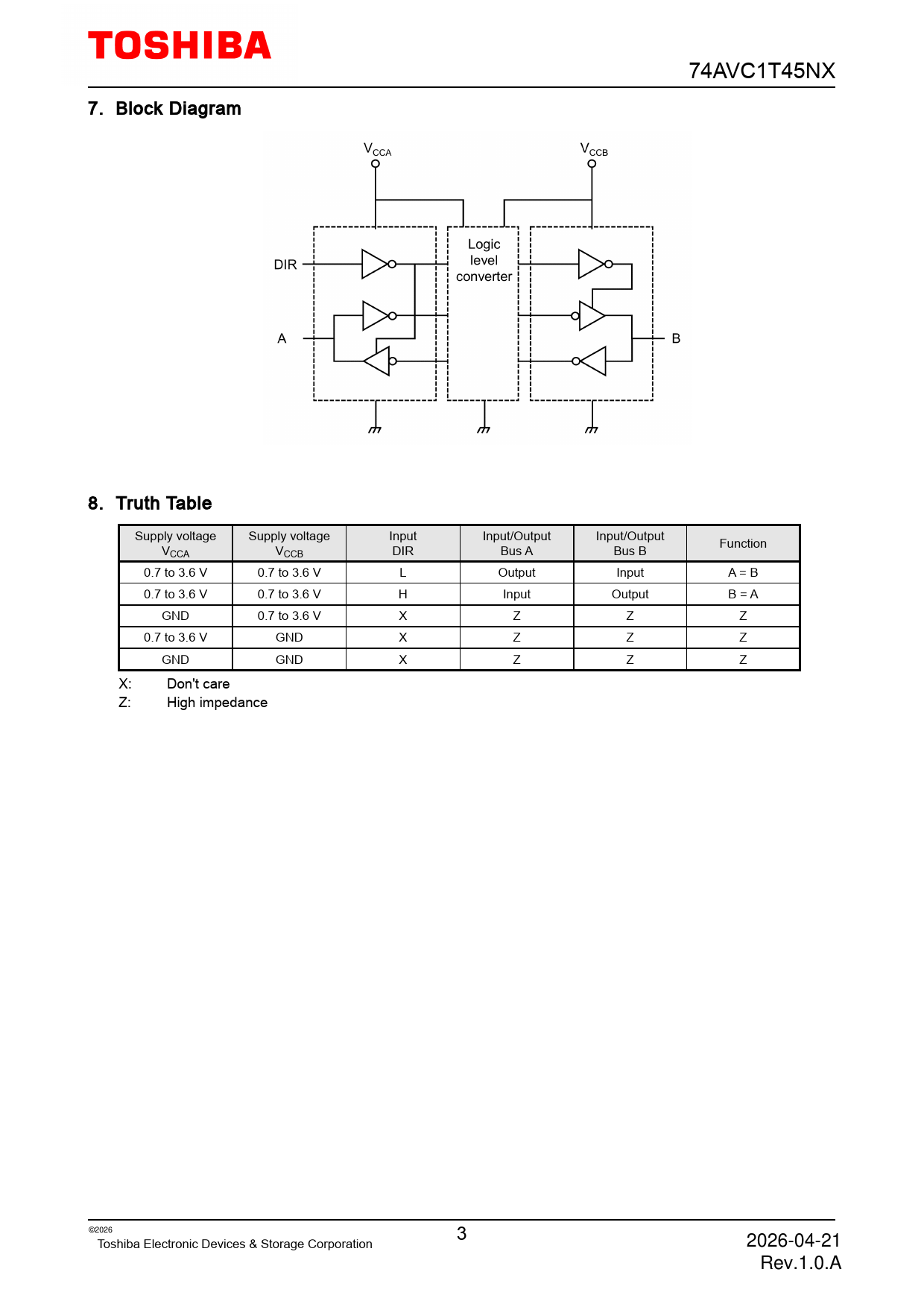

74AVC1T45NX. 7. Block. Diagram. 8. Truth. Table. Supply. voltage. Supply. voltage. Input. Input/Output. Input/Output. Function. VCCA. VCCB. DIR. Bus. A. Bus. B
Línea de modelo para esta hoja de datos
Versión de texto del documento
74AVC1T45NX 7. Block Diagram 8. Truth Table Supply voltage Supply voltage Input Input/Output Input/Output Function VCCA VCCB DIR Bus A Bus B 0.7 to 3.6 V 0.7 to 3.6 V L Output Input A = B 0.7 to 3.6 V 0.7 to 3.6 V H Input Output B = A GND 0.7 to 3.6 V X Z Z Z 0.7 to 3.6 V GND X Z Z Z GND GND X Z Z Z X: Don't care Z: High impedance ©2026 3 Toshiba Electronic Devices & Storage Corporation 2026-04-21 Rev.1.0.A
