Datasheet SS32, SS33, SS34, SS35, SS36 (Vishay) - 2
| Fabricante | Vishay |
| Descripción | Surface-Mount Schottky Barrier Rectifier in SMC (DO-214AB) package |
| Páginas / Página | 4 / 2 — ELECTRICAL CHARACTERISTICS. THERMAL CHARACTERISTICS. ORDERING … |
| Formato / tamaño de archivo | PDF / 1.1 Mb |
| Idioma del documento | Inglés |
ELECTRICAL CHARACTERISTICS. THERMAL CHARACTERISTICS. ORDERING INFORMATION. RATINGS AND CHARACTERISTICS CURVES
Línea de modelo para esta hoja de datos
- SS32-E3/57T SS32-E3/9AT SS32-M3/57T SS32-M3/9AT SS32HE3/57T SS32HE3/9AT SS32HE3_A/H SS32HE3_A/I SS32HE3_B/H SS32HE3_B/I
- SS33-E3/57T SS33-E3/9AT SS33-M3/57T SS33-M3/9AT SS33HE3/57T SS33HE3/9AT SS33HE3_A/H SS33HE3_A/I SS33HE3_B/H SS33HE3_B/I
Versión de texto del documento

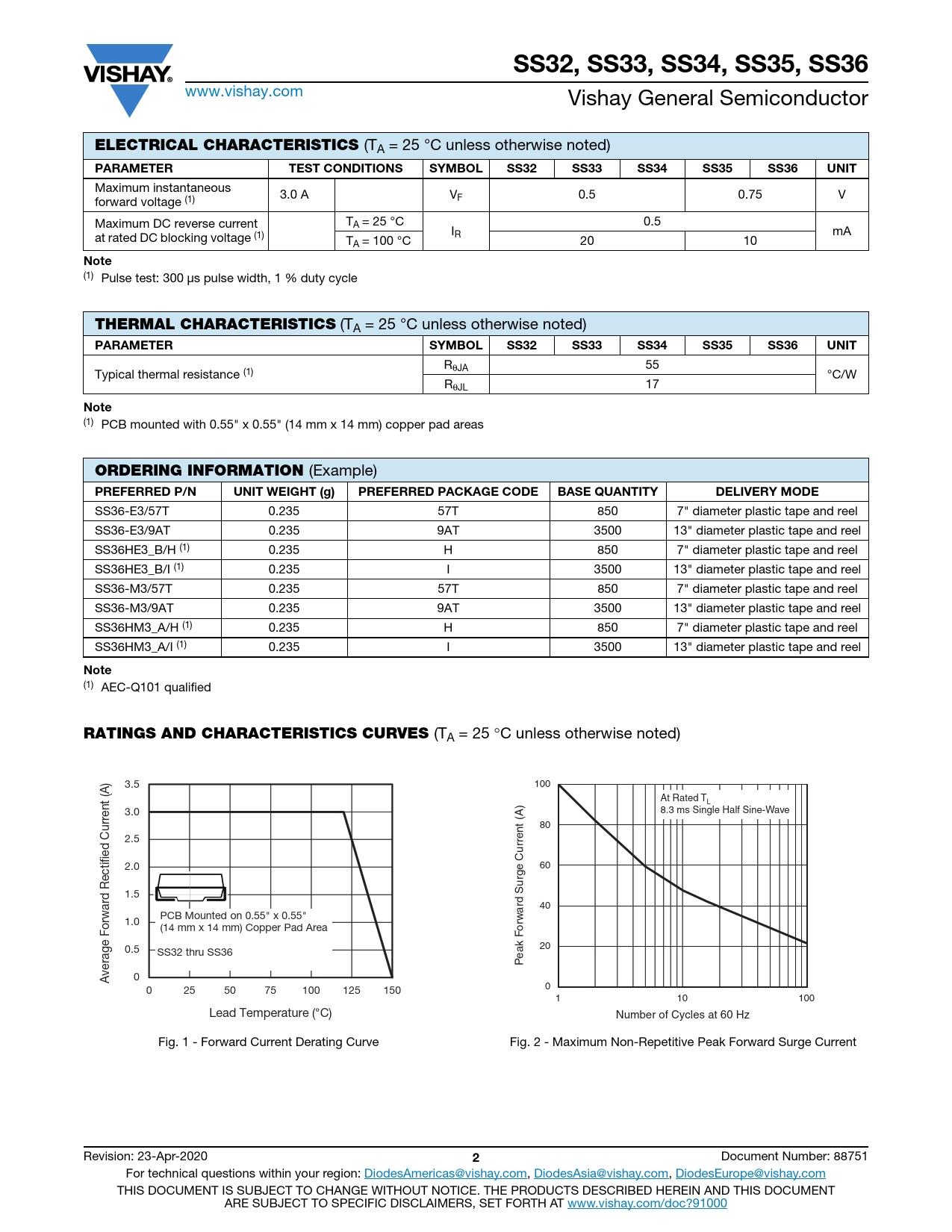

SS32, SS33, SS34, SS35, SS36 www.vishay.com Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted) PARAMETER TEST CONDITIONS SYMBOL SS32 SS33 SS34 SS35 SS36 UNIT Maximum instantaneous forward voltage (1) 3.0 A VF 0.5 0.75 V Maximum DC reverse current TA = 25 °C 0.5 I mA at rated DC blocking voltage (1) R TA = 100 °C 20 10 Note (1) Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted) PARAMETER SYMBOL SS32 SS33 SS34 SS35 SS36 UNIT RθJA 55 Typical thermal resistance (1) °C/W RθJL 17 Note (1) PCB mounted with 0.55" x 0.55" (14 mm x 14 mm) copper pad areas
ORDERING INFORMATION
(Example) PREFERRED P/N UNIT WEIGHT (g) PREFERRED PACKAGE CODE BASE QUANTITY DELIVERY MODE SS36-E3/57T 0.235 57T 850 7" diameter plastic tape and reel SS36-E3/9AT 0.235 9AT 3500 13" diameter plastic tape and reel SS36HE3_B/H (1) 0.235 H 850 7" diameter plastic tape and reel SS36HE3_B/I (1) 0.235 I 3500 13" diameter plastic tape and reel SS36-M3/57T 0.235 57T 850 7" diameter plastic tape and reel SS36-M3/9AT 0.235 9AT 3500 13" diameter plastic tape and reel SS36HM3_A/H (1) 0.235 H 850 7" diameter plastic tape and reel SS36HM3_A/I (1) 0.235 I 3500 13" diameter plastic tape and reel Note (1) AEC-Q101 qualified
RATINGS AND CHARACTERISTICS CURVES
(TA = 25 °C unless otherwise noted) 3.5 100 (A) At Rated T nt L 3.0 8.3 ms Single Half Sine-Wave 80 Curre 2.5 d e tifi 2.0 60 c e R 1.5 rd a 40 ard Surge Current (A) PCB Mounted on 0.55" x 0.55" 1.0 rw (14 mm x 14 mm) Copper Pad Area o Forw e g 0.5 20 SS32 thru SS36 ak F ra e e P 0 Av 0 25 50 75 100 125 150 0 1 10 100 Lead Temperature (°C) Number of Cycles at 60 Hz Fig. 1 - Forward Current Derating Curve Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current Revision: 23-Apr-2020 2 Document Number: 88751 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
