| Fabricante | Diodes |
| Descripción | Single-Channel Smart Load Switch in V-DFN3030-8 (Type R) package |
| Páginas / Página | 12 / 4 — DML1012ALDSQ. Absolute Maximum Rating. Recommended Operating Ranges. … |
| Formato / tamaño de archivo | PDF / 844 Kb |
| Idioma del documento | Inglés |

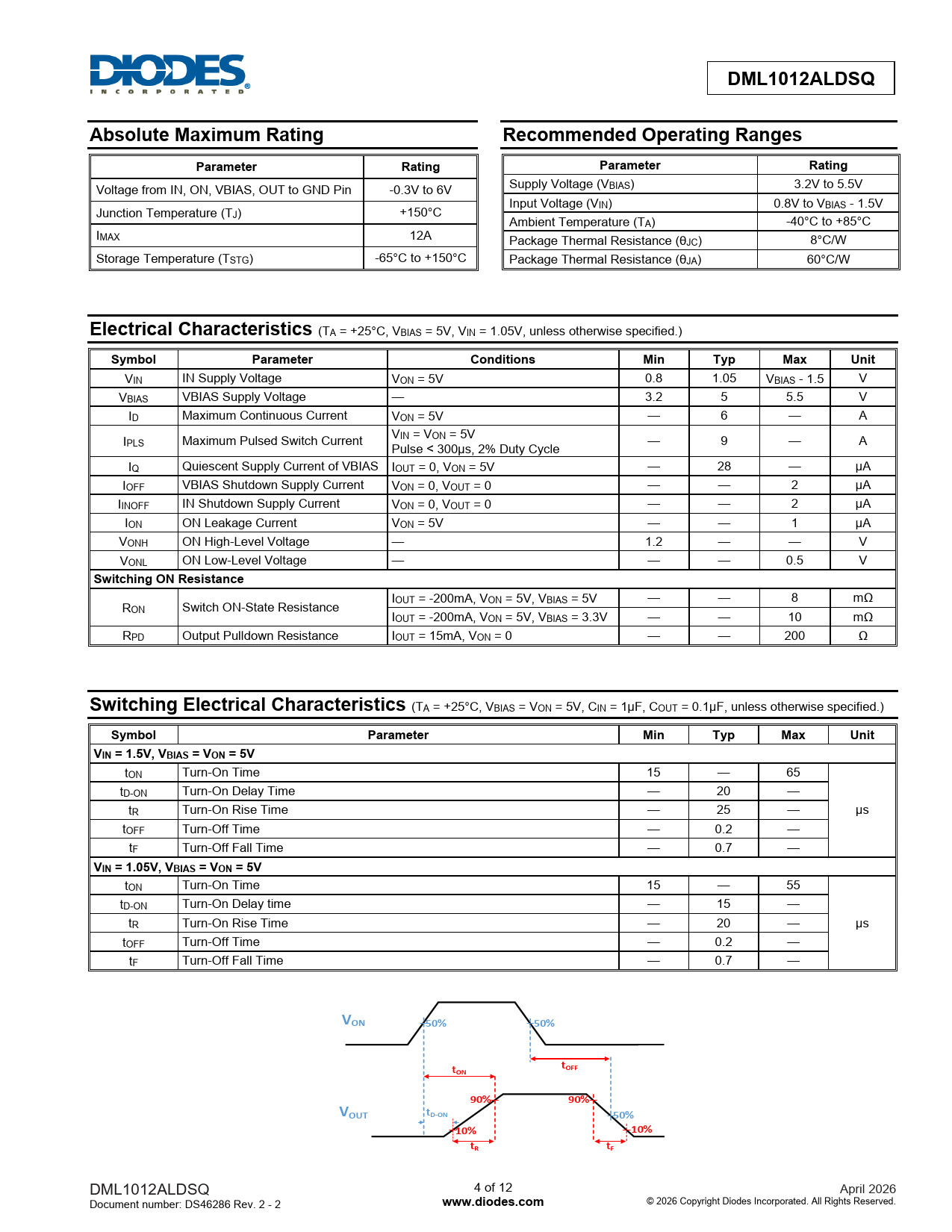

DML1012ALDSQ. Absolute Maximum Rating. Recommended Operating Ranges. Parameter. Rating. Electrical Characteristics. Symbol
Línea de modelo para esta hoja de datos
Versión de texto del documento
DML1012ALDSQ Absolute Maximum Rating Recommended Operating Ranges Parameter Rating Parameter Rating
Voltage from IN, ON, VBIAS, OUT to GND Pin -0.3V to 6V Supply Voltage (VBIAS) 3.2V to 5.5V Input Voltage (VIN) 0.8V to VBIAS - 1.5V Junction Temperature (TJ) +150°C Ambient Temperature (TA) -40°C to +85°C IMAX 12A Package Thermal Resistance (θJC) 8°C/W Storage Temperature (TSTG) -65°C to +150°C Package Thermal Resistance (θJA) 60°C/W
Electrical Characteristics
(TA = +25°C, VBIAS = 5V, VIN = 1.05V, unless otherwise specified.)
Symbol Parameter Conditions Min Typ Max Unit
VIN IN Supply Voltage VON = 5V 0.8 1.05 VBIAS - 1.5 V VBIAS VBIAS Supply Voltage — 3.2 5 5.5 V ID Maximum Continuous Current VON = 5V — 6 — A IPLS Maximum Pulsed Switch Current VIN = VON = 5V — 9 — A Pulse < 300μs, 2% Duty Cycle IQ Quiescent Supply Current of VBIAS IOUT = 0, VON = 5V — 28 — μA IOFF VBIAS Shutdown Supply Current VON = 0, VOUT = 0 — — 2 μA IINOFF IN Shutdown Supply Current VON = 0, VOUT = 0 — — 2 μA ION ON Leakage Current VON = 5V — — 1 μA VONH ON High-Level Voltage — 1.2 — — V VONL ON Low-Level Voltage — — — 0.5 V
Switching ON Resistance
IOUT = -200mA, VON = 5V, VBIAS = 5V — — 8 mΩ RON Switch ON-State Resistance IOUT = -200mA, VON = 5V, VBIAS = 3.3V — — 10 mΩ RPD Output Pulldown Resistance IOUT = 15mA, VON = 0 — — 200 Ω
Switching Electrical Characteristics
(TA = +25°C, VBIAS = VON = 5V, CIN = 1μF, COUT = 0.1μF, unless otherwise specified.)
Symbol Parameter Min Typ Max Unit VIN = 1.5V, VBIAS = VON = 5V
tON Turn-On Time 15 — 65 tD-ON Turn-On Delay Time — 20 — tR Turn-On Rise Time — 25 — μs tOFF Turn-Off Time — 0.2 — tF Turn-Off Fall Time — 0.7 —
VIN = 1.05V, VBIAS = VON = 5V
tON Turn-On Time 15 — 55 tD-ON Turn-On Delay time — 15 — tR Turn-On Rise Time — 20 — μs tOFF Turn-Off Time — 0.2 — tF Turn-Off Fall Time — 0.7 —
VON 50% 50% t tOFF ON 90% 90% VOUT tD-ON 50% 10% 10% tR tF
DML1012ALDSQ 4 of 12 April 2026 Document number: DS46286 Rev. 2 - 2
