Datasheet TDS5B212MX (Toshiba) - 9
| Fabricante | Toshiba |
| Descripción | 2 Differential Channel, 2:1 multiplexer/demultiplexer in XQFN16 package |
| Páginas / Página | 14 / 9 — TDS5B212MX,TDS5C212MX. 13. Electrical. Test. Circuit. (Fig). Fig. 13.1. … |
| Formato / tamaño de archivo | PDF / 564 Kb |
| Idioma del documento | Inglés |
TDS5B212MX,TDS5C212MX. 13. Electrical. Test. Circuit. (Fig). Fig. 13.1. -3-dB. Bandwidth(differential),. Fig. 13.2. Differential. OFF. isolation
Línea de modelo para esta hoja de datos
Versión de texto del documento

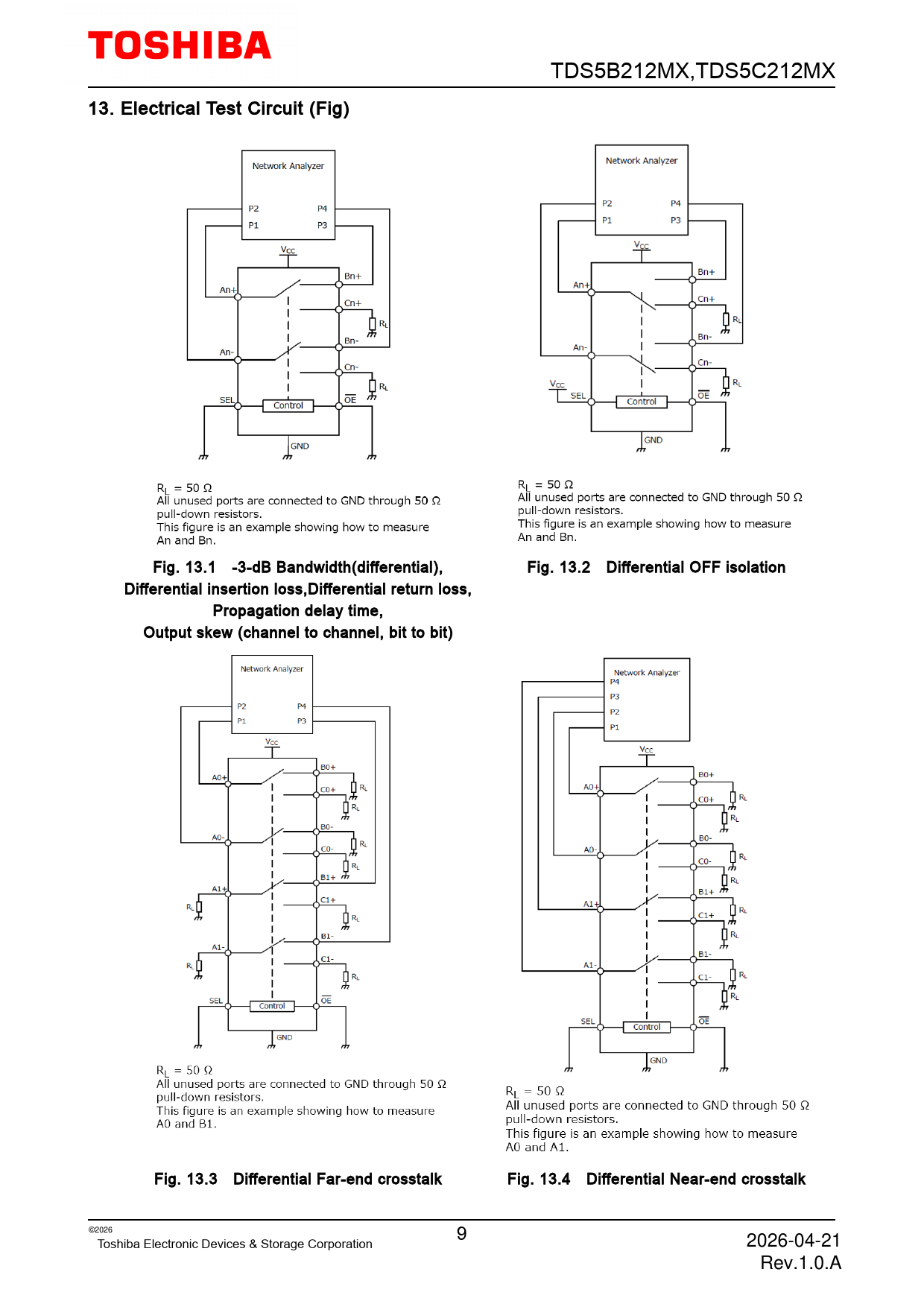

TDS5B212MX,TDS5C212MX 13. Electrical Test Circuit (Fig) Fig. 13.1 -3-dB Bandwidth(differential), Fig. 13.2 Differential OFF isolation Differential insertion loss,Differential return loss, Propagation delay time, Output skew (channel to channel, bit to bit) Fig. 13.3 Differential Far-end crosstalk Fig. 13.4 Differential Near-end crosstalk ©2026 9 Toshiba Electronic Devices & Storage Corporation 2026-04-21 Rev.1.0.A
