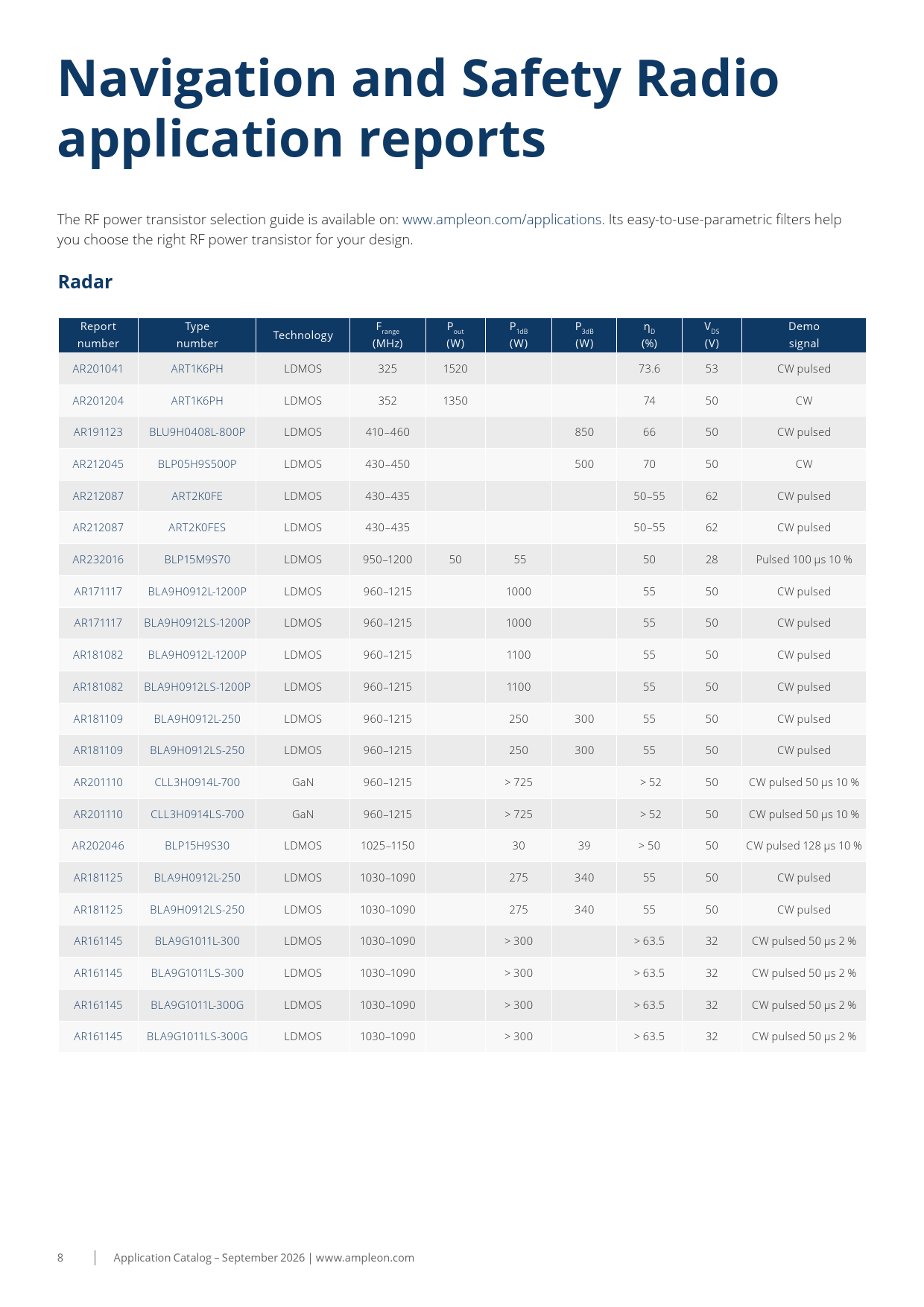

Navigation and Safety Radio application reports
The RF power transistor selection guide is available on: www.ampleon.com/applications. Its easy-to-use-parametric filters help you choose the right RF power transistor for your design.
Radar
Report Type F P P P η V Demo Technology range out 1dB 3dB D DS number number (MHz) (W) (W) (W) (%) (V) signal AR201041 ART1K6PH LDMOS 325 1520 73.6 53 CW pulsed AR201204 ART1K6PH LDMOS 352 1350 74 50 CW AR191123 BLU9H0408L-800P LDMOS 410–460 850 66 50 CW pulsed AR212045 BLP05H9S500P LDMOS 430–450 500 70 50 CW AR212087 ART2K0FE LDMOS 430–435 50–55 62 CW pulsed AR212087 ART2K0FES LDMOS 430–435 50–55 62 CW pulsed AR232016 BLP15M9S70 LDMOS 950–1200 50 55 50 28 Pulsed 100 μs 10 % AR171117 BLA9H0912L-1200P LDMOS 960–1215 1000 55 50 CW pulsed AR171117 BLA9H0912LS-1200P LDMOS 960–1215 1000 55 50 CW pulsed AR181082 BLA9H0912L-1200P LDMOS 960–1215 1100 55 50 CW pulsed AR181082 BLA9H0912LS-1200P LDMOS 960–1215 1100 55 50 CW pulsed AR181109 BLA9H0912L-250 LDMOS 960–1215 250 300 55 50 CW pulsed AR181109 BLA9H0912LS-250 LDMOS 960–1215 250 300 55 50 CW pulsed AR201110 CLL3H0914L-700 GaN 960–1215 > 725 > 52 50 CW pulsed 50 μs 10 % AR201110 CLL3H0914LS-700 GaN 960–1215 > 725 > 52 50 CW pulsed 50 μs 10 % AR202046 BLP15H9S30 LDMOS 1025–1150 30 39 > 50 50 CW pulsed 128 μs 10 % AR181125 BLA9H0912L-250 LDMOS 1030–1090 275 340 55 50 CW pulsed AR181125 BLA9H0912LS-250 LDMOS 1030–1090 275 340 55 50 CW pulsed AR161145 BLA9G1011L-300 LDMOS 1030–1090 > 300 > 63.5 32 CW pulsed 50 μs 2 % AR161145 BLA9G1011LS-300 LDMOS 1030–1090 > 300 > 63.5 32 CW pulsed 50 μs 2 % AR161145 BLA9G1011L-300G LDMOS 1030–1090 > 300 > 63.5 32 CW pulsed 50 μs 2 % AR161145 BLA9G1011LS-300G LDMOS 1030–1090 > 300 > 63.5 32 CW pulsed 50 μs 2 % 8 Application Catalog – September 2026 | www.ampleon.com
