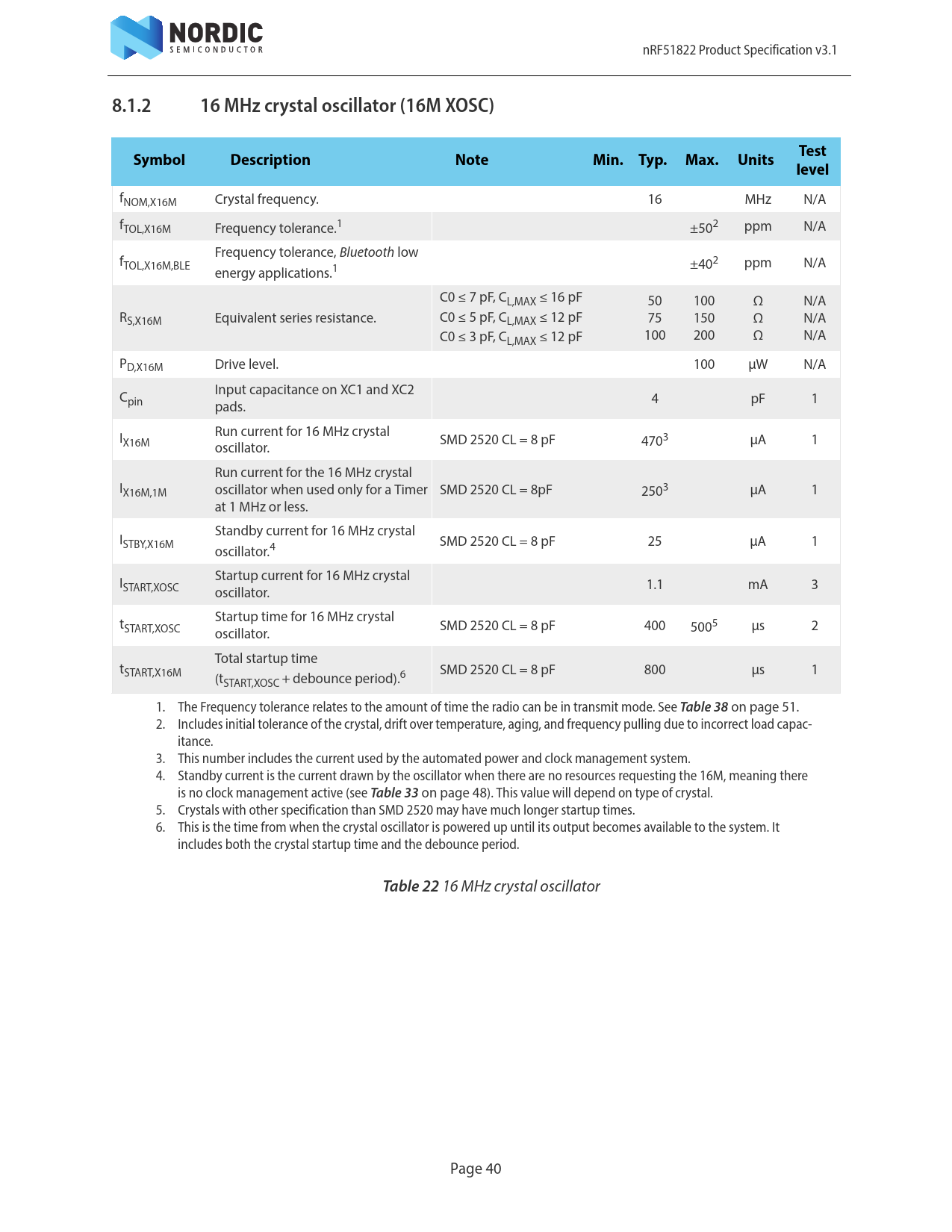

8.1.2 16 MHz crystal oscillator (16M XOSC) Test Symbol Description Note Min. Typ. Max. Units level
fNOM,X16M Crystal frequency. 16 MHz N/A fTOL,X16M Frequency tolerance.1 ±502 ppm N/A Frequency tolerance, Bluetooth low fTOL,X16M,BLE energy applications.1 ±402 ppm N/A C0 ≤ 7 pF, CL,MAX ≤ 16 pF 50 100 Ω N/A RS,X16M Equivalent series resistance. C0 ≤ 5 pF, CL,MAX ≤ 12 pF 75 150 Ω N/A C0 ≤ 3 pF, C 100 200 Ω N/A L,MAX ≤ 12 pF PD,X16M Drive level. 100 μW N/A Input capacitance on XC1 and XC2 Cpin 4 pF 1 pads. Run current for 16 MHz crystal IX16M SMD 2520 CL = 8 pF 4703 μA 1 oscillator. Run current for the 16 MHz crystal IX16M,1M oscillator when used only for a Timer SMD 2520 CL = 8pF 2503 μA 1 at 1 MHz or less. Standby current for 16 MHz crystal ISTBY,X16M SMD 2520 CL = 8 pF 25 μA 1 oscillator.4 Startup current for 16 MHz crystal ISTART,XOSC 1.1 mA 3 oscillator. Startup time for 16 MHz crystal tSTART,XOSC SMD 2520 CL = 8 pF 400 5005 μs 2 oscillator. Total startup time tSTART,X16M SMD 2520 CL = 8 pF 800 μs 1 (tSTART,XOSC + debounce period).6 1. The Frequency tolerance relates to the amount of time the radio can be in transmit mode. See
Table 38
on page 51. 2. Includes initial tolerance of the crystal, drift over temperature, aging, and frequency pulling due to incorrect load capac- itance. 3. This number includes the current used by the automated power and clock management system. 4. Standby current is the current drawn by the oscillator when there are no resources requesting the 16M, meaning there is no clock management active (see
Table 33
on page 48). This value will depend on type of crystal. 5. Crystals with other specification than SMD 2520 may have much longer startup times. 6. This is the time from when the crystal oscillator is powered up until its output becomes available to the system. It includes both the crystal startup time and the debounce period.
Table 22
