orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE

orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE

Línea de modelo para esta hoja de datos

Versión de texto del documento

LTC4151
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE

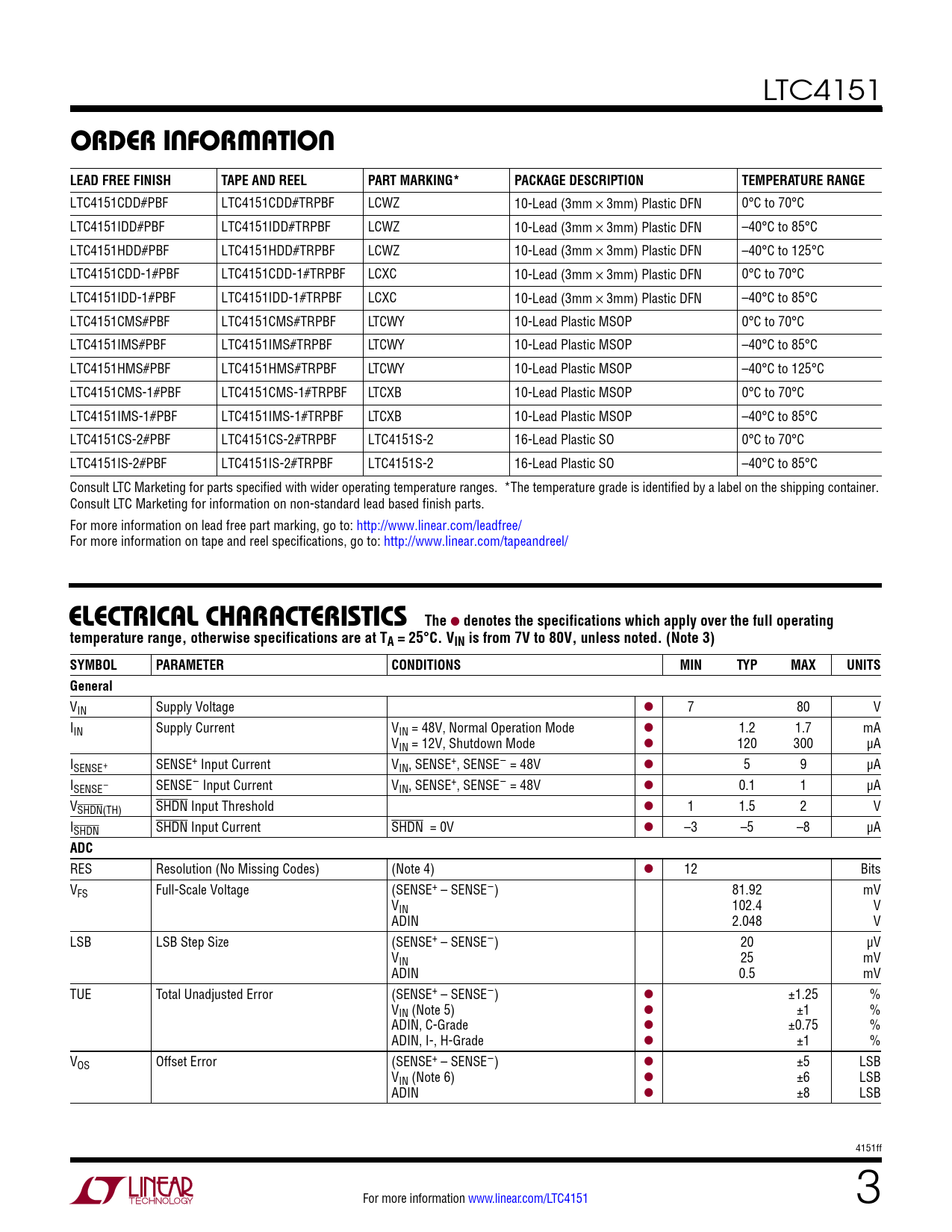

LTC4151CDD#PBF LTC4151CDD#TRPBF LCWZ 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4151IDD#PBF LTC4151IDD#TRPBF LCWZ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4151HDD#PBF LTC4151HDD#TRPBF LCWZ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC4151CDD-1#PBF LTC4151CDD-1#TRPBF LCXC 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4151IDD-1#PBF LTC4151IDD-1#TRPBF LCXC 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4151CMS#PBF LTC4151CMS#TRPBF LTCWY 10-Lead Plastic MSOP 0°C to 70°C LTC4151IMS#PBF LTC4151IMS#TRPBF LTCWY 10-Lead Plastic MSOP –40°C to 85°C LTC4151HMS#PBF LTC4151HMS#TRPBF LTCWY 10-Lead Plastic MSOP –40°C to 125°C LTC4151CMS-1#PBF LTC4151CMS-1#TRPBF LTCXB 10-Lead Plastic MSOP 0°C to 70°C LTC4151IMS-1#PBF LTC4151IMS-1#TRPBF LTCXB 10-Lead Plastic MSOP –40°C to 85°C LTC4151CS-2#PBF LTC4151CS-2#TRPBF LTC4151S-2 16-Lead Plastic SO 0°C to 70°C LTC4151IS-2#PBF LTC4151IS-2#TRPBF LTC4151S-2 16-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
e lecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN is from 7V to 80V, unless noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS General
VIN Supply Voltage l 7 80 V IIN Supply Current VIN = 48V, Normal Operation Mode l 1.2 1.7 mA VIN = 12V, Shutdown Mode l 120 300 µA ISENSE+ SENSE+ Input Current VIN, SENSE+, SENSE– = 48V l 5 9 µA ISENSE– SENSE– Input Current VIN, SENSE+, SENSE– = 48V l 0.1 1 µA VSHDN(TH) SHDN Input Threshold l 1 1.5 2 V ISHDN SHDN Input Current SHDN = 0V l –3 –5 –8 µA
