Datasheet AD8671, AD8672, AD8674 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Precision Low Noise, Low Input Bias Current, Quad Op Amp |
| Páginas / Página | 20 / 5 — Data Sheet. AD8671/AD8672/AD8674. ABSOLUTE MAXIMUM RATINGS Table 4.1. … |
| Revisión | F |
| Formato / tamaño de archivo | PDF / 443 Kb |
| Idioma del documento | Inglés |
Data Sheet. AD8671/AD8672/AD8674. ABSOLUTE MAXIMUM RATINGS Table 4.1. Parameter. Rating. Table 5. Package Characteristics
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 11 link to page 5 link to page 5

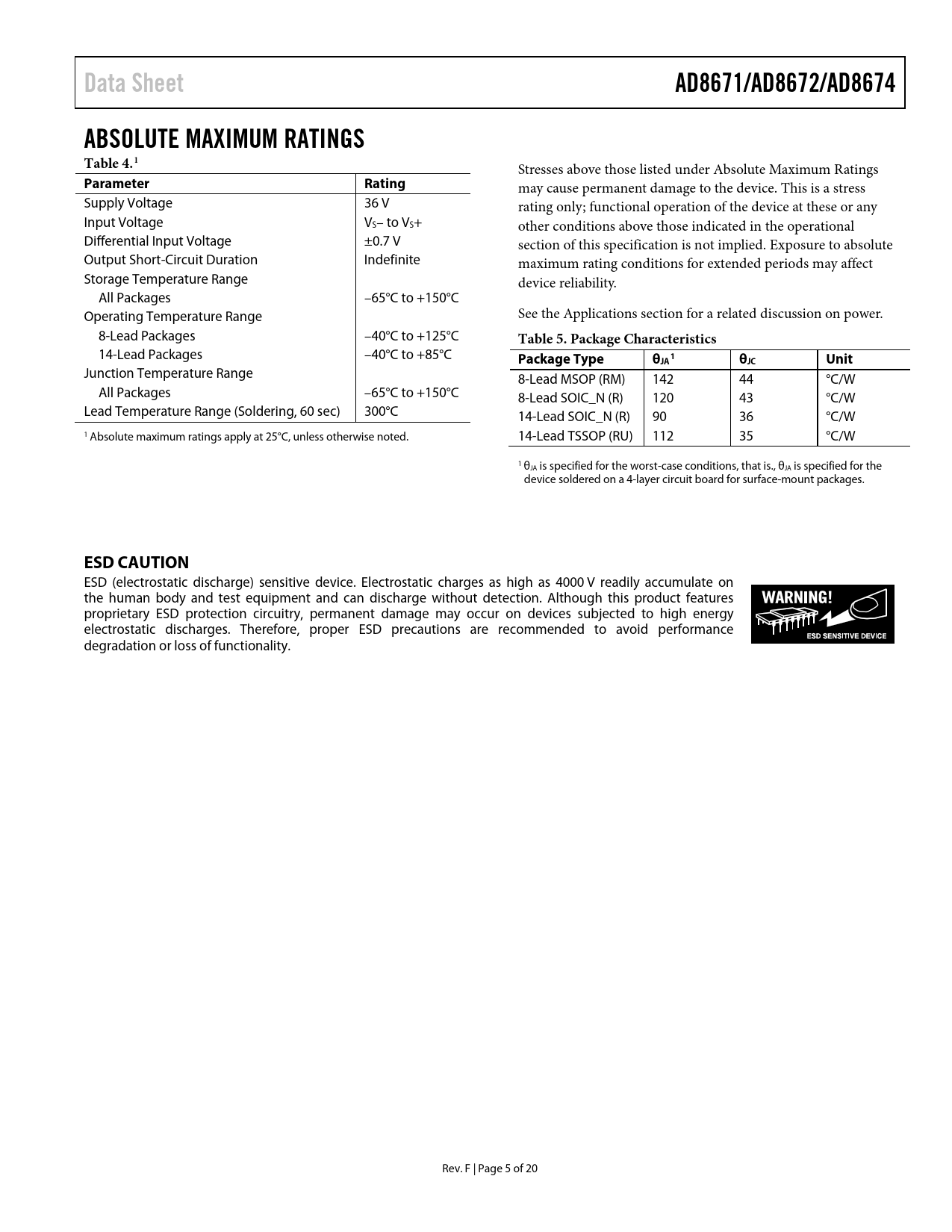

Data Sheet AD8671/AD8672/AD8674 ABSOLUTE MAXIMUM RATINGS Table 4.1
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage 36 V rating only; functional operation of the device at these or any Input Voltage VS– to VS+ other conditions above those indicated in the operational Differential Input Voltage ±0.7 V section of this specification is not implied. Exposure to absolute Output Short-Circuit Duration Indefinite maximum rating conditions for extended periods may affect Storage Temperature Range device reliability. All Packages –65°C to +150°C Operating Temperature Range See the Applications section for a related discussion on power. 8-Lead Packages –40°C to +125°C
Table 5. Package Characteristics
14-Lead Packages –40°C to +85°C
Package Type θ 1 JA θJC Unit
Junction Temperature Range 8-Lead MSOP (RM) 142 44 °C/W All Packages –65°C to +150°C 8-Lead SOIC_N (R) 120 43 °C/W Lead Temperature Range (Soldering, 60 sec) 300°C 14-Lead SOIC_N (R) 90 36 °C/W 1 Absolute maximum ratings apply at 25°C, unless otherwise noted. 14-Lead TSSOP (RU) 112 35 °C/W 1 θJA is specified for the worst-case conditions, that is., θJA is specified for the device soldered on a 4-layer circuit board for surface-mount packages.
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. F | Page 5 of 20 Document Outline Specifications Electrical Characteristics, ±5.0 V Electrical Characteristics, ±15 V Absolute Maximum Ratings ESD Caution Typical Performance Characteristics Applications Power Dissipation Calculations Unity-Gain Follower Applications Output Phase Reversal Total Noise vs. Source Resistance Total Harmonic Distortion (THD) and Noise Driving Capacitive Loads GPS Receiver Band-Pass Filter PLL Synthesizers and Loop Filters Outline Dimensions Ordering Guide
