VOM1271. APPLICATION DESCRIPTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
VOM1271

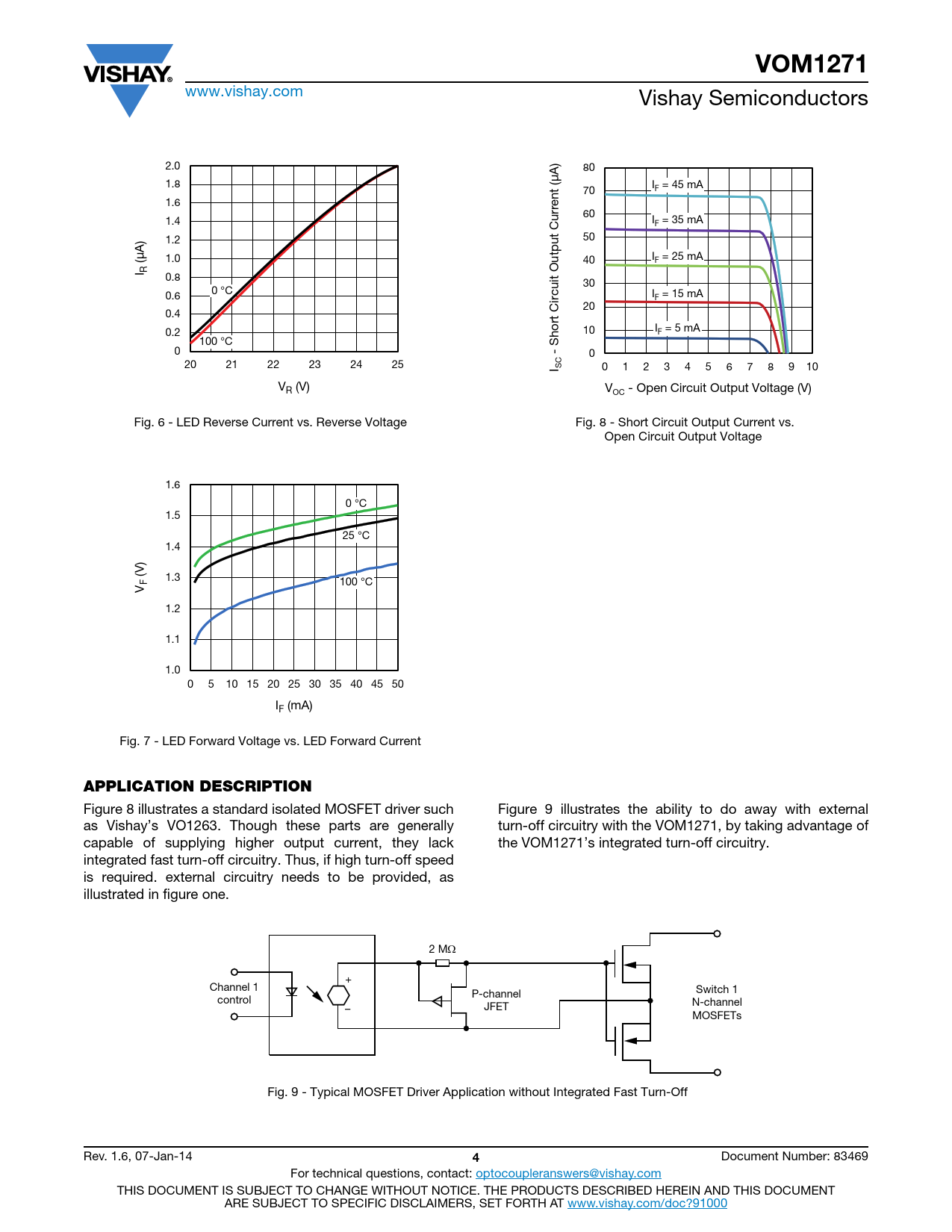

www.vishay.com Vishay Semiconductors 2.0 80 1.8 I = 45 mA 70 F 1.6 60 1.4 I = 35 mA Current (μA) F 1.2 50 ut tp I = 25 mA (μA) 1.0 u 40 F I R 0.8 t O 30 0 °C 0.6 rcui I = 15 mA F 20 0.4 0.2 10 hort Ci I = 5 mA F 100 °C S 0 - 0 20 21 22 23 24 25 CIS 0 1 2 3 4 5 6 7 8 9 10 VR (V) V - Open Circuit Output Voltage (V) OC Fig. 6 - LED Reverse Current vs. Reverse Voltage Fig. 8 - Short Circuit Output Current vs. Open Circuit Output Voltage 1.6 0 °C 1.5 25 °C 1.4 (V) 1.3 F 100 °C V 1.2 1.1 1.0 0 5 10 15 20 25 30 35 40 45 50 IF (mA) Fig. 7 - LED Forward Voltage vs. LED Forward Current
APPLICATION DESCRIPTION
Figure 8 illustrates a standard isolated MOSFET driver such Figure 9 illustrates the ability to do away with external as Vishay’s VO1263. Though these parts are generally turn-off circuitry with the VOM1271, by taking advantage of capable of supplying higher output current, they lack the VOM1271’s integrated turn-off circuitry. integrated fast turn-off circuitry. Thus, if high turn-off speed is required. external circuitry needs to be provided, as illustrated in figure one. 2 MΩ + Channel 1 P-channel Switch 1 control JFET N-channel – MOSFETs Fig. 9 - Typical MOSFET Driver Application without Integrated Fast Turn-Off Rev. 1.6, 07-Jan-14
