TS5A22362
SCDS364D – JUNE 2015 – REVISED MARCH 2018

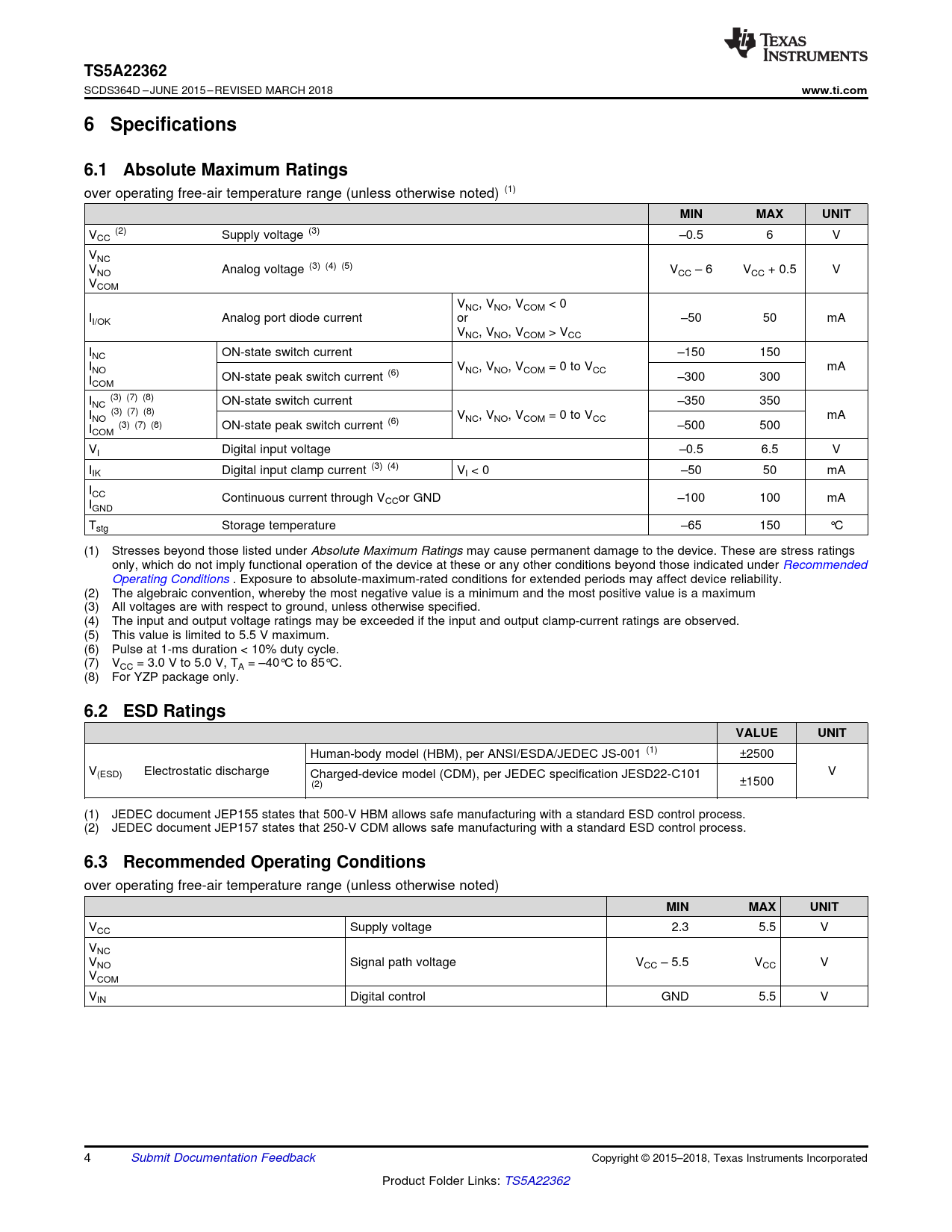

www.ti.com 6 Specifications 6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
MIN MAX UNIT
V (2) CC Supply voltage (3) –0.5 6 V VNC VNO Analog voltage (3) (4) (5) VCC – 6 VCC + 0.5 V VCOM VNC, VNO, VCOM < 0 II/OK Analog port diode current or –50 50 mA VNC, VNO, VCOM > VCC INC ON-state switch current –150 150 INO VNC, VNO, VCOM = 0 to VCC mA I ON-state peak switch current (6) –300 300 COM I (3) (7) (8) NC ON-state switch current –350 350 I (3) (7) (8) NO VNC, VNO, VCOM = 0 to VCC mA I (3) (7) (8) ON-state peak switch current (6) –500 500 COM VI Digital input voltage –0.5 6.5 V IIK Digital input clamp current (3) (4) VI < 0 –50 50 mA ICC Continuous current through V I CCor GND –100 100 mA GND Tstg Storage temperature –65 150 °C (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions . Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. (2) The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum (3) All voltages are with respect to ground, unless otherwise specified. (4) The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed. (5) This value is limited to 5.5 V maximum. (6) Pulse at 1-ms duration < 10% duty cycle. (7) VCC = 3.0 V to 5.0 V, TA = –40°C to 85°C. (8) For YZP package only.
6.2 ESD Ratings VALUE UNIT
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) ±2500 V(ESD) Electrostatic discharge V Charged-device model (CDM), per JEDEC specification JESD22-C101 (2) ±1500 (1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. (2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VCC Supply voltage 2.3 5.5 V VNC VNO Signal path voltage VCC – 5.5 VCC V VCOM VIN Digital control GND 5.5 V 4 Submit Documentation Feedback Copyright © 2015–2018, Texas Instruments Incorporated Product Folder Links: TS5A22362 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information 6.5 Electrical Characteristics for 2.5-V Supply 6.6 Electrical Characteristics for 3.3-V Supply 6.7 Electrical Characteristics for 5-V Supply 6.8 Typical Characteristics 7 Parameter Measurement Information 8 Detailed Description 8.1 Overview 8.2 Functional Block Diagram 8.3 Feature Description 8.3.1 Negative Signaling Capacity 8.4 Device Functional Modes 9 Application and Implementation 9.1 Application Information 9.2 Typical Application 9.2.1 Design Requirements 9.2.2 Detailed Design Procedure 9.2.3 Application Curve 10 Power Supply Recommendations 11 Layout 11.1 Layout Guidelines 11.2 Layout Example 12 Device and Documentation Support 12.1 Receiving Notification of Documentation Updates 12.2 Community Resources 12.3 Trademarks 12.4 Electrostatic Discharge Caution 12.5 Glossary 13 Mechanical, Packaging, and Orderable Information
