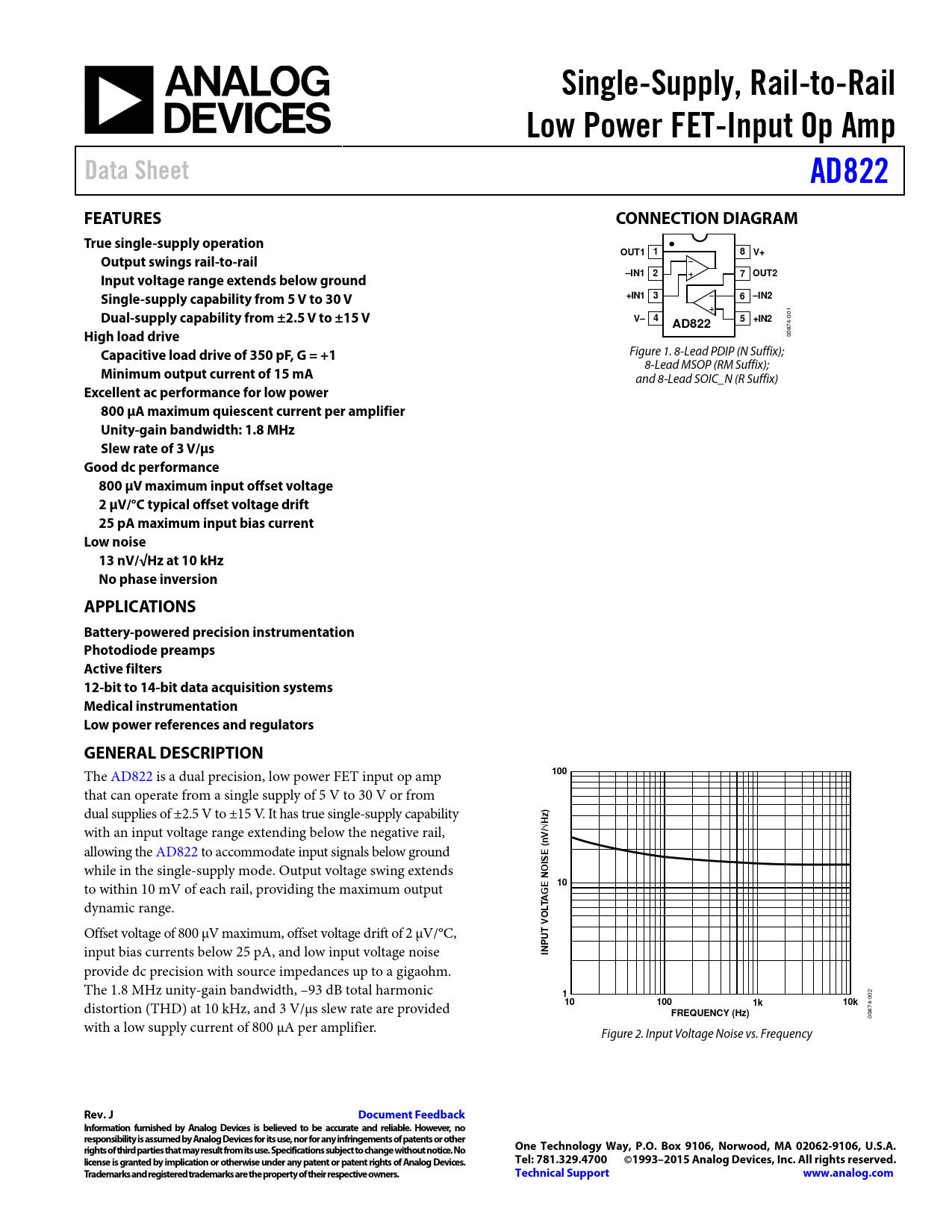

Single-Supply, Rail-to-Rail Low Power FET-Input Op Amp Data Sheet AD822 FEATURES CONNECTION DIAGRAM True single-supply operation OUT1 1 8 V+ Output swings rail-to-rail Input voltage range extends below ground –IN1 2 7 OUT2 Single-supply capability from 5 V to 30 V +IN1 3 6 –IN2 Dual-supply capability from ±2.5 V to ±15 V V– 4 5
001
AD822 +IN2 High load drive
00874-
Capacitive load drive of 350 pF, G = +1
Figure 1. 8-Lead PDIP (N Suffix); 8-Lead MSOP (RM Suffix);
Minimum output current of 15 mA
and 8-Lead SOIC_N (R Suffix)
Excellent ac performance for low power 800 µA maximum quiescent current per amplifier Unity-gain bandwidth: 1.8 MHz Slew rate of 3 V/μs Good dc performance 800 µV maximum input offset voltage 2 µV/°C typical offset voltage drift 25 pA maximum input bias current Low noise 13 nV/√Hz at 10 kHz No phase inversion APPLICATIONS Battery-powered precision instrumentation Photodiode preamps Active filters 12-bit to 14-bit data acquisition systems Medical instrumentation Low power references and regulators GENERAL DESCRIPTION
The AD822 is a dual precision, low power FET input op amp
100
that can operate from a single supply of 5 V to 30 V or from dual supplies of ±2.5 V to ±15 V. It has true single-supply capability
z) H
with an input voltage range extending below the negative rail,
/√
al owing the AD822 to accommodate input signals below ground
E (nV
while in the single-supply mode. Output voltage swing extends
OIS N
to within 10 mV of each rail, providing the maximum output
10 GE A
dynamic range.
LT O
Offset voltage of 800 µV maximum, offset voltage drift of 2 µV/°C,
V UT
input bias currents below 25 pA, and low input voltage noise
INP
provide dc precision with source impedances up to a gigaohm. The 1.8 MHz unity-gain bandwidth, –93 dB total harmonic
1
002 distortion (THD) at 10 kHz, and 3 V/µs slew rate are provided
10 100 1k 10k FREQUENCY (Hz)
00874- with a low supply current of 800 µA per amplifier. Figure 2. Input Voltage Noise vs. Frequency
