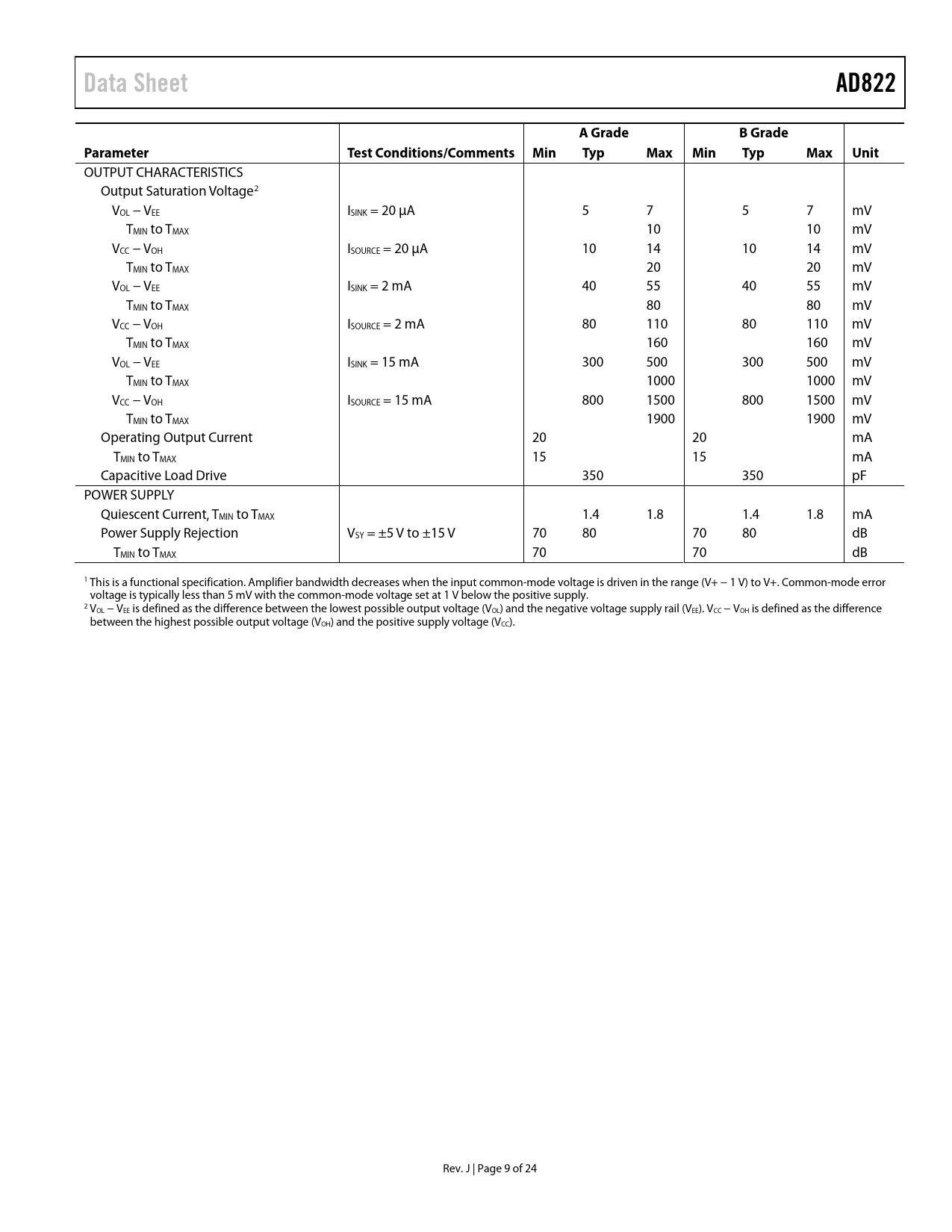

Data Sheet AD822 A Grade B Grade Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
OUTPUT CHARACTERISTICS Output Saturation Voltage2 VOL − VEE ISINK = 20 µA 5 7 5 7 mV TMIN to TMAX 10 10 mV VCC − VOH ISOURCE = 20 µA 10 14 10 14 mV TMIN to TMAX 20 20 mV VOL − VEE ISINK = 2 mA 40 55 40 55 mV TMIN to TMAX 80 80 mV VCC − VOH ISOURCE = 2 mA 80 110 80 110 mV TMIN to TMAX 160 160 mV VOL − VEE ISINK = 15 mA 300 500 300 500 mV TMIN to TMAX 1000 1000 mV VCC − VOH ISOURCE = 15 mA 800 1500 800 1500 mV TMIN to TMAX 1900 1900 mV Operating Output Current 20 20 mA TMIN to TMAX 15 15 mA Capacitive Load Drive 350 350 pF POWER SUPPLY Quiescent Current, TMIN to TMAX 1.4 1.8 1.4 1.8 mA Power Supply Rejection VSY = ±5 V to ±15 V 70 80 70 80 dB TMIN to TMAX 70 70 dB 1 This is a functional specification. Amplifier bandwidth decreases when the input common-mode voltage is driven in the range (V+ − 1 V) to V+. Common-mode error voltage is typically less than 5 mV with the common-mode voltage set at 1 V below the positive supply. 2 VOL − VEE is defined as the difference between the lowest possible output voltage (VOL) and the negative voltage supply rail (VEE). VCC − VOH is defined as the difference between the highest possible output voltage (VOH) and the positive supply voltage (VCC). Rev. J | Page 9 of 24 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION INPUT CHARACTERISTICS OUTPUT CHARACTERISTICS SINGLE-SUPPLY VOLTAGE TO FREQUENCY CONVERTER LOW DROPOUT BIPOLAR BRIDGE DRIVER OUTLINE DIMENSIONS ORDERING GUIDE
