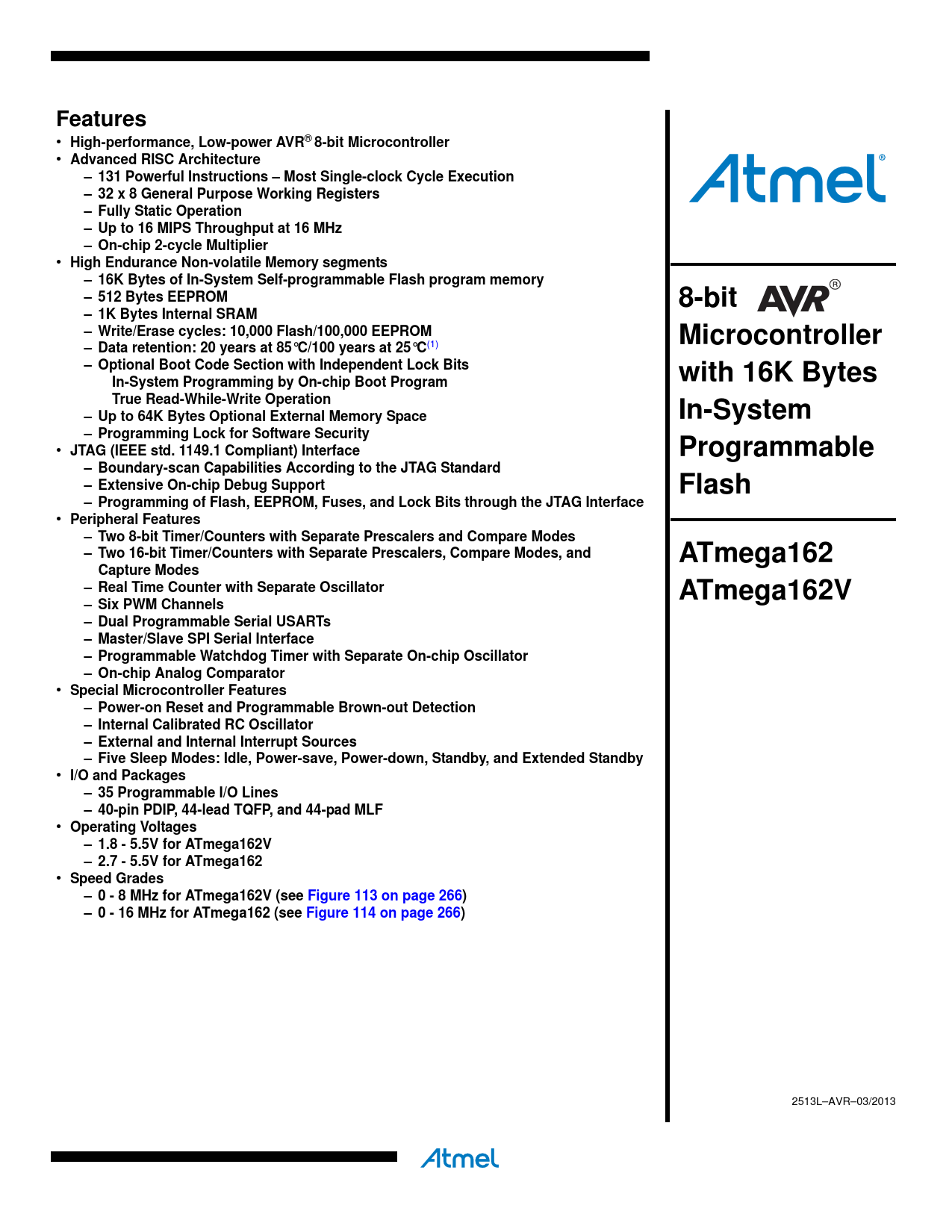

Features

High-performance, Low-power AVR
®
8-bit Microcontroller

Advanced RISC Architecture – 131 Powerful Instructions – Most Single-clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation – Up to 16 MIPS Throughput at 16 MHz – On-chip 2-cycle Multiplier

High Endurance Non-volatile Memory segments – 16K Bytes of In-System Self-programmable Flash program memory – 512 Bytes EEPROM 8-bit – 1K Bytes Internal SRAM – Write/Erase cycles: 10,000 Flash/100,000 EEPROM Microcontroller – Data retention: 20 years at 85°C/100 years at 25°C
(1)
– Optional Boot Code Section with Independent Lock Bits with 16K Bytes In-System Programming by On-chip Boot Program True Read-While-Write Operation – Up to 64K Bytes Optional External Memory Space In-System – Programming Lock for Software Security

JTAG (IEEE std. 1149.1 Compliant) Interface Programmable – Boundary-scan Capabilities According to the JTAG Standard – Extensive On-chip Debug Support Flash – Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

Peripheral Features – Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes – Two 16-bit Timer/Counters with Separate Prescalers, Compare Modes, and ATmega162 Capture Modes – Real Time Counter with Separate Oscillator ATmega162V – Six PWM Channels – Dual Programmable Serial USARTs – Master/Slave SPI Serial Interface – Programmable Watchdog Timer with Separate On-chip Oscillator – On-chip Analog Comparator

Special Microcontroller Features – Power-on Reset and Programmable Brown-out Detection – Internal Calibrated RC Oscillator – External and Internal Interrupt Sources – Five Sleep Modes: Idle, Power-save, Power-down, Standby, and Extended Standby

I/O and Packages – 35 Programmable I/O Lines – 40-pin PDIP, 44-lead TQFP, and 44-pad MLF

Operating Voltages – 1.8 - 5.5V for ATmega162V – 2.7 - 5.5V for ATmega162

Speed Grades – 0 - 8 MHz for ATmega162V (see Figure 113 on page 266) – 0 - 16 MHz for ATmega162 (see Figure 114 on page 266 )
