Pin. Figure 1. Configurations. Disclaimer. ATmega162/V

Pin Figure 1 Configurations Disclaimer ATmega162/V

Línea de modelo para esta hoja de datos

Versión de texto del documento

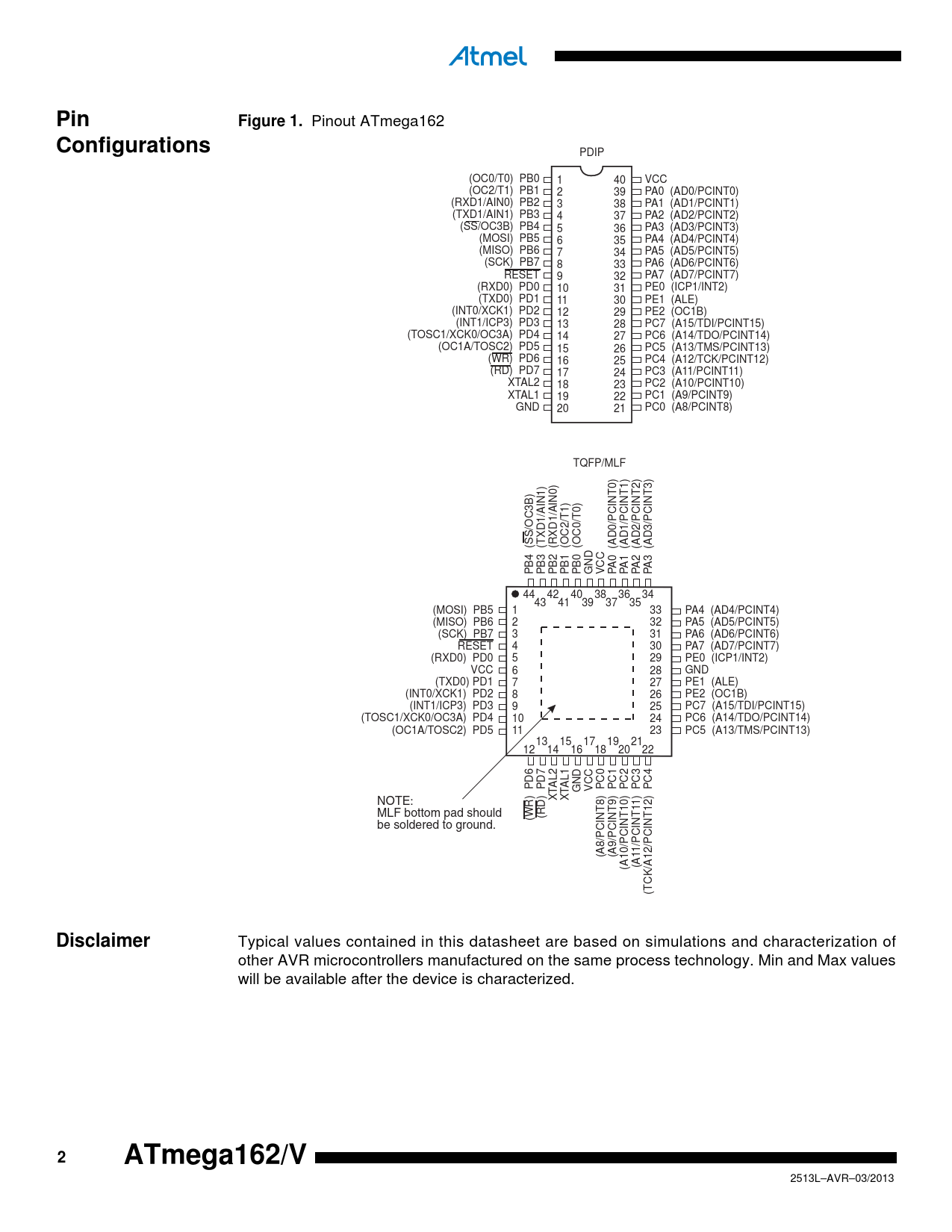

Pin Figure 1.
Pinout ATmega162
Configurations
PDIP (OC0/T0) PB0 1 40 VCC (OC2/T1) PB1 2 39 PA0 (AD0/PCINT0) (RXD1/AIN0) PB2 3 38 PA1 (AD1/PCINT1) (TXD1/AIN1) PB3 4 37 PA2 (AD2/PCINT2) (SS/OC3B) PB4 5 36 PA3 (AD3/PCINT3) (MOSI) PB5 6 35 PA4 (AD4/PCINT4) (MISO) PB6 7 34 PA5 (AD5/PCINT5) (SCK) PB7 8 33 PA6 (AD6/PCINT6) RESET 9 32 PA7 (AD7/PCINT7) (RXD0) PD0 10 31 PE0 (ICP1/INT2) (TXD0) PD1 11 30 PE1 (ALE) (INT0/XCK1) PD2 12 29 PE2 (OC1B) (INT1/ICP3) PD3 13 28 PC7 (A15/TDI/PCINT15) (TOSC1/XCK0/OC3A) PD4 14 27 PC6 (A14/TDO/PCINT14) (OC1A/TOSC2) PD5 15 26 PC5 (A13/TMS/PCINT13) (WR) PD6 16 25 PC4 (A12/TCK/PCINT12) (RD) PD7 17 24 PC3 (A11/PCINT11) XTAL2 18 23 PC2 (A10/PCINT10) XTAL1 19 22 PC1 (A9/PCINT9) GND 20 21 PC0 (A8/PCINT8) TQFP/MLF A0 (AD0/PCINT0) A1 (AD1/PCINT1) A2 (AD2/PCINT2) A3 (AD3/PCINT3) PB4 (SS/OC3B) PB3 (TXD1/AIN1) PB2 (RXD1/AIN0) PB1 (OC2/T1) PB0 (OC0/T0) GND VCC P P P P 44 42 40 38 36 34 43 41 39 37 35 (MOSI) PB5 1 33 PA4 (AD4/PCINT4) (MISO) PB6 2 32 PA5 (AD5/PCINT5) (SCK) PB7 3 31 PA6 (AD6/PCINT6) RESET 4 30 PA7 (AD7/PCINT7) (RXD0) PD0 5 29 PE0 (ICP1/INT2) VCC 6 28 GND (TXD0) PD1 7 27 PE1 (ALE) (INT0/XCK1) PD2 8 26 PE2 (OC1B) (INT1/ICP3) PD3 9 25 PC7 (A15/TDI/PCINT15) (TOSC1/XCK0/OC3A) PD4 10 24 PC6 (A14/TDO/PCINT14) (OC1A/TOSC2) PD5 11 23 PC5 (A13/TMS/PCINT13) 13 15 17 19 21 12 14 16 18 20 22 AL2 AL1 GND VCC XT XT NOTE: 1) PC3 MLF bottom pad should (WR) PD6 (RD) PD7 be soldered to ground. 1/PCINT1 (A8/PCINT8) PC0 (A9/PCINT9) PC1 (A10/PCINT10) PC2 (A1 (TCK/A12/PCINT12) PC4
Disclaimer
Typical values contained in this datasheet are based on simulations and characterization of other AVR microcontrollers manufactured on the same process technology. Min and Max values will be available after the device is characterized.
2 ATmega162/V
