Datasheet LND150 (Microchip) - 7
| Fabricante | Microchip |
| Descripción | N-Channel Depletion-Mode DMOS FET Features |
| Páginas / Página | 7 / 7 — LND150. 3-Lead TO-243AA (SOT-89) Package Outline (N8). Vqr"Xkgy. … |
| Formato / tamaño de archivo | PDF / 610 Kb |
| Idioma del documento | Inglés |
LND150. 3-Lead TO-243AA (SOT-89) Package Outline (N8). Vqr"Xkgy. Ukfg"Xkgy. Symbol. Drawings not to scale. Supertex Doc. #:
Línea de modelo para esta hoja de datos
Versión de texto del documento

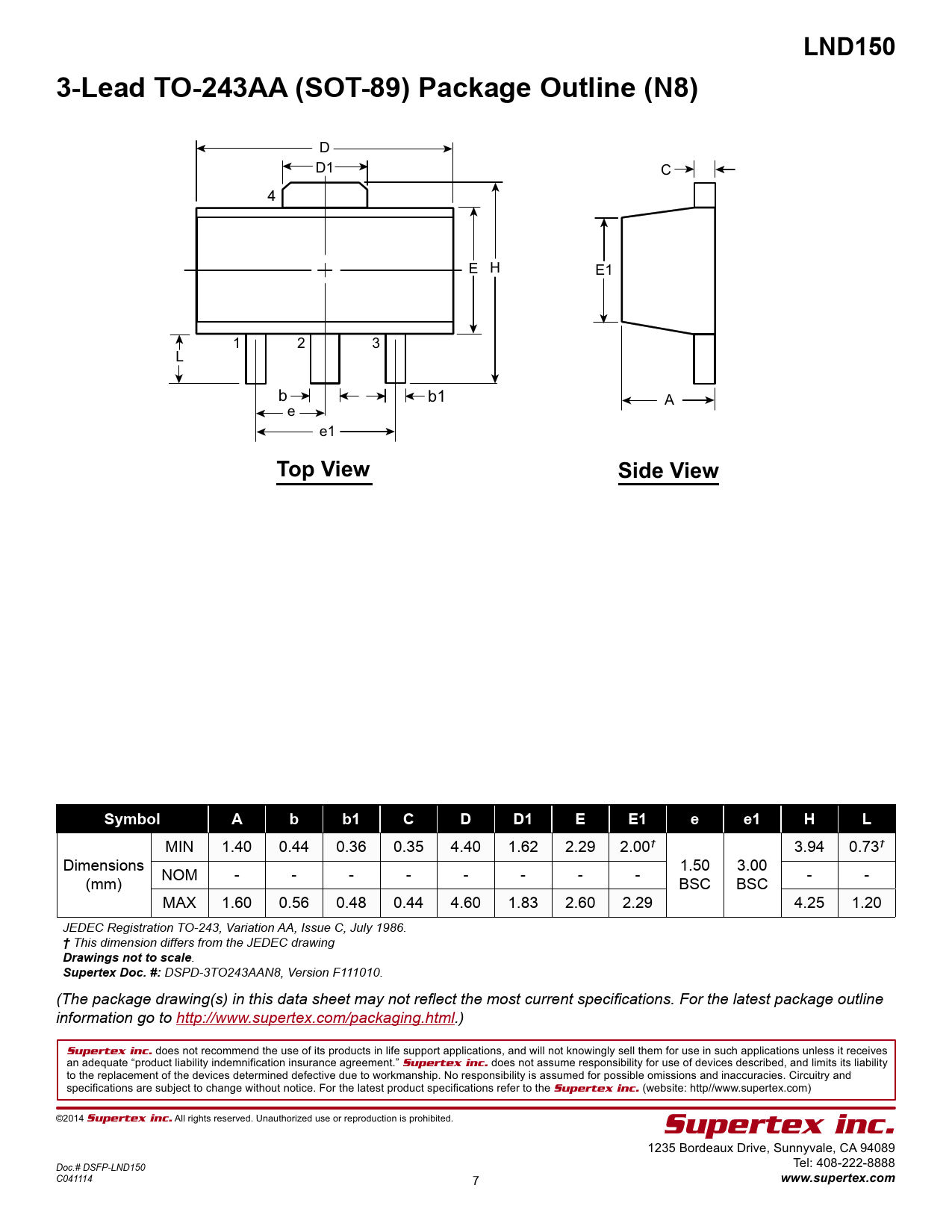

LND150 3-Lead TO-243AA (SOT-89) Package Outline (N8)
D D1 C E H E1 1 2 3 L b b1 A e e1
Vqr"Xkgy Ukfg"Xkgy Symbol A b b1 C D D1 E E1 e e1 H L
MIN 1.40 0.44 0.36 0.35 4.40 1.62 2.29 2.00
†
3.94 0.73
†
Dimensions 1.50 3.00 (mm) NOM - - - - - - - - BSC BSC - - MAX 1.60 0.56 0.48 0.44 4.60 1.83 2.60 2.29 4.25 1.20 JEDEC Registration TO-243, Variation AA, Issue C, July 1986.
†
This dimension differs from the JEDEC drawing
Drawings not to scale
.
Supertex Doc. #:
DSPD-3TO243AAN8, Version F111010. (The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information go to http://www.supertex.com/packaging.html.)
Supertex inc.
does not recommend the use of its products in life support applications, and will not knowingly sell them for use in such applications unless it receives an adequate “product liability indemnification insurance agreement.”
Supertex inc.
does not assume responsibility for use of devices described, and limits its liability to the replacement of the devices determined defective due to workmanship. No responsibility is assumed for possible omissions and inaccuracies. Circuitry and specifications are subject to change without notice. For the latest product specifications refer to the
Supertex inc.
(website: http//www.supertex.com) ©2014
Supertex inc.
All rights reserved. Unauthorized use or reproduction is prohibited.
Supertex inc.
1235 Bordeaux Drive, Sunnyvale, CA 94089 Tel: 408-222-8888 Doc.# DSFP-LND150 C041114 7
www.supertex.com
