Datasheet ISL28130, ISL28230, ISL28430 (Intersil) - 5

FabricanteIntersil
DescripciónSingle, Dual, and Quad Micropower, Low Drift, RRIO Operational Amplifiers
Páginas / Página19 / 5 — link. to. page. 6. link. to. page. 6. link. to. page. 5. link. to. page. …
Revisión2017-11-07
Formato / tamaño de archivoPDF / 1.3 Mb
Idioma del documentoInglés

link. to. page. 6. link. to. page. 6. link. to. page. 5. link. to. page. 5. link. to. page. 5. link. to. page. 5. link. to. page. 5. link. to. page. 5. link. to. page. 5. link. to. page. 5. link. to

link to page 6 link to page 6 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to

Línea de modelo para esta hoja de datos

Versión de texto del documento

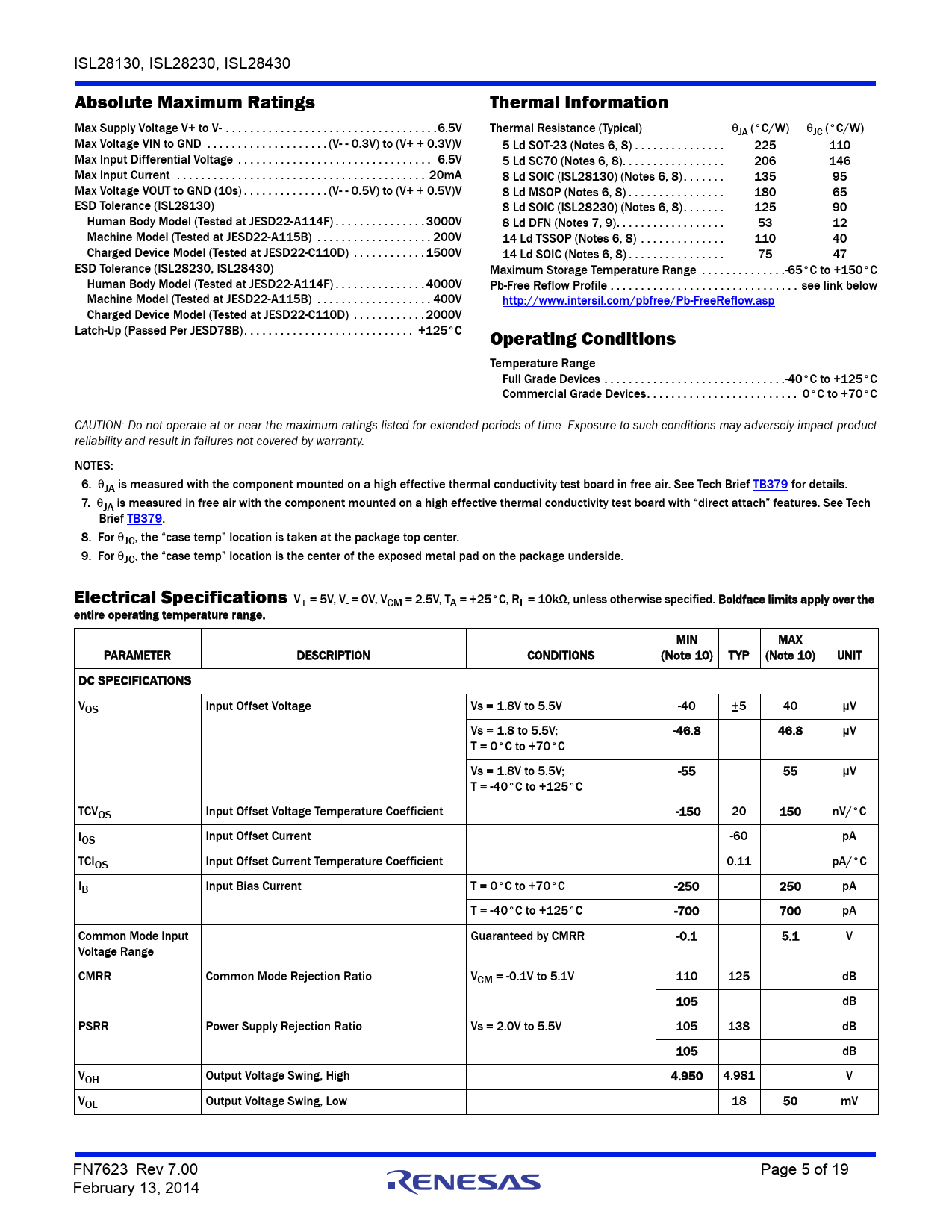

link to page 6 link to page 6 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 ISL28130, ISL28230, ISL28430 Absolute Maximum Ratings Thermal Information Max Supply Voltage V+ to V- . .6.5V Thermal Resistance (Typical) JA (°C/W) JC (°C/W) Max Voltage VIN to GND . (V- - 0.3V) to (V+ + 0.3V)V 5 Ld SOT-23 (Notes 6, 8) . 225 110 Max Input Differential Voltage . 6.5V 5 Ld SC70 (Notes 6, 8). 206 146 Max Input Current . 20mA 8 Ld SOIC (ISL28130) (Notes 6, 8). 135 95 Max Voltage VOUT to GND (10s) . (V- - 0.5V) to (V+ + 0.5V)V 8 Ld MSOP (Notes 6, 8) . 180 65 ESD Tolerance (ISL28130) 8 Ld SOIC (ISL28230) (Notes 6, 8). 125 90 Human Body Model (Tested at JESD22-A114F) . 3000V 8 Ld DFN (Notes 7, 9). 53 12 Machine Model (Tested at JESD22-A115B) . 200V 14 Ld TSSOP (Notes 6, 8) . 110 40 Charged Device Model (Tested at JESD22-C110D) . 1500V 14 Ld SOIC (Notes 6, 8) . 75 47 ESD Tolerance (ISL28230, ISL28430) Maximum Storage Temperature Range . .-65°C to +150°C Human Body Model (Tested at JESD22-A114F) . 4000V Pb-Free Reflow Profile . see link below Machine Model (Tested at JESD22-A115B) . 400V http://www.intersil.com/pbfree/Pb-FreeReflow.asp Charged Device Model (Tested at JESD22-C110D) . 2000V Latch-Up (Passed Per JESD78B). +125°C Operating Conditions Temperature Range Full Grade Devices . .-40°C to +125°C Commercial Grade Devices. 0°C to +70°C CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product reliability and result in failures not covered by warranty. NOTES: 6. JA is measured with the component mounted on a high effective thermal conductivity test board in free air. See Tech Brief TB379 for details. 7. JA is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features. See Tech Brief TB379. 8. For JC, the “case temp” location is taken at the package top center. 9. For JC, the “case temp” location is the center of the exposed metal pad on the package underside. Electrical Specifications V+ = 5V, V- = 0V, VCM = 2.5V, TA = +25°C, RL = 10kΩ, unless otherwise specified. Boldface limits apply over the entire operating temperature range. MIN MAX PARAMETER DESCRIPTION CONDITIONS (Note 10) TYP (Note 10) UNIT DC SPECIFICATIONS VOS Input Offset Voltage Vs = 1.8V to 5.5V -40 ±5 40 µV Vs = 1.8 to 5.5V; -46.8 46.8 µV T = 0°C to +70°C Vs = 1.8V to 5.5V; -55 55 µV T = -40°C to +125°C TCVOS Input Offset Voltage Temperature Coefficient -150 20 150 nV/°C IOS Input Offset Current -60 pA TCIOS Input Offset Current Temperature Coefficient 0.11 pA/°C IB Input Bias Current T = 0°C to +70°C -250 250 pA T = -40°C to +125°C -700 700 pA Common Mode Input Guaranteed by CMRR -0.1 5.1 V Voltage Range CMRR Common Mode Rejection Ratio VCM = -0.1V to 5.1V 110 125 dB 105 dB PSRR Power Supply Rejection Ratio Vs = 2.0V to 5.5V 105 138 dB 105 dB VOH Output Voltage Swing, High 4.950 4.981 V VOL Output Voltage Swing, Low 18 50 mV FN7623 Rev 7.00 Page 5 of 19 February 13, 2014
