Descripción36-V, Low-Power, Low Offset Voltage, Rail-to-Rail Operational Amplifier
Páginas / Página49 / 3 — OPA196. , OPA2196. , OPA4196. www.ti.com. 5 Pin Configuration and …
Formato / tamaño de archivoPDF / 3.4 Mb
Idioma del documentoInglés

OPA196. , OPA2196. , OPA4196. www.ti.com. 5 Pin Configuration and Functions. DBV Package: OPA196. D and DGK Packages: OPA2196

OPA196 , OPA2196 , OPA4196 www.ti.com 5 Pin Configuration and Functions DBV Package: OPA196 D and DGK Packages: OPA2196

Línea de modelo para esta hoja de datos

Versión de texto del documento

OPA196 , OPA2196 , OPA4196 www.ti.com
SBOS869 – JULY 2017

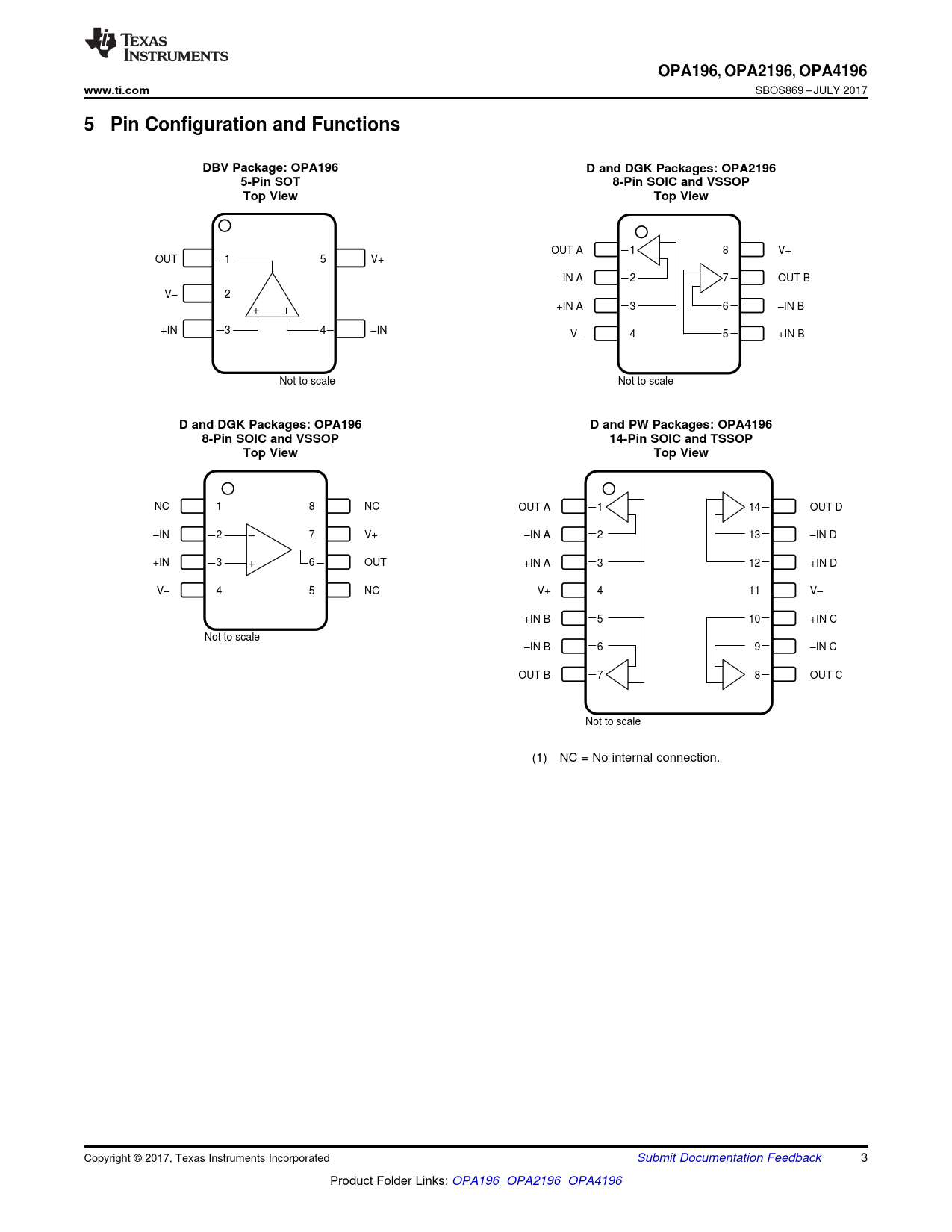

5 Pin Configuration and Functions DBV Package: OPA196 D and DGK Packages: OPA2196 5-Pin SOT 8-Pin SOIC and VSSOP Top View Top View
OUT A 1 8 V+ OUT 1 5 V+ ±IN A 2 7 OUT B V± 2 + ± +IN A 3 6 ±IN B +IN 3 4 ±IN V± 4 5 +IN B Not to scale Not to scale
D and DGK Packages: OPA196 D and PW Packages: OPA4196 8-Pin SOIC and VSSOP 14-Pin SOIC and TSSOP Top View Top View
NC 1 8 NC OUT A 1 14 OUT D ±IN 2 ± 7 V+ ±IN A 2 13 ±IN D +IN 3 + 6 OUT +IN A 3 12 +IN D V± 4 5 NC V+ 4 11 V± +IN B 5 10 +IN C Not to scale ±IN B 6 9 ±IN C OUT B 7 8 OUT C Not to scale (1) NC = No internal connection. Copyright © 2017, Texas Instruments Incorporated Submit Documentation Feedback 3 Product Folder Links: OPA196 OPA2196 OPA4196 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information: OPA196 6.5 Thermal Information: OPA2196 6.6 Thermal Information: OPA4196 6.7 Electrical Characteristics: VS = ±4 V to ±18 V (VS = 8 V to 36 V) 6.8 Electrical Characteristics: VS = ±2.25 V to ±4 V (VS = 4.5 V to 8 V) 6.9 Typical Characteristics 7 Detailed Description 7.1 Overview 7.2 Functional Block Diagram 7.3 Feature Description 7.3.1 Input Protection Circuitry 7.3.2 EMI Rejection 7.3.3 Phase Reversal Protection 7.3.4 Thermal Protection 7.3.5 Capacitive Load and Stability 7.3.6 Common-Mode Voltage Range 7.3.7 Electrical Overstress 7.3.8 Overload Recovery 7.4 Device Functional Modes 8 Application and Implementation 8.1 Application Information 8.2 Typical Applications 8.2.1 Low-side Current Measurement 8.2.1.1 Design Requirements 8.2.1.2 Detailed Design Procedure 8.2.1.3 Application Curves 8.2.2 16-Bit Precision Multiplexed Data-Acquisition System 8.2.2.1 Design Requirements 8.2.2.2 Detailed Design Procedure 8.2.3 Slew Rate Limit for Input Protection 9 Power-Supply Recommendations 10 Layout 10.1 Layout Guidelines 10.2 Layout Example 11 Device and Documentation Support 11.1 Device Support 11.1.1 Development Support 11.1.1.1 TINA-TI (Free Software Download) 11.1.1.2 TI Precision Designs 11.2 Documentation Support 11.2.1 Related Documentation 11.3 Related Links 11.4 Receiving Notification of Documentation Updates 11.5 Community Resources 11.6 Trademarks 11.7 Electrostatic Discharge Caution 11.8 Glossary 12 Mechanical, Packaging, and Orderable Information
