Datasheet LT3061 (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | 45V VIN, Micropower, Low Noise, 100mA LDO with Active Output Discharge |
| Páginas / Página | 22 / 10 — TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. … |
| Formato / tamaño de archivo | PDF / 1.7 Mb |
| Idioma del documento | Inglés |
TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Start-Up Time. vs REF/BYP Capacitor
Línea de modelo para esta hoja de datos
- LT3061EDCB#PBF LT3061EDCB#TRMPBF LT3061EDCB#TRPBF LT3061EDCB-3.3#PBF LT3061EDCB-3.3#TRMPBF LT3061EDCB-3.3#TRPBF LT3061EDCB-5#PBF LT3061EDCB-5#TRMPBF LT3061EDCB-5#TRPBF LT3061EMS8E#PBF LT3061EMS8E#TRPBF LT3061EMS8E-3.3#PBF LT3061EMS8E-3.3#TRPBF LT3061EMS8E-5#PBF LT3061EMS8E-5#TRPBF LT3061HDCB#PBF LT3061HDCB#TRMPBF LT3061HDCB#TRPBF LT3061HMS8E#PBF LT3061HMS8E#TRPBF LT3061IDCB#PBF LT3061IDCB#TRMPBF LT3061IDCB#TRPBF LT3061IDCB-3.3#PBF LT3061IDCB-3.3#TRMPBF LT3061IDCB-3.3#TRPBF LT3061IDCB-5#PBF LT3061IDCB-5#TRMPBF LT3061IDCB-5#TRPBF LT3061IMS8E#PBF LT3061IMS8E#TRPBF LT3061IMS8E-3.3#PBF LT3061IMS8E-3.3#TRPBF LT3061IMS8E-5#PBF LT3061IMS8E-5#TRPBF LT3061MPDCB#PBF LT3061MPDCB#TR LT3061MPDCB#TRMPBF LT3061MPDCB#TRPBF LT3061MPMS8E#PBF LT3061MPMS8E#TRPBF
- LT3061EDCB#TRMPBF LT3061EDCB#TRPBF LT3061EDCB-3.3#TRMPBF LT3061EDCB-3.3#TRPBF LT3061EDCB-5#TRMPBF LT3061EDCB-5#TRPBF LT3061EMS8E#PBF LT3061EMS8E#TRPBF LT3061EMS8E-3.3#PBF LT3061EMS8E-3.3#TRPBF LT3061EMS8E-5#PBF LT3061EMS8E-5#TRPBF LT3061HDCB#TRMPBF LT3061HDCB#TRPBF LT3061HMS8E#PBF LT3061HMS8E#TRPBF LT3061IDCB#TRMPBF LT3061IDCB#TRPBF LT3061IDCB-3.3#TRMPBF LT3061IDCB-3.3#TRPBF LT3061IDCB-5#TRMPBF LT3061IDCB-5#TRPBF LT3061IMS8E#PBF LT3061IMS8E#TRPBF LT3061IMS8E-3.3#PBF LT3061IMS8E-3.3#TRPBF LT3061IMS8E-5#PBF LT3061IMS8E-5#TRPBF LT3061MPDCB#TRMPBF LT3061MPDCB#TRPBF LT3061MPMS8E#PBF LT3061MPMS8E#TRPBF
Versión de texto del documento
LT3061 Series

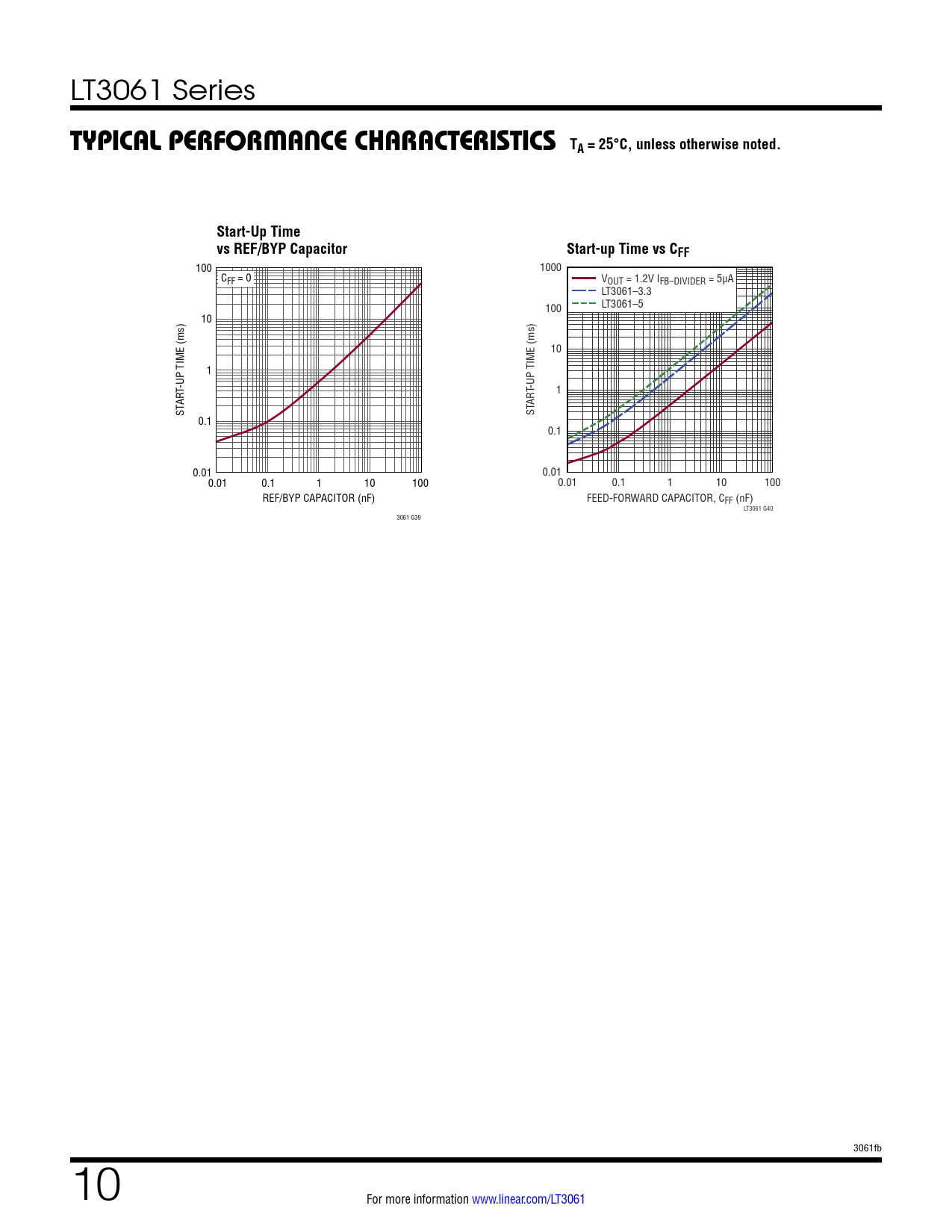

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Start-Up Time vs REF/BYP Capacitor Start-up Time vs CFF
100 1000 CFF = 0 VOUT = 1.2V IFB–DIVIDER = 5µA LT3061–3.3 LT3061–5 100 10 10 1 T-UP TIME (ms) T-UP TIME (ms) 1 AR AR ST ST 0.1 0.1 0.01 0.01 0.01 0.1 1 10 100 0.01 0.1 1 10 100 REF/BYP CAPACITOR (nF) FEED-FORWARD CAPACITOR, CFF (nF) LT3061 G40 3061 G39 3061fb 10 For more information www.linear.com/LT3061
