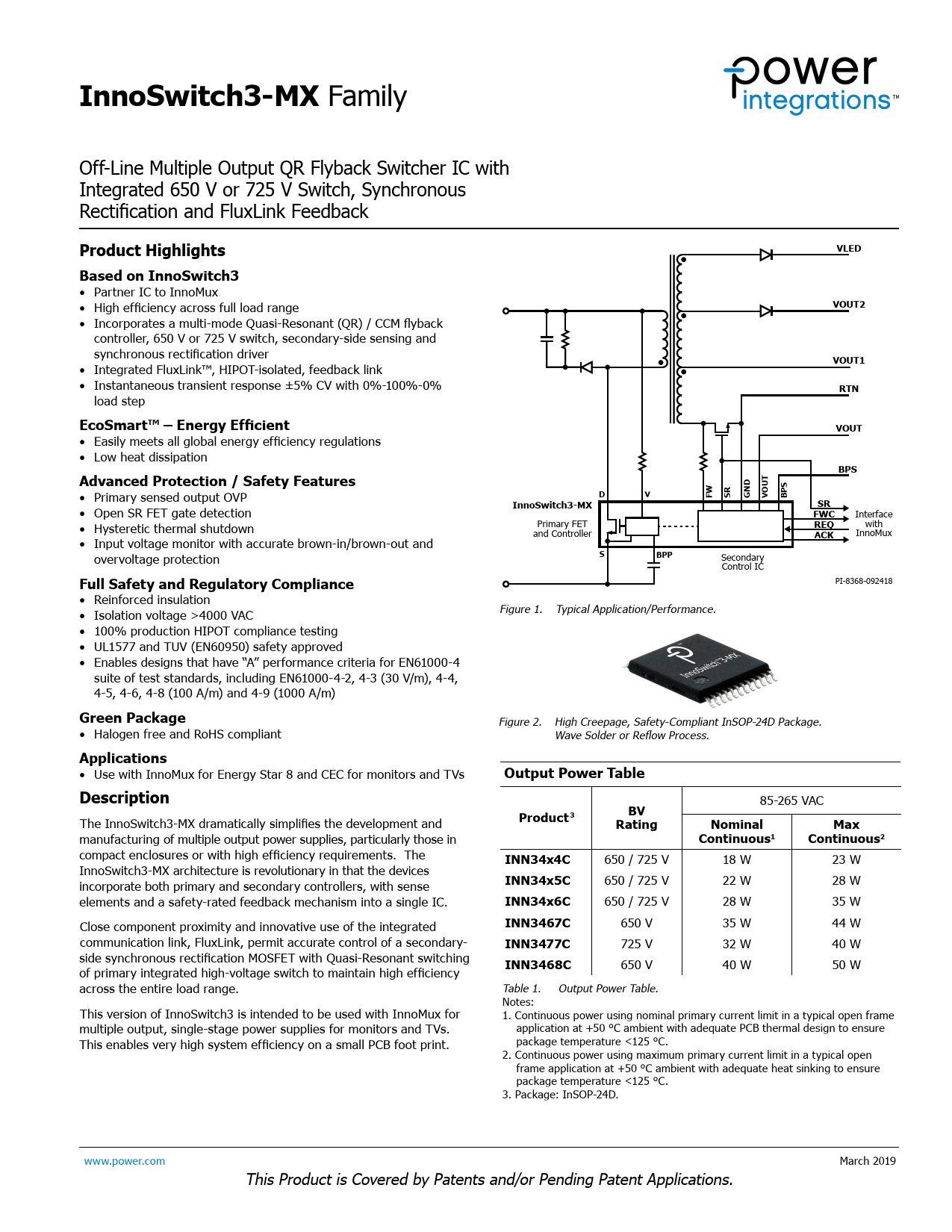

InnoSwitch3-MX. Product Highlights. VLED. Based on InnoSwitch3. VOUT2. VOUT1. RTN. EcoSmart™ – Energy Efficient. VOUT. BPS

Datasheet InnoSwitch3-MX Power Integrations

Línea de modelo para esta hoja de datos

Versión de texto del documento

InnoSwitch3-MX
Family Off-Line Multiple Output QR Flyback Switcher IC with Integrated 650 V or 725 V Switch, Synchronous Rectification and FluxLink Feedback
Product Highlights VLED Based on InnoSwitch3
• Partner IC to InnoMux • High efficiency across full load range
VOUT2
• Incorporates a multi-mode Quasi-Resonant (QR) / CCM flyback control er, 650 V or 725 V switch, secondary-side sensing and synchronous rectification driver
VOUT1
• Integrated FluxLink™, HIPOT-isolated, feedback link • Instantaneous transient response ±5% CV with 0%-100%-0%
RTN
load step
EcoSmart™ – Energy Efficient VOUT
• Easily meets all global energy efficiency regulations • Low heat dissipation
BPS Advanced Protection / Safety Features
• Primary sensed output OVP
D V FW SR GND VOUT BPS InnoSwitch3-MX SR
• Open SR FET gate detection
FWC
Interface • Hysteretic thermal shutdown Primary FET
REQ
with and Controller
ACK
InnoMux • Input voltage monitor with accurate brown-in/brown-out and overvoltage protection
S BPP
Secondary Control IC
Full Safety and Regulatory Compliance
PI-8368-092418 • Reinforced insulation • Isolation voltage >4000 VAC Figure 1. Typical Application/Performance. • 100% production HIPOT compliance testing • UL1577 and TUV (EN60950) safety approved • Enables designs that have “A” performance criteria for EN61000-4 suite of test standards, including EN61000-4-2, 4-3 (30 V/m), 4-4, 4-5, 4-6, 4-8 (100 A/m) and 4-9 (1000 A/m)
Green Package
Figure 2. High Creepage, Safety-Compliant InSOP-24D Package. • Halogen free and RoHS compliant Wave Solder or Reflow Process.
Applications
• Use with InnoMux for Energy Star 8 and CEC for monitors and TVs
