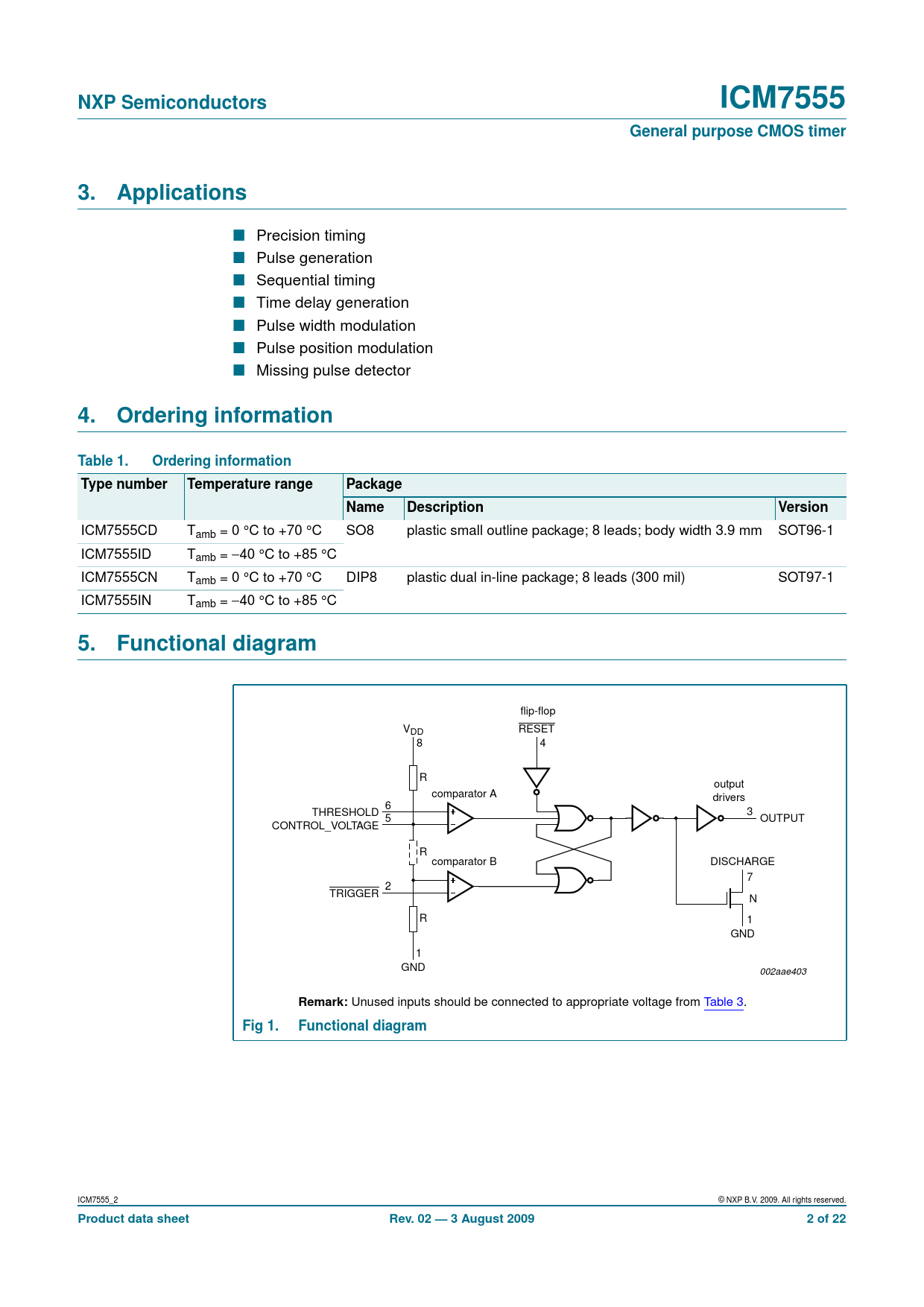

NXP Semiconductors ICM7555 General purpose CMOS timer 3. Applications
n Precision timing n Pulse generation n Sequential timing n Time delay generation n Pulse width modulation n Pulse position modulation n Missing pulse detector
4. Ordering information Table 1. Ordering information Type number Temperature range Package Name Description Version
ICM7555CD Tamb = 0 °C to +70 °C SO8 plastic small outline package; 8 leads; body width 3.9 mm SOT96-1 ICM7555ID Tamb = −40 °C to +85 °C ICM7555CN Tamb = 0 °C to +70 °C DIP8 plastic dual in-line package; 8 leads (300 mil) SOT97-1 ICM7555IN Tamb = −40 °C to +85 °C
5. Functional diagram
flip-flop V RESET DD 8 4 R output comparator A drivers 6 THRESHOLD 3 5 OUTPUT CONTROL_VOLTAGE R comparator B DISCHARGE 7 2 TRIGGER N R 1 GND 1 GND 002aae403
Remark:
Unused inputs should be connected to appropriate voltage from Table 3.
Fig 1. Functional diagram
ICM7555_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 3 August 2009 2 of 22
