NXP Semiconductors. ICM7555. General purpose CMOS timer. Pinning information. 6.1 Pinning. ICM7555CD. ICM7555CN. ICM7555ID. ICM7555IN
Línea de modelo para esta hoja de datos
ICM7555
Versión de texto del documento
link to page 3 link to page 2

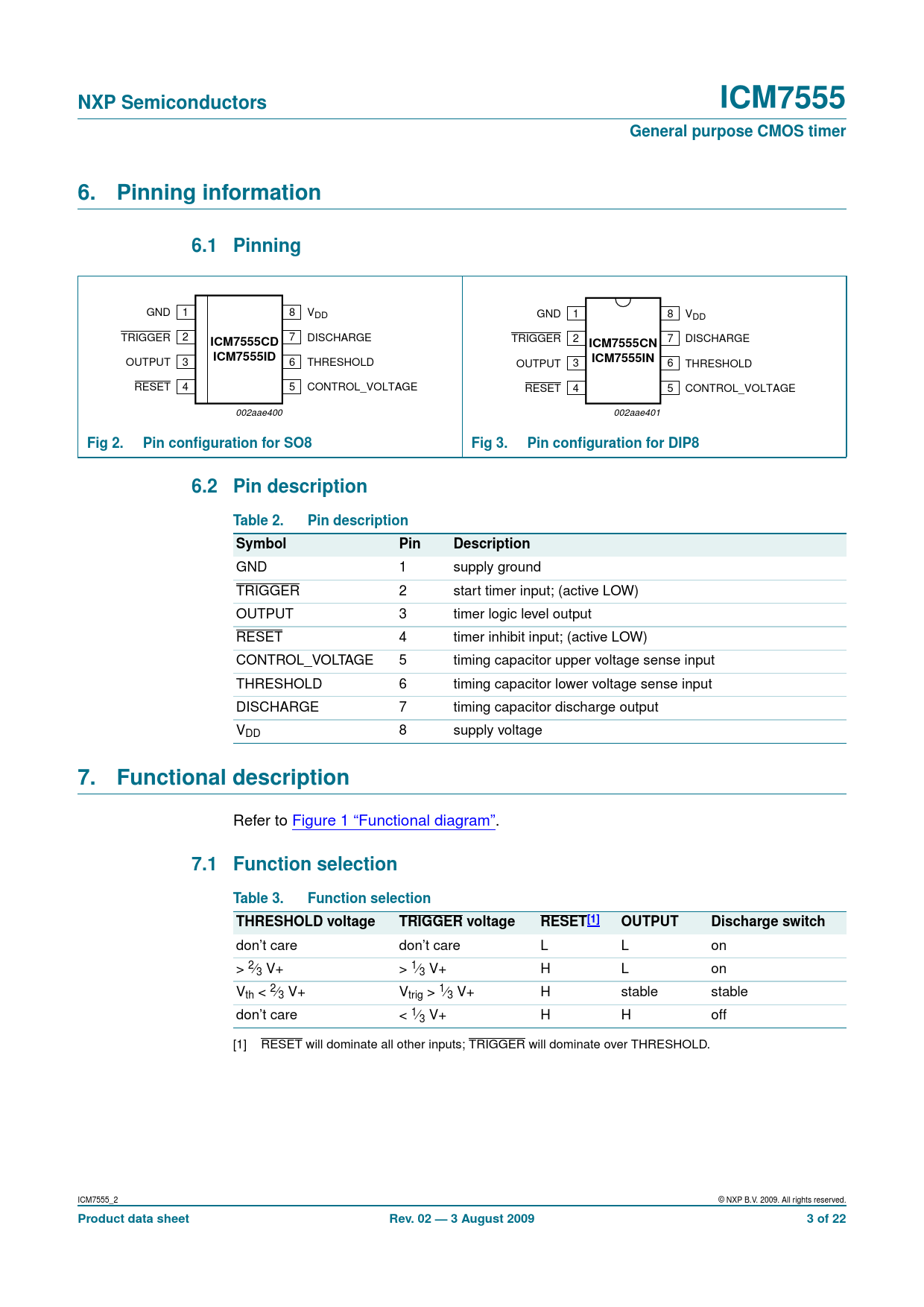

NXP Semiconductors ICM7555 General purpose CMOS timer 6. Pinning information 6.1 Pinning
GND 1 8 VDD GND 1 8 VDD TRIGGER 2 7 DISCHARGE
ICM7555CD
TRIGGER 2
ICM7555CN
7 DISCHARGE
ICM7555ID
OUTPUT 3 6 THRESHOLD
ICM7555IN
OUTPUT 3 6 THRESHOLD RESET 4 5 CONTROL_VOLTAGE RESET 4 5 CONTROL_VOLTAGE 002aae400 002aae401
Fig 2. Pin configuration for SO8 Fig 3. Pin configuration for DIP8 6.2 Pin description Table 2. Pin description Symbol Pin Description
GND 1 supply ground TRIGGER 2 start timer input; (active LOW) OUTPUT 3 timer logic level output RESET 4 timer inhibit input; (active LOW) CONTROL_VOLTAGE 5 timing capacitor upper voltage sense input THRESHOLD 6 timing capacitor lower voltage sense input DISCHARGE 7 timing capacitor discharge output VDD 8 supply voltage
7. Functional description
Refer to Figure 1 “Functional diagram”.
7.1 Function selection Table 3. Function selection THRESHOLD voltage TRIGGER voltage RESET[1] OUTPUT Discharge switch
don’t care don’t care L L on > 2⁄3 V+ > 1⁄3 V+ H L on Vth < 2⁄3 V+ Vtrig > 1⁄3 V+ H stable stable don’t care < 1⁄3 V+ H H off [1] RESET will dominate all other inputs; TRIGGER will dominate over THRESHOLD. ICM7555_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 3 August 2009 3 of 22
