Datasheet 24C01C (Microchip)

FabricanteMicrochip
Descripción1K 5.0V I2C Serial EEPROM
Páginas / Página36 / 1 — 24C01C. 1K 5.0V I2C™ Serial EEPROM. Features:. Description:. Block …
Formato / tamaño de archivoPDF / 981 Kb
Idioma del documentoInglés

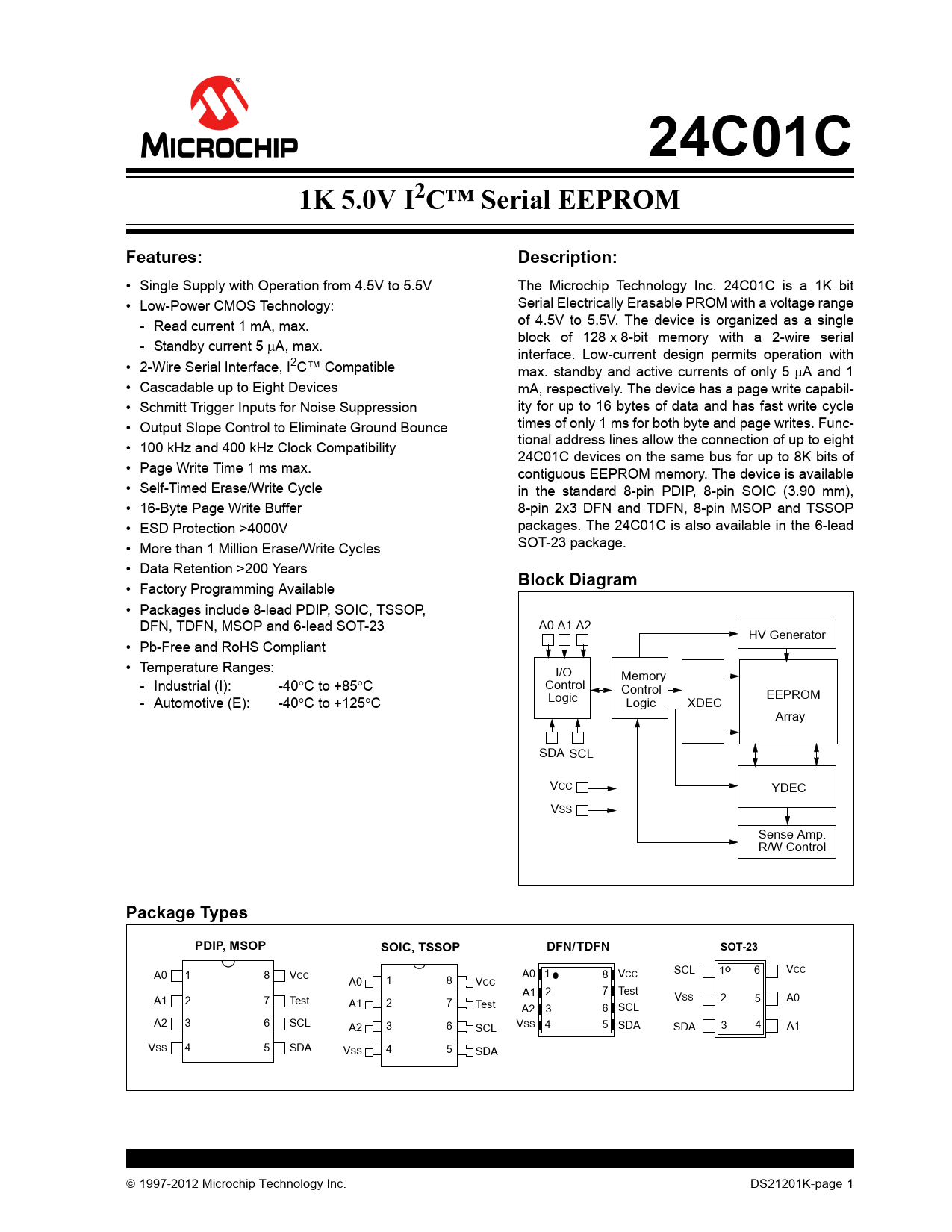

24C01C. 1K 5.0V I2C™ Serial EEPROM. Features:. Description:. Block Diagram. Package Types. PDIP, MSOP. SOIC, TSSOP. DFN/TDFN. SOT-23

Datasheet 24C01C Microchip

Línea de modelo para esta hoja de datos

Versión de texto del documento

24C01C 1K 5.0V I2C™ Serial EEPROM Features: Description:
• Single Supply with Operation from 4.5V to 5.5V The Microchip Technology Inc. 24C01C is a 1K bit • Low-Power CMOS Technology: Serial Electrically Erasable PROM with a voltage range - Read current 1 mA, max. of 4.5V to 5.5V. The device is organized as a single block of 128 x 8-bit memory with a 2-wire serial - Standby current 5 A, max. interface. Low-current design permits operation with • 2-Wire Serial Interface, I2C™ Compatible max. standby and active currents of only 5 A and 1 • Cascadable up to Eight Devices mA, respectively. The device has a page write capabil- • Schmitt Trigger Inputs for Noise Suppression ity for up to 16 bytes of data and has fast write cycle • Output Slope Control to Eliminate Ground Bounce times of only 1 ms for both byte and page writes. Func- tional address lines allow the connection of up to eight • 100 kHz and 400 kHz Clock Compatibility 24C01C devices on the same bus for up to 8K bits of • Page Write Time 1 ms max. contiguous EEPROM memory. The device is available • Self-Timed Erase/Write Cycle in the standard 8-pin PDIP, 8-pin SOIC (3.90 mm), • 16-Byte Page Write Buffer 8-pin 2x3 DFN and TDFN, 8-pin MSOP and TSSOP • ESD Protection >4000V packages. The 24C01C is also available in the 6-lead • More than 1 Million Erase/Write Cycles SOT-23 package. • Data Retention >200 Years
Block Diagram
• Factory Programming Available • Packages include 8-lead PDIP, SOIC, TSSOP, DFN, TDFN, MSOP and 6-lead SOT-23 A0 A1 A2 HV Generator • Pb-Free and RoHS Compliant • Temperature Ranges: I/O Memory - Industrial (I): -40C to +85C Control Control EEPROM - Automotive (E): -40C to +125C Logic Logic XDEC Array SDA SCL VCC YDEC VSS Sense Amp. R/W Control
Package Types PDIP, MSOP SOIC, TSSOP DFN/TDFN SOT-23
A0 1 8 V SCL 1 6 VCC CC A0 1 8 VCC A0 1 8 VCC A1 2 7 Test A1 2 7 Test VSS 2 5 A0 A1 2 7 Test A2 3 6 SCL A2 3 6 SCL A2 3 6 SCL VSS 4 5 SDA SDA 3 4 A1 VSS 4 5 SDA VSS 4 5 SDA  1997-2012 Microchip Technology Inc. DS21201K-page 1 Document Outline 24C01C Features: Description: Block Diagram Package Types 1.0 Electrical Characteristics Absolute Maximum Ratings(†) TABLE 1-1: DC Characteristics TABLE 1-2: AC Characteristics FIGURE 1-1: Bus Timing Data 2.0 Pin Descriptions TABLE 2-1: Pin Function Table 2.1 SDA Serial Data 2.2 SCL Serial Clock 2.3 A0, A1, A2 2.4 Test 2.5 Noise Protection 3.0 Functional Description 4.0 Bus Characteristics 4.1 Bus Not Busy (A) 4.2 Start Data Transfer (B) 4.3 Stop Data Transfer (C) 4.4 Data Valid (D) 4.5 Acknowledge FIGURE 4-1: Data Transfer Sequence on the Serial Bus FIGURE 4-2: Acknowledge Timing 5.0 Device Addressing FIGURE 5-1: Control Byte Format 5.1 Contiguous Addressing Across Multiple Devices 6.0 Write Operations 6.1 Byte Write 6.2 Page Write FIGURE 6-1: Byte Write FIGURE 6-2: Page Write 7.0 Acknowledge Polling FIGURE 7-1: Acknowledge Polling Flow 8.0 Read Operation 8.1 Current Address Read FIGURE 8-1: Current Address Read 8.2 Random Read 8.3 Sequential Read FIGURE 8-2: Random Read FIGURE 8-3: Sequential Read 9.0 Packaging Information 9.1 Package Marking Information Appendix A: Revision History The Microchip Web Site Customer Change Notification Service Customer Support Reader Response Product Identification System Trademarks Worldwide Sales
