MAX16160 High-Accuracy 4-Channel, Any-Input Supervisory Circuits

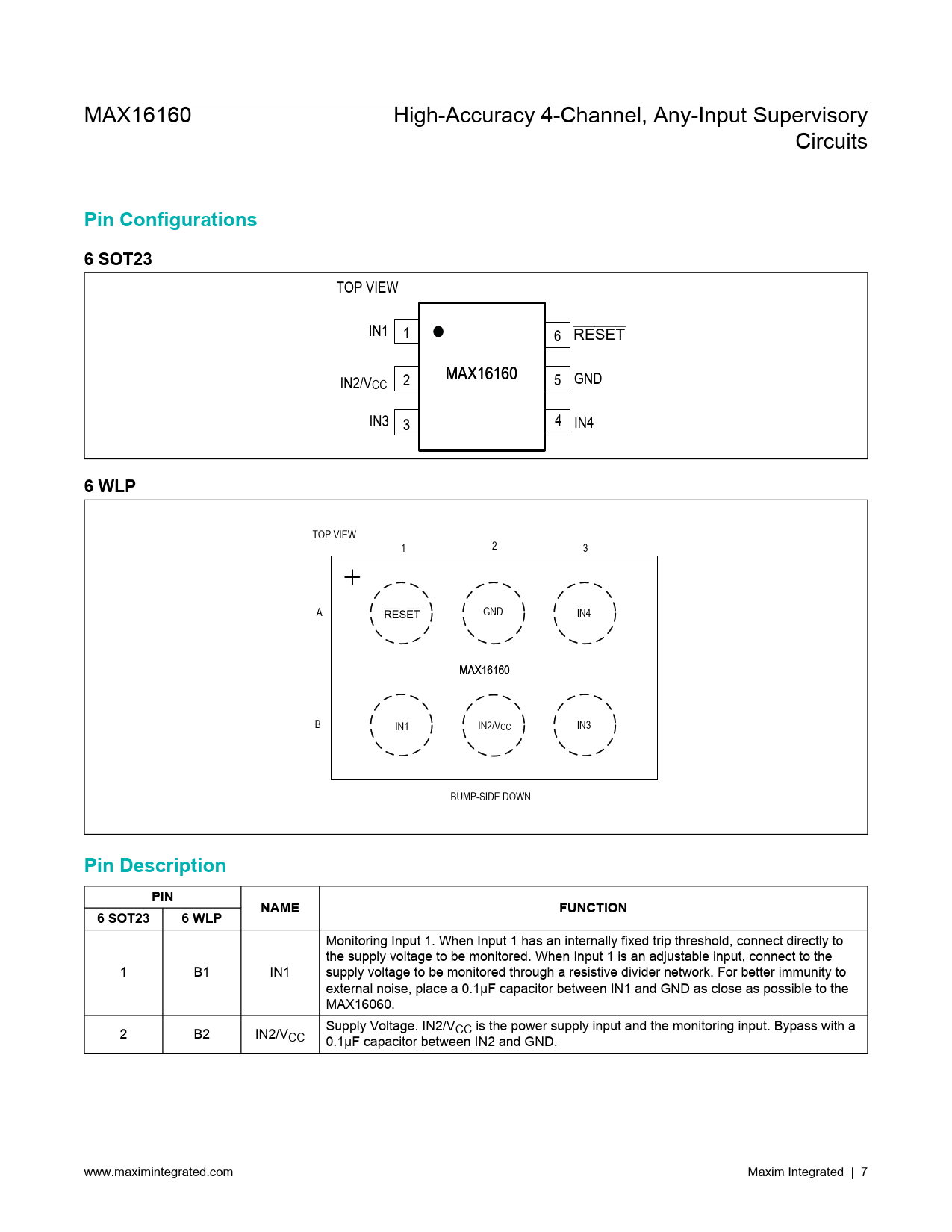

Pin Configurations 6 SOT23
TOP VIEW IN1 1 6 RESET IN2/V 2 MAX16160 5 CC GND IN3 3 4 IN4
6 WLP
TOP VIEW 1 2 3 A GND RESET IN4 MAX16160 B IN1 IN2/VCC IN3 BUMP-SIDE DOWN
Pin Description PIN NAME FUNCTION 6 SOT23 6 WLP
Monitoring Input 1. When Input 1 has an internally fixed trip threshold, connect directly to the supply voltage to be monitored. When Input 1 is an adjustable input, connect to the 1 B1 IN1 supply voltage to be monitored through a resistive divider network. For better immunity to external noise, place a 0.1µF capacitor between IN1 and GND as close as possible to the MAX16060. Supply Voltage. IN2/V 2 B2 IN2/V CC is the power supply input and the monitoring input. Bypass with a CC 0.1μF capacitor between IN2 and GND. www.maximintegrated.com Maxim Integrated | 7 Document Outline General Description Applications Benefits and Features Typical Operating Circuit Absolute Maximum Ratings Package Information 6 SOT23 6 WLP Electrical Characteristics Typical Operating Characteristics Typical Operating Characteristics (continued) Pin Configurations 6 SOT23 6 WLP Pin Description Pin Description (continued) Block Diagrams Internally Fixed Threshold Block Diagrams (continued) Adjustable Threshold Detailed Description Reset Output Input Hysteresis Input Thresholds Applications Information Adjustable Threshold Inputs (IN1, IN3, IN4) Adding Manual Reset Capability Unused Inputs Power-Supply Bypassing Selector Guide Typical Application Circuit Ordering Information Revision History
