Datasheet MC1458 (STMicroelectronics) - 9
| Fabricante | STMicroelectronics |
| Descripción | High-performance, dual operational amplifier |
| Páginas / Página | 12 / 9 — MC1458. Package information. 5.1. SO8 package information. Figure 3: SO8 … |
| Formato / tamaño de archivo | PDF / 469 Kb |
| Idioma del documento | Inglés |

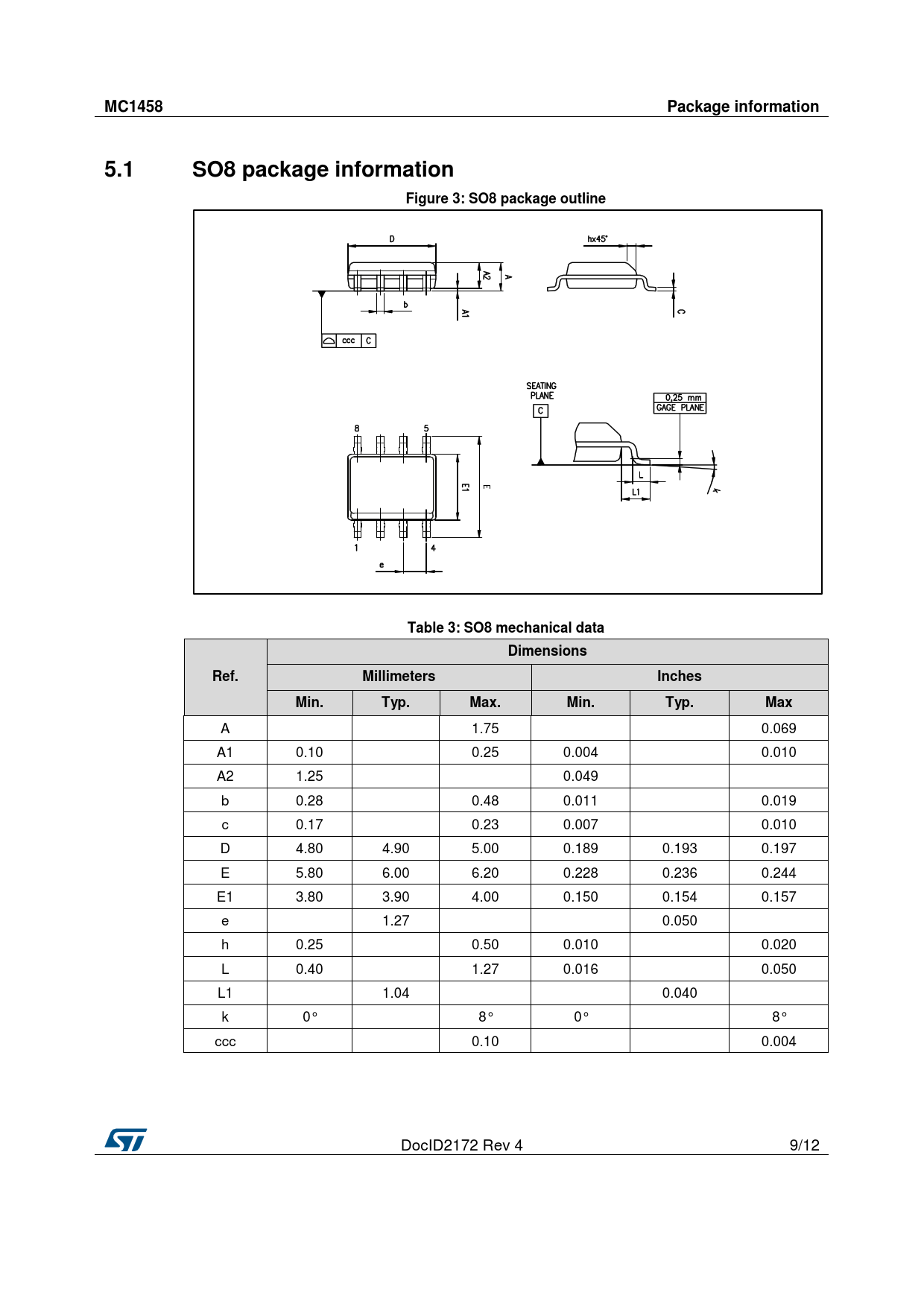

MC1458. Package information. 5.1. SO8 package information. Figure 3: SO8 package outline. Table 3: SO8 mechanical data. Dimensions
Línea de modelo para esta hoja de datos
Versión de texto del documento
MC1458 Package information 5.1 SO8 package information Figure 3: SO8 package outline Table 3: SO8 mechanical data Dimensions Ref. Millimeters Inches Min. Typ. Max. Min. Typ. Max
A 1.75 0.069 A1 0.10 0.25 0.004 0.010 A2 1.25 0.049 b 0.28 0.48 0.011 0.019 c 0.17 0.23 0.007 0.010 D 4.80 4.90 5.00 0.189 0.193 0.197 E 5.80 6.00 6.20 0.228 0.236 0.244 E1 3.80 3.90 4.00 0.150 0.154 0.157 e 1.27 0.050 h 0.25 0.50 0.010 0.020 L 0.40 1.27 0.016 0.050 L1 1.04 0.040 k 0° 8° 0° 8° ccc 0.10 0.004 DocID2172 Rev 4 9/12 Document Outline 1 Schematic diagram 2 Package pin connections 3 Absolute maximum ratings 4 Electrical characteristics 5 Package information 5.1 SO8 package information 6 Ordering information 7 Revision history
