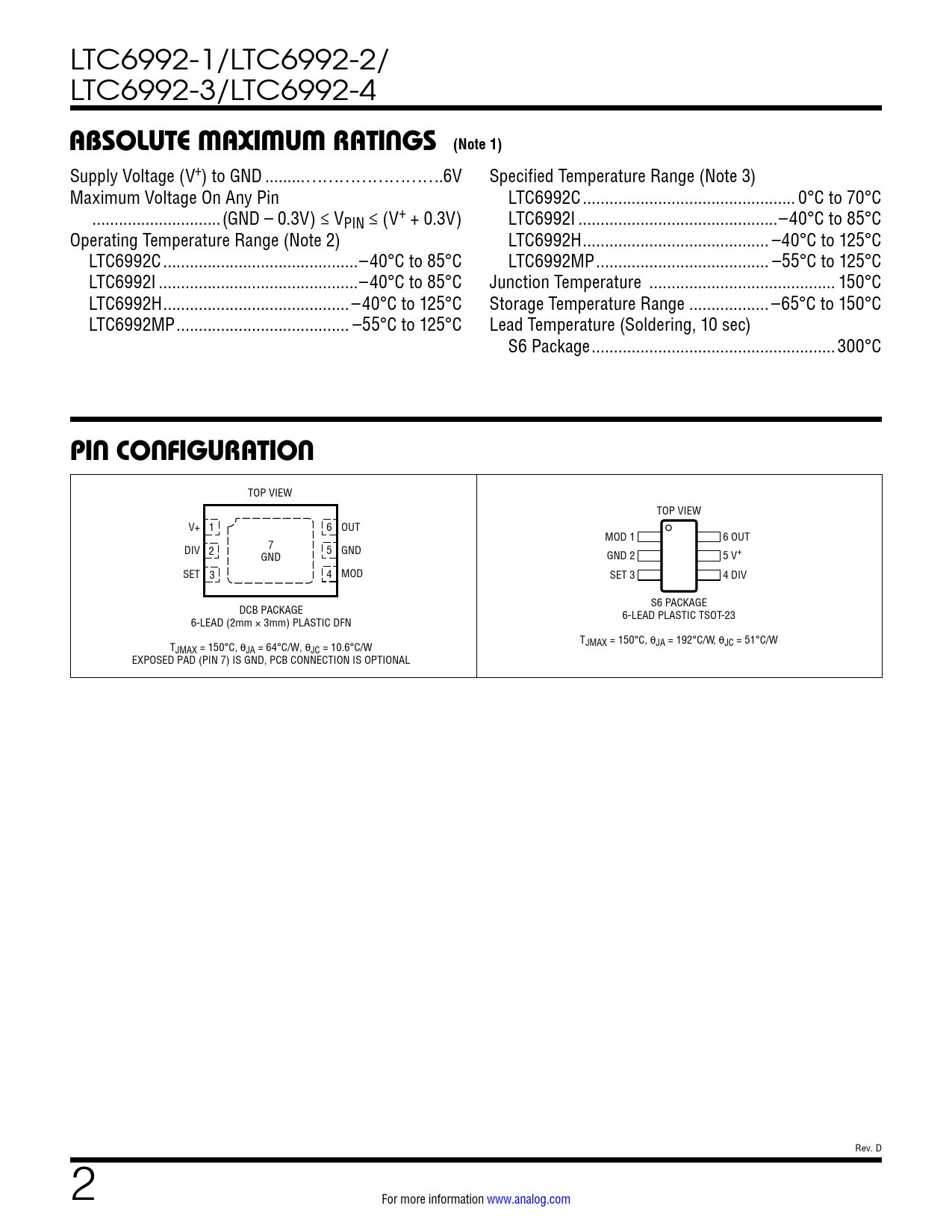

LTC6992-1/LTC6992-2/ LTC6992-3/LTC6992-4
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage (V+) to GND ...…………………….6V Specified Temperature Range (Note 3) Maximum Voltage On Any Pin LTC6992C .. 0°C to 70°C ...(GND – 0.3V) ≤ VPIN ≤ (V+ + 0.3V) LTC6992I ...–40°C to 85°C Operating Temperature Range (Note 2) LTC6992H .. –40°C to 125°C LTC6992C ..–40°C to 85°C LTC6992MP ... –55°C to 125°C LTC6992I ...–40°C to 85°C Junction Temperature .. 150°C LTC6992H .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C LTC6992MP ... –55°C to 125°C Lead Temperature (Soldering, 10 sec) S6 Package ...300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW V+ 1 6 OUT MOD 1 6 OUT DIV 7 2 5 GND GND GND 2 5 V+ SET 3 4 MOD SET 3 4 DIV S6 PACKAGE DCB PACKAGE 6-LEAD PLASTIC TSOT-23 6-LEAD (2mm × 3mm) PLASTIC DFN T T JMAX = 150°C, θJA = 192°C/W, θJC = 51°C/W JMAX = 150°C, θJA = 64°C/W, θJC = 10.6°C/W EXPOSED PAD (PIN 7) IS GND, PCB CONNECTION IS OPTIONAL Rev. D 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
