ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI). TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION

ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION

Línea de modelo para esta hoja de datos

Versión de texto del documento

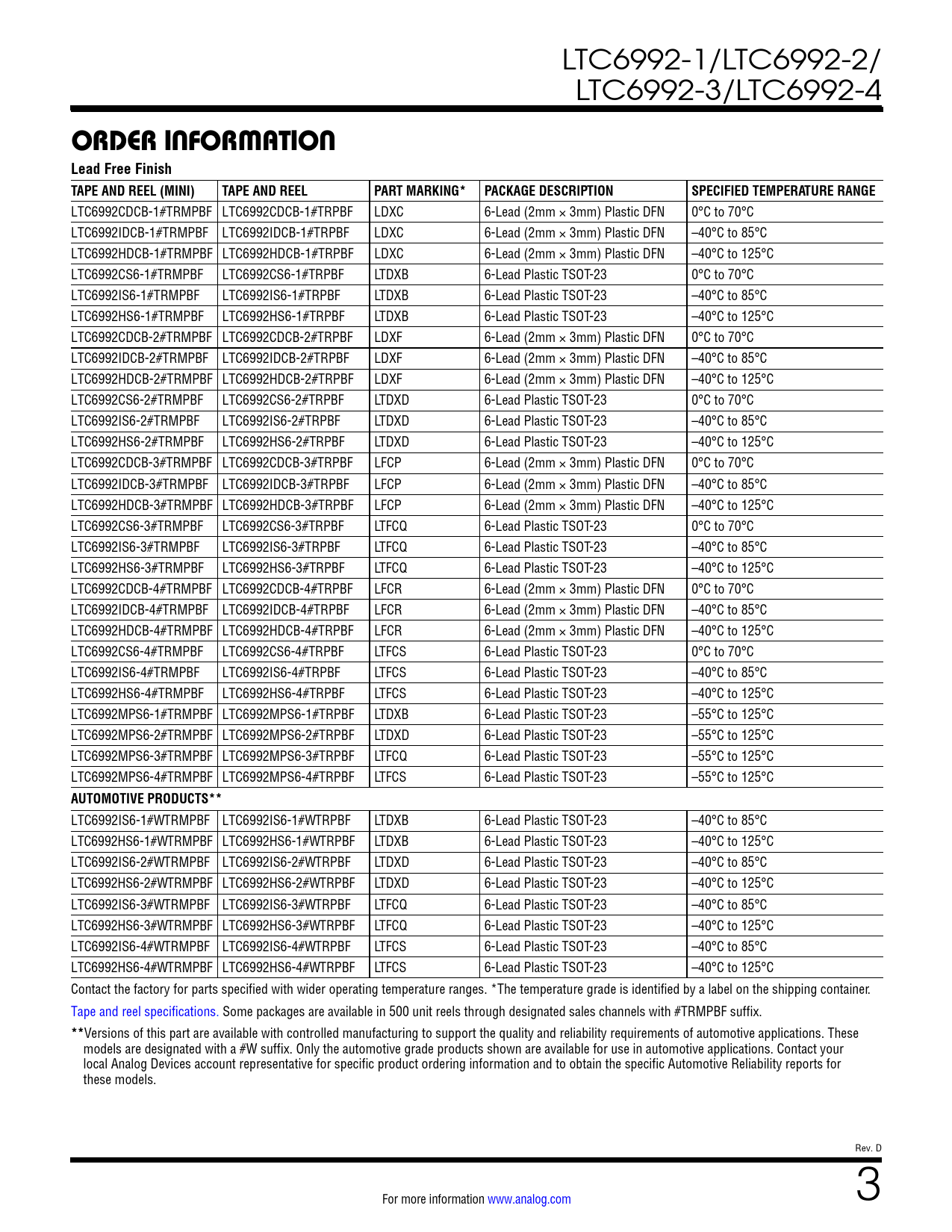

LTC6992-1/LTC6992-2/ LTC6992-3/LTC6992-4
ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6992CDCB-1#TRMPBF LTC6992CDCB-1#TRPBF LDXC 6-Lead (2mm × 3mm) Plastic DFN 0°C to 70°C LTC6992IDCB-1#TRMPBF LTC6992IDCB-1#TRPBF LDXC 6-Lead (2mm × 3mm) Plastic DFN –40°C to 85°C LTC6992HDCB-1#TRMPBF LTC6992HDCB-1#TRPBF LDXC 6-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C LTC6992CS6-1#TRMPBF LTC6992CS6-1#TRPBF LTDXB 6-Lead Plastic TSOT-23 0°C to 70°C LTC6992IS6-1#TRMPBF LTC6992IS6-1#TRPBF LTDXB 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6992HS6-1#TRMPBF LTC6992HS6-1#TRPBF LTDXB 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6992CDCB-2#TRMPBF LTC6992CDCB-2#TRPBF LDXF 6-Lead (2mm × 3mm) Plastic DFN 0°C to 70°C LTC6992IDCB-2#TRMPBF LTC6992IDCB-2#TRPBF LDXF 6-Lead (2mm × 3mm) Plastic DFN –40°C to 85°C LTC6992HDCB-2#TRMPBF LTC6992HDCB-2#TRPBF LDXF 6-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C LTC6992CS6-2#TRMPBF LTC6992CS6-2#TRPBF LTDXD 6-Lead Plastic TSOT-23 0°C to 70°C LTC6992IS6-2#TRMPBF LTC6992IS6-2#TRPBF LTDXD 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6992HS6-2#TRMPBF LTC6992HS6-2#TRPBF LTDXD 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6992CDCB-3#TRMPBF LTC6992CDCB-3#TRPBF LFCP 6-Lead (2mm × 3mm) Plastic DFN 0°C to 70°C LTC6992IDCB-3#TRMPBF LTC6992IDCB-3#TRPBF LFCP 6-Lead (2mm × 3mm) Plastic DFN –40°C to 85°C LTC6992HDCB-3#TRMPBF LTC6992HDCB-3#TRPBF LFCP 6-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C LTC6992CS6-3#TRMPBF LTC6992CS6-3#TRPBF LTFCQ 6-Lead Plastic TSOT-23 0°C to 70°C LTC6992IS6-3#TRMPBF LTC6992IS6-3#TRPBF LTFCQ 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6992HS6-3#TRMPBF LTC6992HS6-3#TRPBF LTFCQ 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6992CDCB-4#TRMPBF LTC6992CDCB-4#TRPBF LFCR 6-Lead (2mm × 3mm) Plastic DFN 0°C to 70°C LTC6992IDCB-4#TRMPBF LTC6992IDCB-4#TRPBF LFCR 6-Lead (2mm × 3mm) Plastic DFN –40°C to 85°C LTC6992HDCB-4#TRMPBF LTC6992HDCB-4#TRPBF LFCR 6-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C LTC6992CS6-4#TRMPBF LTC6992CS6-4#TRPBF LTFCS 6-Lead Plastic TSOT-23 0°C to 70°C LTC6992IS6-4#TRMPBF LTC6992IS6-4#TRPBF LTFCS 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6992HS6-4#TRMPBF LTC6992HS6-4#TRPBF LTFCS 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6992MPS6-1#TRMPBF LTC6992MPS6-1#TRPBF LTDXB 6-Lead Plastic TSOT-23 –55°C to 125°C LTC6992MPS6-2#TRMPBF LTC6992MPS6-2#TRPBF LTDXD 6-Lead Plastic TSOT-23 –55°C to 125°C LTC6992MPS6-3#TRMPBF LTC6992MPS6-3#TRPBF LTFCQ 6-Lead Plastic TSOT-23 –55°C to 125°C LTC6992MPS6-4#TRMPBF LTC6992MPS6-4#TRPBF LTFCS 6-Lead Plastic TSOT-23 –55°C to 125°C
AUTOMOTIVE PRODUCTS**
LTC6992IS6-1#WTRMPBF LTC6992IS6-1#WTRPBF LTDXB 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6992HS6-1#WTRMPBF LTC6992HS6-1#WTRPBF LTDXB 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6992IS6-2#WTRMPBF LTC6992IS6-2#WTRPBF LTDXD 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6992HS6-2#WTRMPBF LTC6992HS6-2#WTRPBF LTDXD 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6992IS6-3#WTRMPBF LTC6992IS6-3#WTRPBF LTFCQ 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6992HS6-3#WTRMPBF LTC6992HS6-3#WTRPBF LTFCQ 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6992IS6-4#WTRMPBF LTC6992IS6-4#WTRPBF LTFCS 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6992HS6-4#WTRMPBF LTC6992HS6-4#WTRPBF LTFCS 6-Lead Plastic TSOT-23 –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. D For more information www.analog.com 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
