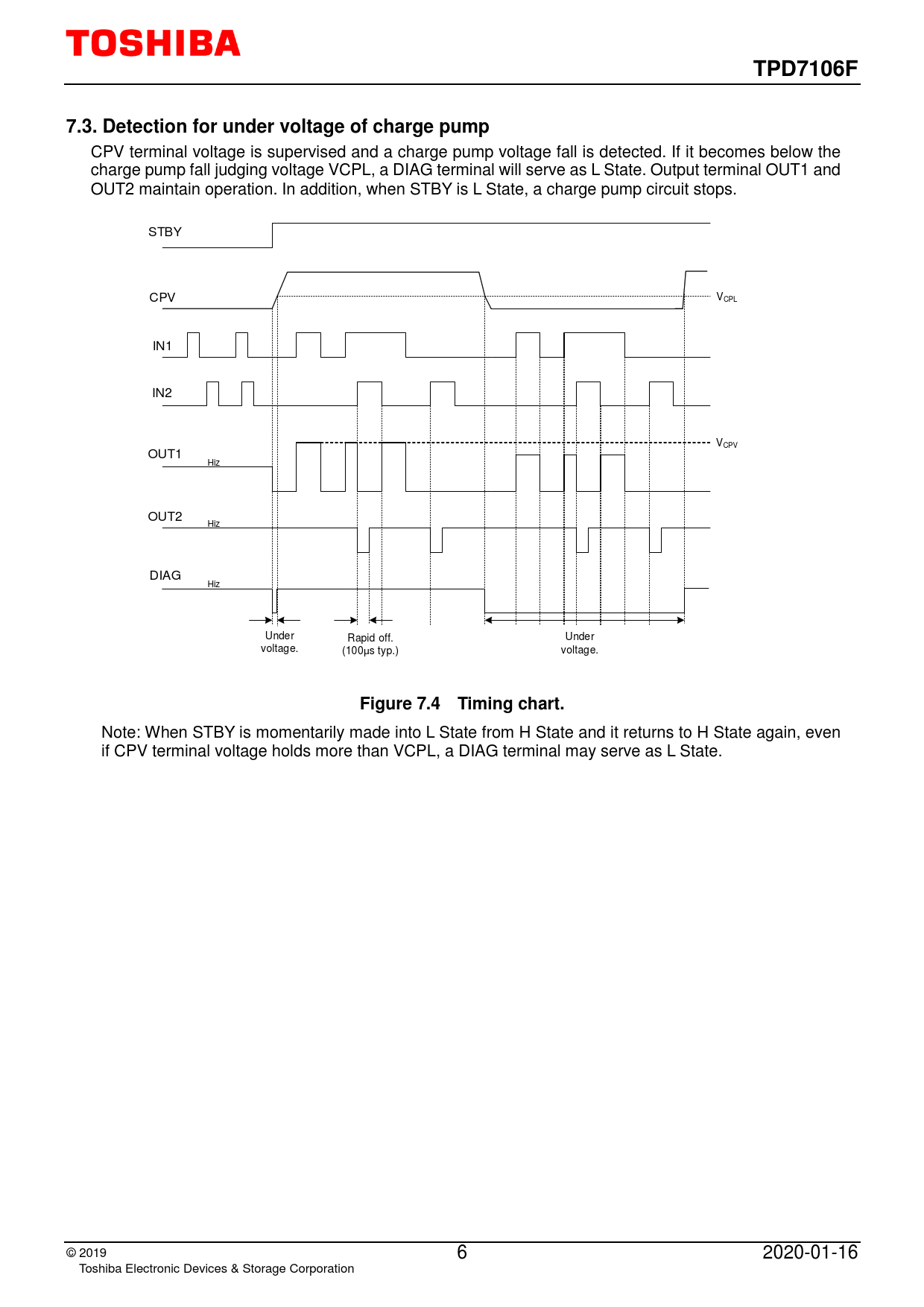

TPD7106F. 7.3. Detection for under voltage of charge pump. Figure 7.4 Timing chart
Línea de modelo para esta hoja de datos
Versión de texto del documento
TPD7106F 7.3. Detection for under voltage of charge pump
CPV terminal voltage is supervised and a charge pump voltage fall is detected. If it becomes below the charge pump fall judging voltage VCPL, a DIAG terminal will serve as L State. Output terminal OUT1 and OUT2 maintain operation. In addition, when STBY is L State, a charge pump circuit stops. STBY CPV VCPL IN1 IN2 V CPV OUT1 Hiz OUT2 Hiz DIAG Hiz Under Rapid off. Under voltage. voltage. (100μs typ.)
Figure 7.4 Timing chart.
Note: When STBY is momentarily made into L State from H State and it returns to H State again, even if CPV terminal voltage holds more than VCPL, a DIAG terminal may serve as L State. © 2 019 6 2020-01-16 Toshiba Electronic Devices & Storage Corporation
