Precision, Low Power, Micropower. Dual Operational Amplifier. OP290. FEATURES. PIN CONNECTIONS

Datasheet OP290 Analog Devices, Revisión: C

Línea de modelo para esta hoja de datos

Versión de texto del documento

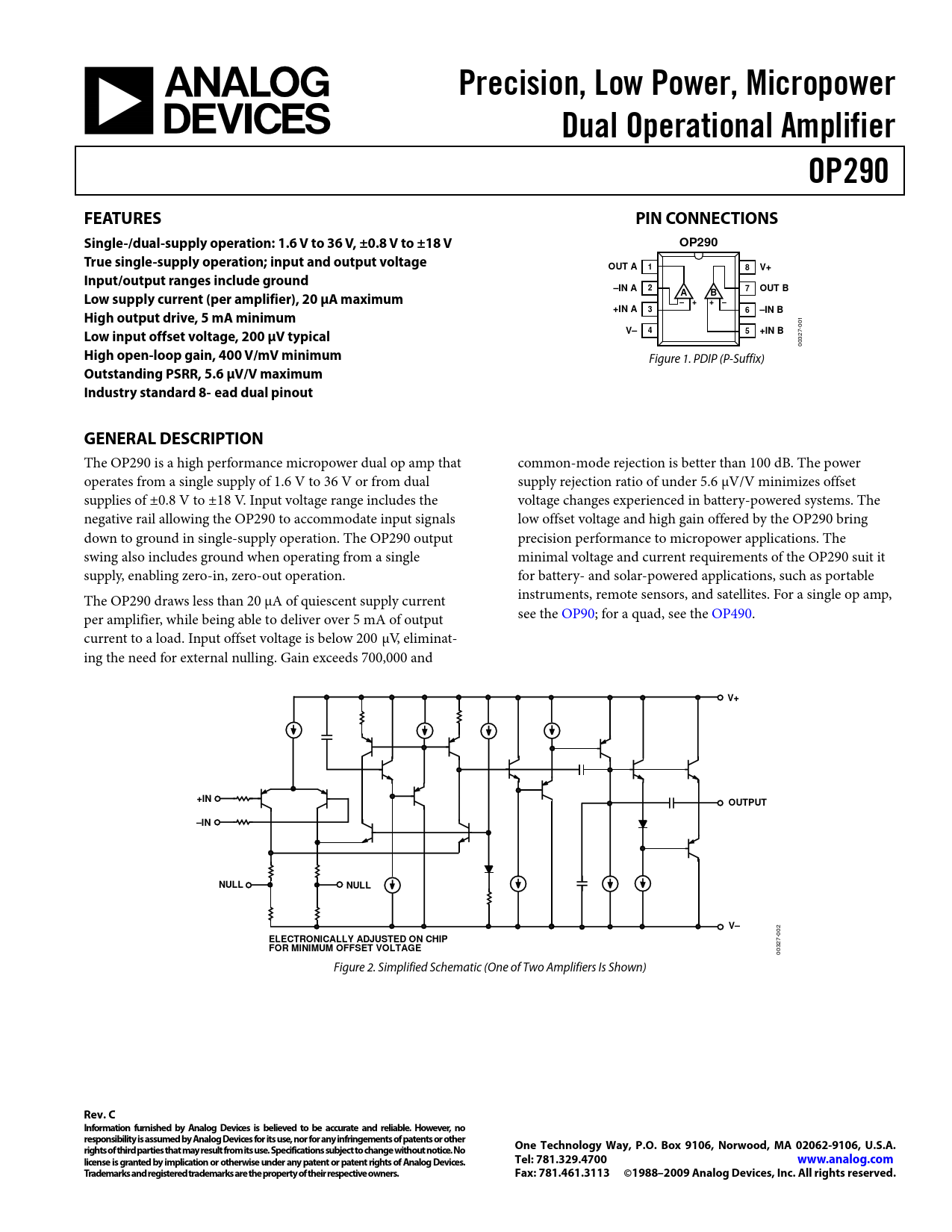

Precision, Low Power, Micropower Dual Operational Amplifier OP290 FEATURES PIN CONNECTIONS Single-/dual-supply operation: 1.6 V to 36 V, ±0.8 V to ±18 V OP290 True single-supply operation; input and output voltage OUT A 1 8 V+ Input/output ranges include ground –IN A 2 7 OUT B Low supply current (per amplifier), 20 µA maximum A B + + +IN A 3 High output drive, 5 mA minimum 6 –IN B
001
Low input offset voltage, 200 µV typical V– 4 5 +IN B
00327-
High open-loop gain, 400 V/mV minimum
Figure 1. PDIP (P-Suffix)
Outstanding PSRR, 5.6 µV/V maximum Industry standard 8-Mead dual pinout GENERAL DESCRIPTION
The OP290 is a high performance micropower dual op amp that common-mode rejection is better than 100 dB. The power operates from a single supply of 1.6 V to 36 V or from dual supply rejection ratio of under 5.6 μV/V minimizes offset supplies of ±0.8 V to ±18 V. Input voltage range includes the voltage changes experienced in battery-powered systems. The negative rail allowing the OP290 to accommodate input signals low offset voltage and high gain offered by the OP290 bring down to ground in single-supply operation. The OP290 output precision performance to micropower applications. The swing also includes ground when operating from a single minimal voltage and current requirements of the OP290 suit it supply, enabling zero-in, zero-out operation. for battery- and solar-powered applications, such as portable The OP290 draws less than 20 μA of quiescent supply current instruments, remote sensors, and satellites. For a single op amp, per amplifier, while being able to deliver over 5 mA of output see the OP90; for a quad, see the OP490. current to a load. Input offset voltage is below 200 μV, eliminat- ing the need for external nulling. Gain exceeds 700,000 and
V+ +IN OUTPUT –IN NULL NULL V–
002
ELECTRONICALLY ADJUSTED ON CHIP FOR MINIMUM OFFSET VOLTAGE
00327- Figure 2. Simplified Schematic (One of Two Amplifiers Is Shown)
Rev. C Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©1988–2009 Analog Devices, Inc. All rights reserved.
