KSZ8862-16M/-32M 1.0 INTRODUCTION 1.1 General Description
The KSZ8862M is two-port switch with non-PCI CPU interface and fiber support, and is available in 8-/16-bit and 32-bit bus designs. This data sheet describes the KSZ8862M non-PCI CPU interface chip. The KSZ8862M is the industry’s first fully managed, two-port switch with a non-PCI CPU interface and fiber support. It is based on a proven, fourth generation, integrated two layer switch, compliant with IEEE 802.3u standards. For industrial applications, the KSZ8862M can run in half-duplex mode regardless of the application. In fiber mode, port one can be configurable to either 100BASE-FX or 100BASE-SX/10BASE-FL. The LED driver and post amplifier are also included for 10Base-FL and 100Base-SX applications. In copper mode, port two supports 10/100BASE-T/TX with HP Auto MDI/MDI-X for reliable detection of and correction for straight-through and crossover cables. Microchip’s proprietary LinkMD® Time Domain Reflectometry (TDR)-based function is also available for determining the cable length, as well as cable diagnostics for identifying faulty cabling. The KSZ8862M offers an extensive feature set that includes tag/port-based VLAN, quality of service (QoS) priority man- agement, management information base (MIB) counters, and CPU control/data interfaces to effectively address Fast Ethernet applications. The KSZ8862M contains: Two 10/100 transceivers with patented, mixed-signal, low-power technology, two media access control (MAC) units, a direct memory access (DMA) channel, a high-speed, non-blocking, switch fabric, a ded- icated 1K entry forwarding table, and an on-chip frame buffer memory.

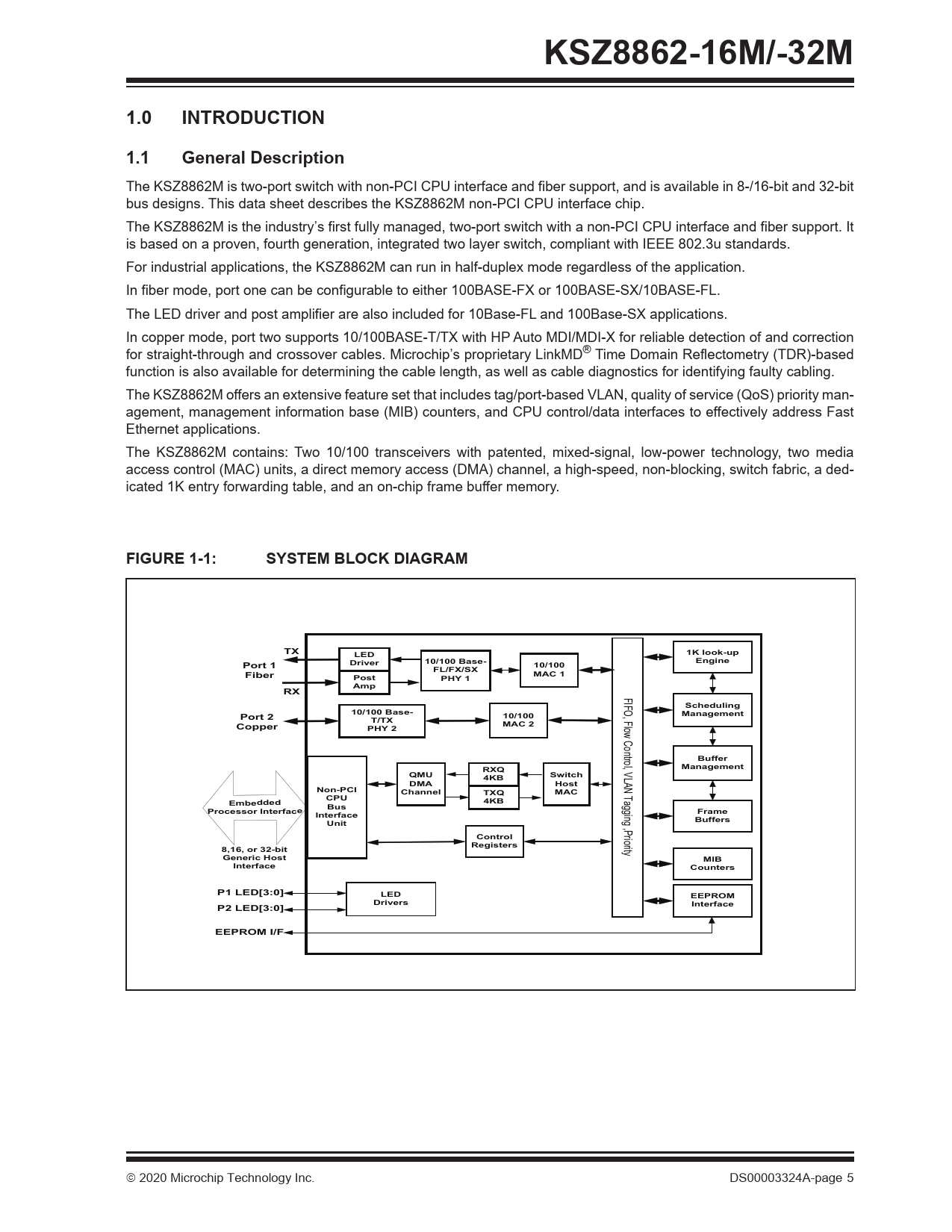

FIGURE 1-1: SYSTEM BLOCK DIAGRAM TX 1K look-up LED 10/100 Base- Engine Port 1 Driver 10/100 FL/FX/SX Fiber MAC 1 Post PHY 1 Amp RX
FIF
Scheduling
O
10/100 Base- Port 2 10/100
, Flow Control, V
Management T/TX Copper MAC 2 PHY 2 Buffer Management RXQ QMU Switch
L
4KB
AN
DMA Host Non-PCI Channel TXQ MAC
Ta
CPU Embedded 4KB
gging
Bus Processor Interface Frame Interface Buffers Unit
,Priority
Control Registers 8,16, or 32-bit Generic Host MIB Interface Counters P1 LED[3:0] LED EEPROM Drivers Interface P2 LED[3:0] EEPROM I/F
