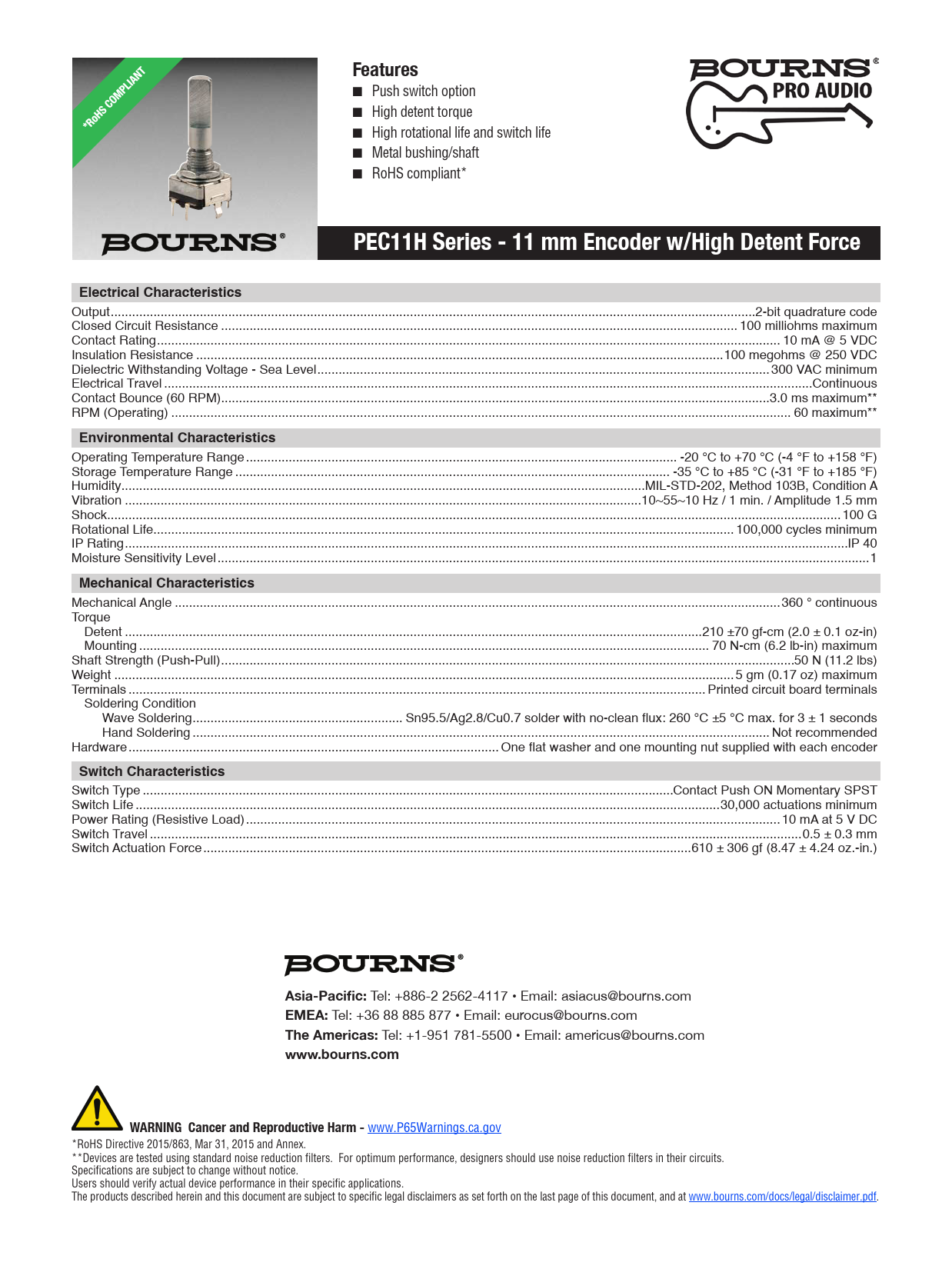

Datasheet PEC11H (Bourns)

FabricanteBourns
Descripción 11 mm Encoder w/High Detent Force
Páginas / Página4 / 1 — Features. PEC11H Series - 11 mm Encoder w/High Detent Force. Electrical …
Formato / tamaño de archivoPDF / 515 Kb
Idioma del documentoInglés

Features. PEC11H Series - 11 mm Encoder w/High Detent Force. Electrical Characteristics. Environmental Characteristics

Datasheet PEC11H Bourns

Línea de modelo para esta hoja de datos

PEC11H

Versión de texto del documento

Features
n Push switch option n High detent torque n High rotational life and switch life n Metal bushing/shaft n RoHS compliant*
PEC11H Series - 11 mm Encoder w/High Detent Force Electrical Characteristics
Output ...2-bit quadrature code Closed Circuit Resistance ... 100 milliohms maximum Contact Rating ... 10 mA @ 5 VDC Insulation Resistance ..100 megohms @ 250 VDC Dielectric Withstanding Voltage - Sea Level ...300 VAC minimum Electrical Travel ..Continuous Contact Bounce (60 RPM)..3.0 ms maximum** RPM (Operating) .. 60 maximum**
Environmental Characteristics
Operating Temperature Range ... -20 °C to +70 °C (-4 °F to +158 °F) Storage Temperature Range .. -35 °C to +85 °C (-31 °F to +185 °F) Humidity...MIL-STD-202, Method 103B, Condition A Vibration ...10~55~10 Hz / 1 min. / Amplitude 1.5 mm Shock..100 G Rotational Life... 100,000 cycles minimum IP Rating ...IP 40 Moisture Sensitivity Level ...1
Mechanical Characteristics
Mechanical Angle ..360 ° continuous Torque Detent ..210 ±70 gf-cm (2.0 ± 0.1 oz-in) Mounting .. 70 N-cm (6.2 lb-in) maximum Shaft Strength (Push-Pull) ...50 N (11.2 lbs) Weight ..5 gm (0.17 oz) maximum Terminals .. Printed circuit board terminals Soldering Condition Wave Soldering ... Sn95.5/Ag2.8/Cu0.7 solder with no-clean flux: 260 °C ±5 °C max. for 3 ± 1 seconds Hand Soldering .. Not recommended Hardware .. One flat washer and one mounting nut supplied with each encoder
Switch Characteristics
Switch Type ...Contact Push ON Momentary SPST Switch Life ..30,000 actuations minimum Power Rating (Resistive Load) ..10 mA at 5 V DC Switch Travel ...0.5 ± 0.3 mm Switch Actuation Force ...610 ± 306 gf (8.47 ± 4.24 oz.-in.)
Asia-Pacific:
Tel: +886-2 2562-4117 • Email: asiacus@bourns.com
EMEA:
Tel: +36 88 885 877 • Email: eurocus@bourns.com
The Americas:
Tel: +1-951 781-5500 • Email: americus@bourns.com
www.bourns.com WARNING Cancer and Reproductive Harm -
www.P65Warnings.ca.gov *RoHS Directive 2015/863, Mar 31, 2015 and Annex. **Devices are tested using standard noise reduction filters. For optimum performance, designers should use noise reduction filters in their circuits. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
