Datasheet PEC11H (Bourns) - 3

FabricanteBourns
Descripción 11 mm Encoder w/High Detent Force
Páginas / Página4 / 3 — PEC11H Series - 11 mm Encoder w/High Detent Force. How To Order. Switch …
Formato / tamaño de archivoPDF / 515 Kb
Idioma del documentoInglés

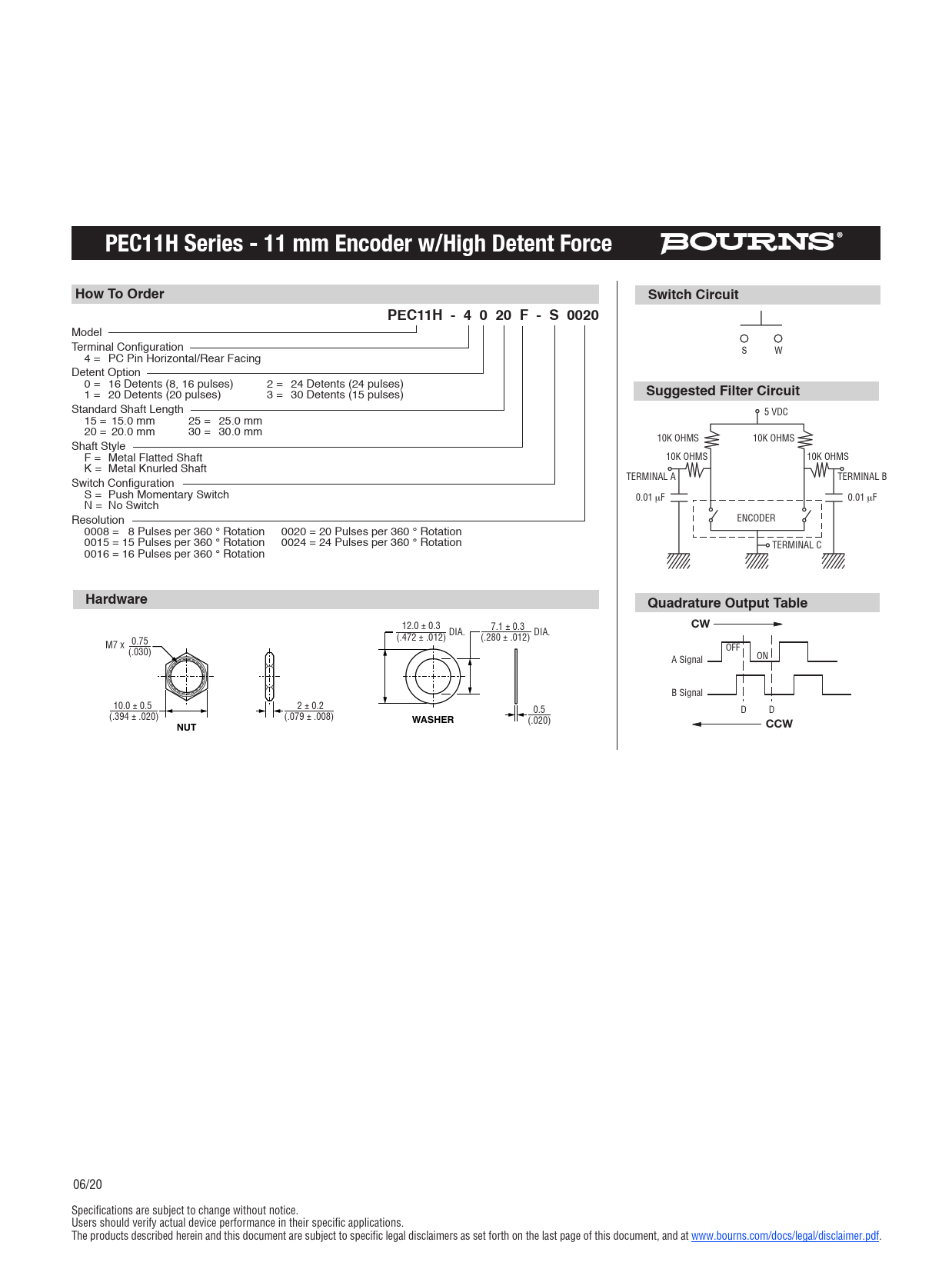

PEC11H Series - 11 mm Encoder w/High Detent Force. How To Order. Switch Circuit. PEC11H - 4 0 20 F - S 0020

PEC11H Series - 11 mm Encoder w/High Detent Force How To Order Switch Circuit PEC11H - 4 0 20 F - S 0020

Línea de modelo para esta hoja de datos

PEC11H

Versión de texto del documento

5 VDC 10K OHMS 10K OHMS 10K OHMS 10K OHMS TERMINAL A TERMINAL B 0.01 μF 0.01 μF ENCODER
PEC11H Series - 11 mm Encoder w/High Detent Force
TERMINAL C
How To Order Switch Circuit PEC11H - 4 0 20 F - S 0020
Model Terminal Configuration 4 = PC Pin Horizontal/Rear Facing S W Detent Option 0 = 16 Detents (8, 16 pulses) 2 = 24 Detents (24 pulses) 1 = 20 Detents (20 pulses) 3 = 30 Detents (15 pulses)
Suggested Filter Circuit
Standard Shaft Length
CW
5 VDC 15 = 15.0 mm 25 = 25.0 mm 20 = 20.0 mm 30 = 30.0 mm 10K OHMS 10K OHMS Shaft Style OFF F = Metal Flatted Shaft A Signal ON 10K OHMS 10K OHMS K = Metal Knurled Shaft Switch Configuration TERMINAL A TERMINAL B S = Push Momentary Switch B Signal 0.01 N = No Switch μF 0.01 μF D Resolution 0.75 ENCODER M7 x 0008 = 8 Pulses per 360 ° Rotation 0020 = 20 Pulses per 360 ° Rotation (.030) 0015 = 15 Pulses per 360 ° Rotation 0024 = 24 Pulses per 360 ° Rotation TERMINAL C 0016 = 16 Pulses per 360 ° Rotation 10.0 ± 0.5 2 ± 0.2
Hardware
(.394 ± .020) (.079 ± .008)
NUT Quadrature Output Table
12.0 ± 0.3 7.1 ± 0.3
CW
0.75 (.472 ± .012) DIA. (.280 ± .012) DIA. M7 x OFF (.030) A Signal ON 1 2 B Signal 10.0 ± 0.5 2 ± 0.2 0.5 D D (.394 ± .020) (.079 ± .008)
CW WASHER
(.020)
NUT CCW
12.0 ± 0.3 7.1 ± 0.3 OFF (.472 ± .012) DIA. (.280 ± .012) DIA. A Signal ON B Signal D 0.5
WASHER
(.020) 06/20 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
