Datasheet K857PE (Vishay)
| Fabricante | Vishay |
| Descripción | 4-Quadrant Silicon PIN Photodiode |
| Páginas / Página | 7 / 1 — K857PE. 4-Quadrant Silicon PIN Photodiode. FEATURES. DESCRIPTION. LINKS … |
| Formato / tamaño de archivo | PDF / 247 Kb |
| Idioma del documento | Inglés |
K857PE. 4-Quadrant Silicon PIN Photodiode. FEATURES. DESCRIPTION. LINKS TO ADDITIONAL RESOURCES. D 3. 3 D. PRODUCT SUMMARY. COMPONENT
Línea de modelo para esta hoja de datos
Versión de texto del documento
K857PE

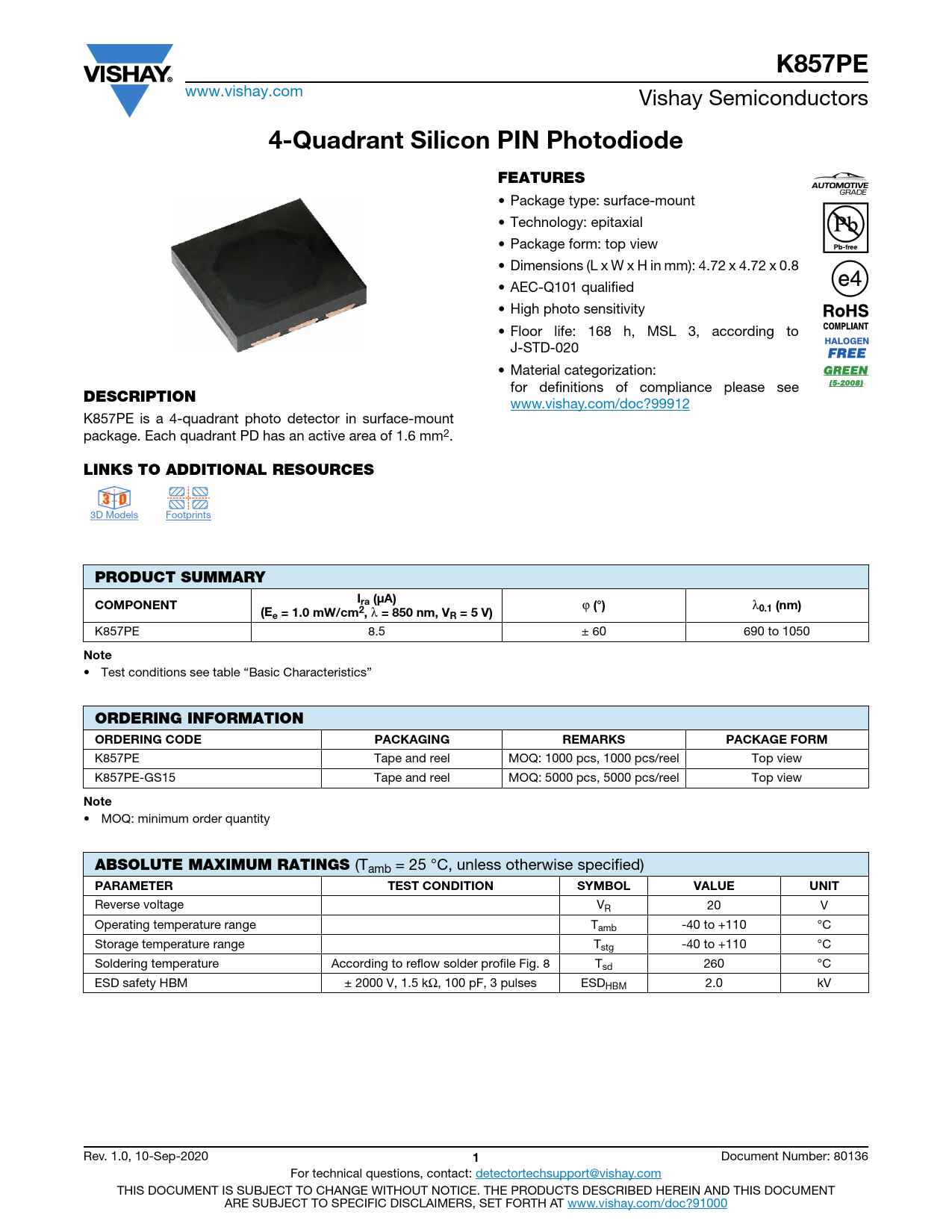

www.vishay.com Vishay Semiconductors
4-Quadrant Silicon PIN Photodiode FEATURES
• Package type: surface-mount • Technology: epitaxial • Package form: top view • Dimensions (L x W x H in mm): 4.72 x 4.72 x 0.8 • AEC-Q101 qualified • High photo sensitivity • Floor life: 168 h, MSL 3, according to J-STD-020 • Material categorization:
DESCRIPTION
for definitions of compliance please see www.vishay.com/doc?99912 K857PE is a 4-quadrant photo detector in surface-mount package. Each quadrant PD has an active area of 1.6 mm2.
LINKS TO ADDITIONAL RESOURCES D 3 3 D
3D Models Footprints
PRODUCT SUMMARY I COMPONENT ra (μA)
ϕ
(°)
λ
(E 0.1 (nm) e = 1.0 mW/cm2,
λ
= 850 nm, VR = 5 V)
K857PE 8.5 ± 60 690 to 1050
Note
• Test conditions see table “Basic Characteristics”
ORDERING INFORMATION ORDERING CODE PACKAGING REMARKS PACKAGE FORM
K857PE Tape and reel MOQ: 1000 pcs, 1000 pcs/reel Top view K857PE-GS15 Tape and reel MOQ: 5000 pcs, 5000 pcs/reel Top view
Note
• MOQ: minimum order quantity
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Reverse voltage VR 20 V Operating temperature range Tamb -40 to +110 °C Storage temperature range Tstg -40 to +110 °C Soldering temperature According to reflow solder profile Fig. 8 Tsd 260 °C ESD safety HBM ± 2000 V, 1.5 kΩ, 100 pF, 3 pulses ESDHBM 2.0 kV Rev. 1.0, 10-Sep-2020
1
Document Number: 80136 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
