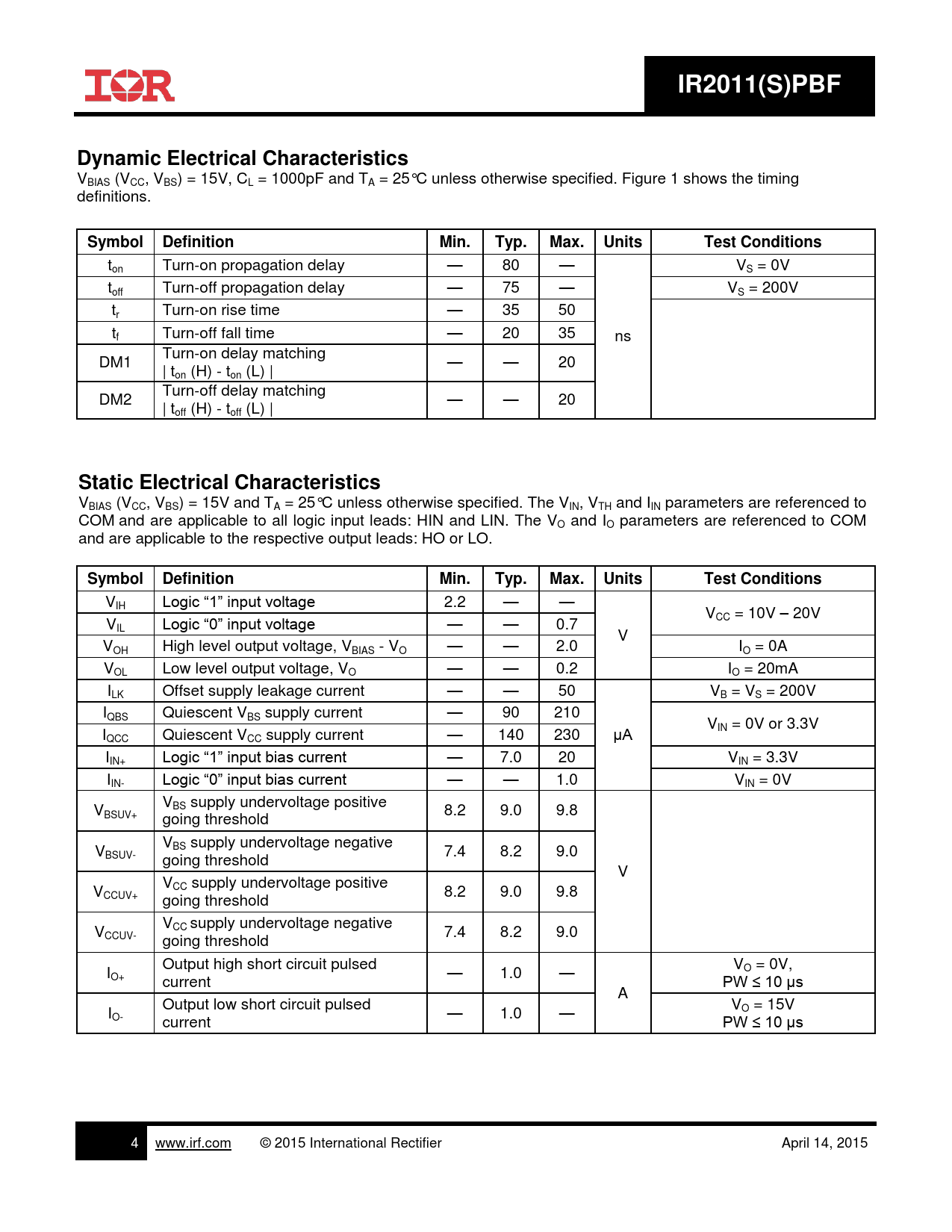

IR2011(S)PBF Dynamic Electrical Characteristics
VBIAS (VCC, VBS) = 15V, CL = 1000pF and TA = 25°C unless otherwise specified. Figure 1 shows the timing definitions.
Symbol Definition Min. Typ. Max. Units Test Conditions
ton Turn-on propagation delay — 80 — VS = 0V toff Turn-off propagation delay — 75 — VS = 200V tr Turn-on rise time — 35 50 tf Turn-off fall time — 20 35 ns Turn-on delay matching DM1 — — 20 | ton (H) - ton (L) | Turn-off delay matching DM2 — — 20 | toff (H) - toff (L) |
Static Electrical Characteristics
VBIAS (VCC, VBS) = 15V and TA = 25°C unless otherwise specified. The VIN, VTH and IIN parameters are referenced to COM and are applicable to all logic input leads: HIN and LIN. The VO and IO parameters are referenced to COM and are applicable to the respective output leads: HO or LO.
Symbol Definition Min. Typ. Max. Units Test Conditions
VIH Logic “1” input voltage 2.2 — — VCC = 10V – 20V VIL Logic “0” input voltage — — 0.7 V VOH High level output voltage, VBIAS - VO — — 2.0 IO = 0A VOL Low level output voltage, VO — — 0.2 IO = 20mA ILK Offset supply leakage current — — 50 VB = VS = 200V IQBS Quiescent VBS supply current — 90 210 V μA IN = 0V or 3.3V IQCC Quiescent VCC supply current — 140 230 IIN+ Logic “1” input bias current — 7.0 20 VIN = 3.3V IIN- Logic “0” input bias current — — 1.0 VIN = 0V V V BS supply undervoltage positive BSUV+ 8.2 9.0 9.8 going threshold V V BS supply undervoltage negative BSUV- 7.4 8.2 9.0 going threshold V V V CC supply undervoltage positive CCUV+ 8.2 9.0 9.8 going threshold V V CC supply undervoltage negative CCUV- 7.4 8.2 9.0 going threshold Output high short circuit pulsed V I — O = 0V, O+ 1.0 — current PW ≤ 10 μs A Output low short circuit pulsed V I — O = 15V O- 1.0 — current PW ≤ 10 μs 4 www.irf.com © 2015 International Rectifier April 14, 2015
