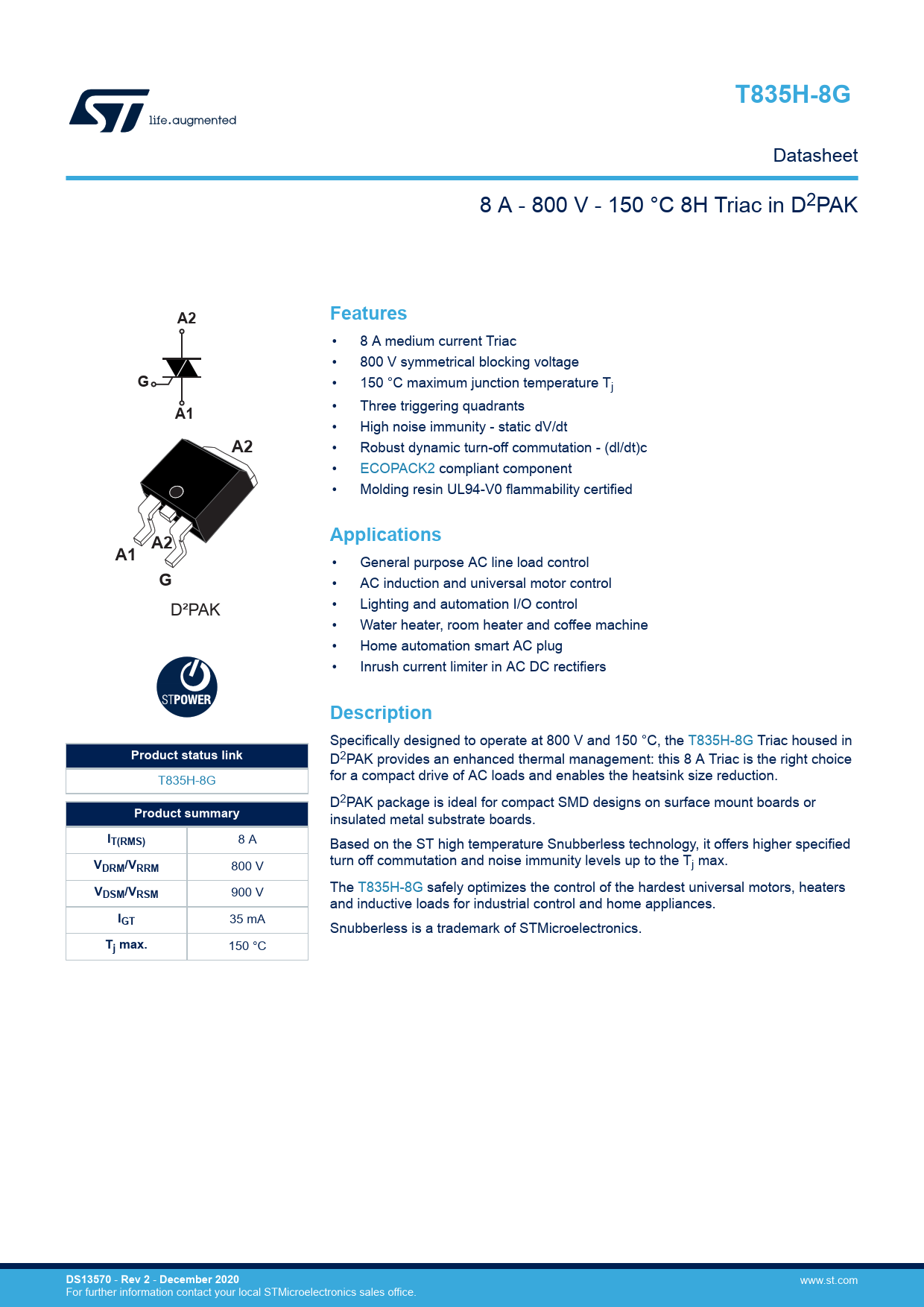

T835H-8G
Datasheet 8 A - 800 V - 150 °C 8H Triac in D2PAK
A2 Features
• 8 A medium current Triac • 800 V symmetrical blocking voltage
G
• 150 °C maximum junction temperature Tj
A1
• Three triggering quadrants • High noise immunity - static dV/dt
A2
• Robust dynamic turn-off commutation - (dl/dt)c • ECOPACK2 compliant component • Molding resin UL94-V0 flammability certified
A2 Applications A1
• General purpose AC line load control
G
• AC induction and universal motor control D²PAK • Lighting and automation I/O control • Water heater, room heater and coffee machine • Home automation smart AC plug • Inrush current limiter in AC DC rectifiers
Description
Specifically designed to operate at 800 V and 150 °C, the T835H-8G Triac housed in
Product status link
D2PAK provides an enhanced thermal management: this 8 A Triac is the right choice for a compact drive of AC loads and enables the heatsink size reduction. T835H-8G D2PAK package is ideal for compact SMD designs on surface mount boards or
Product summary
insulated metal substrate boards.
IT(RMS)
8 A Based on the ST high temperature Snubberless technology, it offers higher specified turn off commutation and noise immunity levels up to the T
V
j max.
DRM/VRRM
800 V The T835H-8G safely optimizes the control of the hardest universal motors, heaters
VDSM/VRSM
900 V and inductive loads for industrial control and home appliances.
IGT
35 mA Snubberless is a trademark of STMicroelectronics.
Tj max.
150 °C
DS13570
-
Rev 2
-
December 2020
www.st.com For further information contact your local STMicroelectronics sales office. Document Outline 1 Characteristics 1.1 Characteristics (curves) 2 Package information 2.1 D²PAK package information 3 Ordering information Revision history
