Datasheet T835H-8G (STMicroelectronics) - 3
| Fabricante | STMicroelectronics |
| Descripción | 8 A - 800 V - 150°C 8H-Triac in D2PAK |
| Páginas / Página | 12 / 3 — T835H-8G. Characteristics. Table 3. Static characteristics. Symbol. Test … |
| Formato / tamaño de archivo | PDF / 263 Kb |
| Idioma del documento | Inglés |
T835H-8G. Characteristics. Table 3. Static characteristics. Symbol. Test conditions. Value. Unit. Table 4. Thermal resistance
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 3 link to page 3 link to page 3 link to page 3

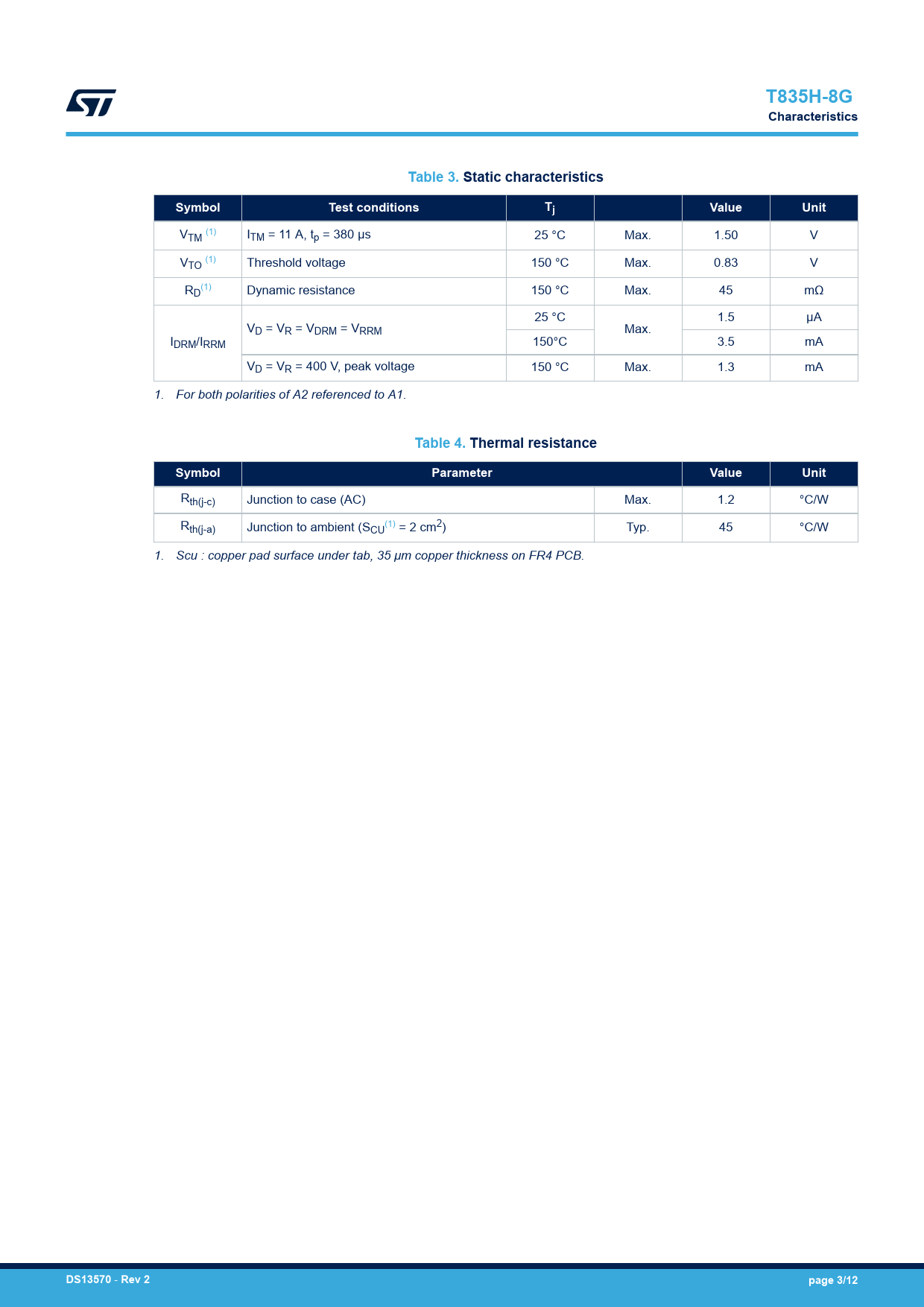

T835H-8G Characteristics Table 3. Static characteristics Symbol Test conditions Tj Value Unit
VTM (1) ITM = 11 A, tp = 380 µs 25 °C Max. 1.50 V VTO (1) Threshold voltage 150 °C Max. 0.83 V R (1) D Dynamic resistance 150 °C Max. 45 mΩ 25 °C 1.5 µA VD = VR = VDRM = VRRM Max. IDRM/IRRM 150°C 3.5 mA VD = VR = 400 V, peak voltage 150 °C Max. 1.3 mA 1. For both polarities of A2 referenced to A1.
Table 4. Thermal resistance Symbol Parameter Value Unit
Rth(j-c) Junction to case (AC) Max. 1.2 °C/W Rth(j-a) Junction to ambient (S (1) CU = 2 cm2) Typ. 45 °C/W 1. Scu : copper pad surface under tab, 35 μm copper thickness on FR4 PCB.
DS13570
-
Rev 2 page 3/12
