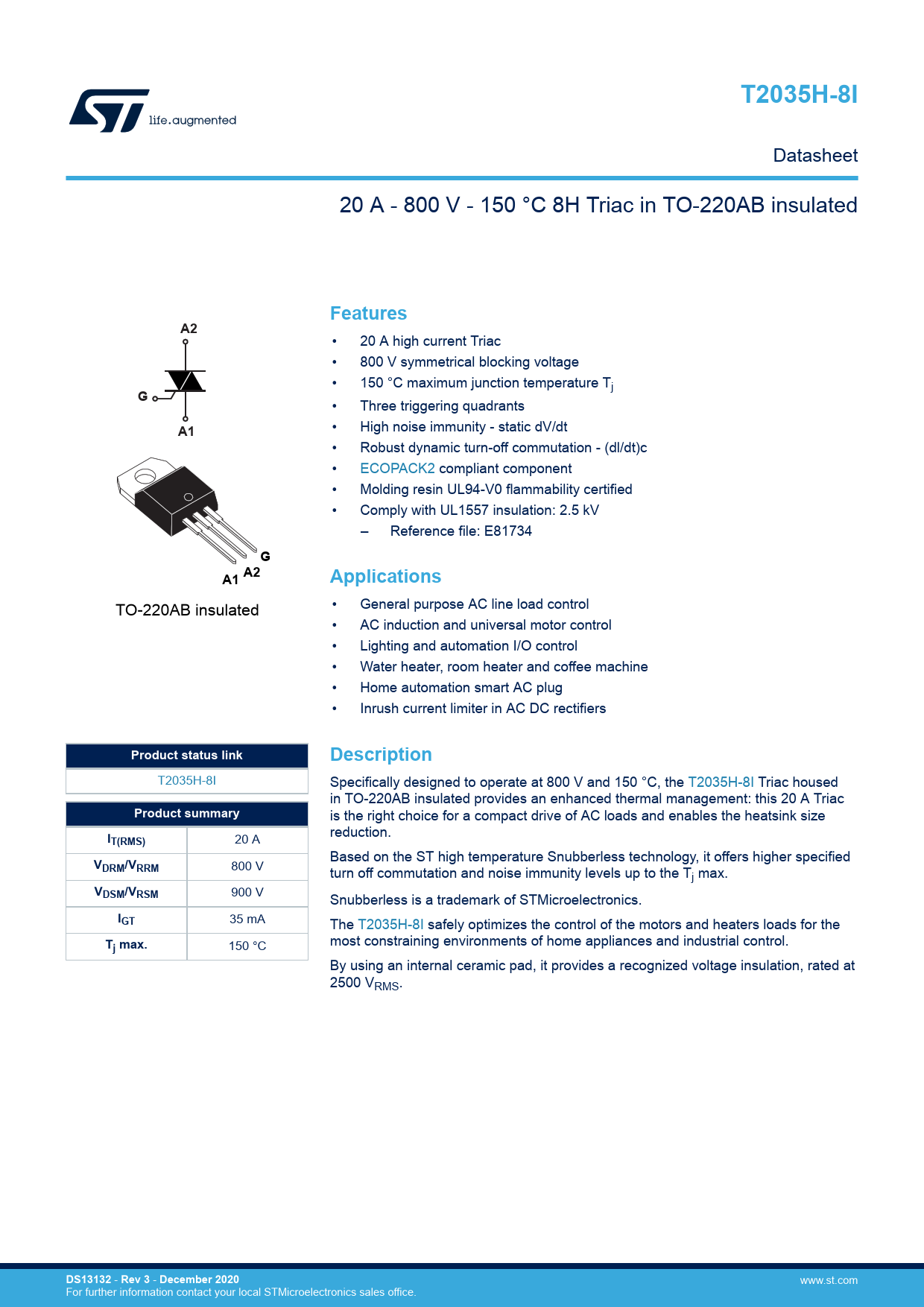

T2035H-8I
Datasheet 20 A - 800 V - 150 °C 8H Triac in TO-220AB insulated
Features A2
• 20 A high current Triac • 800 V symmetrical blocking voltage • 150 °C maximum junction temperature Tj
G
• Three triggering quadrants
A1
• High noise immunity - static dV/dt • Robust dynamic turn-off commutation - (dl/dt)c • ECOPACK2 compliant component • Molding resin UL94-V0 flammability certified • Comply with UL1557 insulation: 2.5 kV – Reference file: E81734
G A1 A2 Applications
TO-220AB insulated • General purpose AC line load control • AC induction and universal motor control • Lighting and automation I/O control • Water heater, room heater and coffee machine • Home automation smart AC plug • Inrush current limiter in AC DC rectifiers
Product status link Description
T2035H-8I Specifically designed to operate at 800 V and 150 °C, the T2035H-8I Triac housed in TO-220AB insulated provides an enhanced thermal management: this 20 A Triac
Product summary
is the right choice for a compact drive of AC loads and enables the heatsink size reduction.
IT(RMS)
20 A Based on the ST high temperature Snubberless technology, it offers higher specified
VDRM/VRRM
800 V turn off commutation and noise immunity levels up to the Tj max.
VDSM/VRSM
900 V Snubberless is a trademark of STMicroelectronics.
IGT
35 mA The T2035H-8I safely optimizes the control of the motors and heaters loads for the
T
most constraining environments of home appliances and industrial control.
j max.
150 °C By using an internal ceramic pad, it provides a recognized voltage insulation, rated at 2500 VRMS.
DS13132
-
Rev 3
-
December 2020
