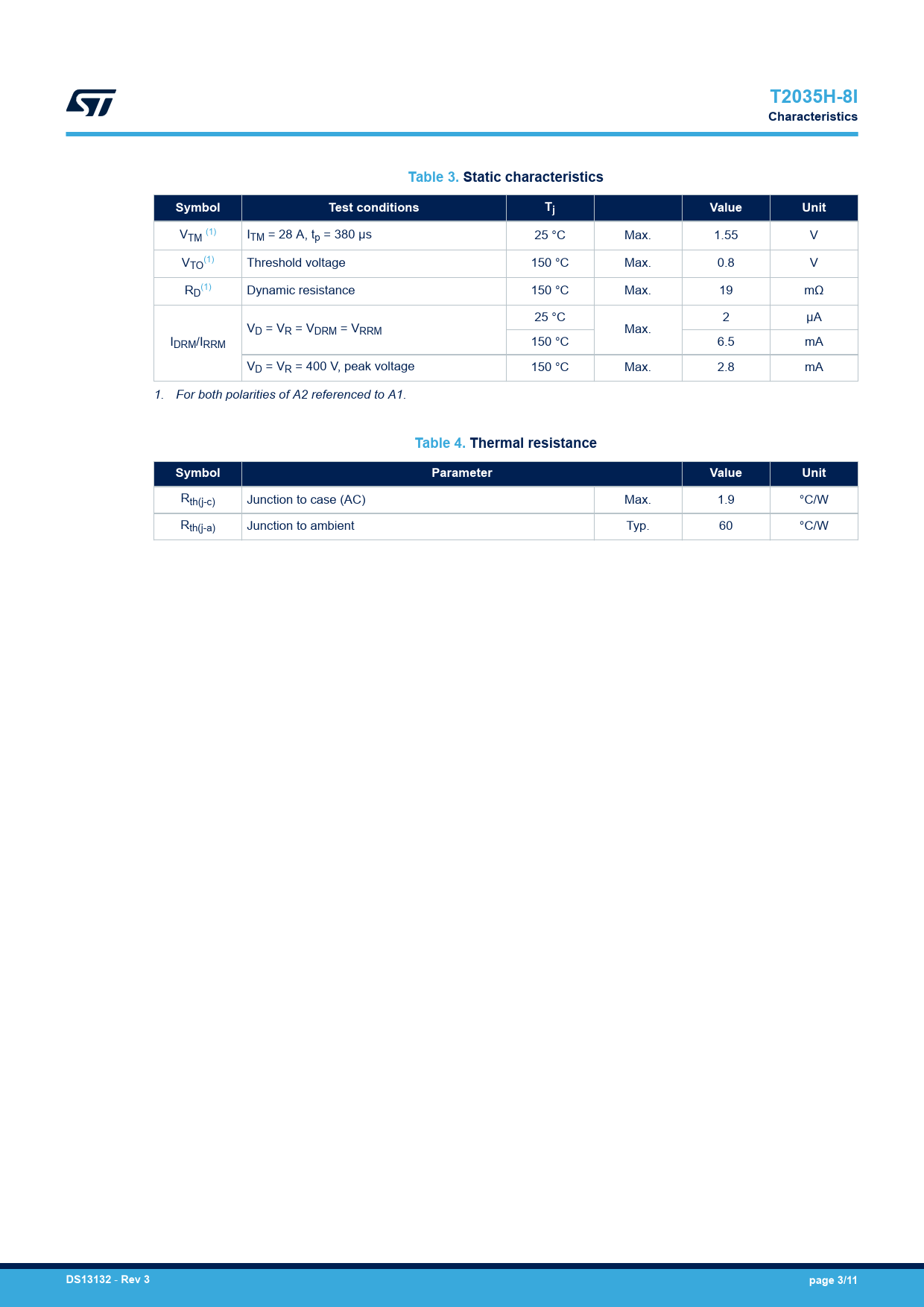

T2035H-8I Characteristics Table 3. Static characteristics Symbol Test conditions Tj Value Unit
VTM (1) ITM = 28 A, tp = 380 µs 25 °C Max. 1.55 V V (1) TO Threshold voltage 150 °C Max. 0.8 V R (1) D Dynamic resistance 150 °C Max. 19 mΩ 25 °C 2 µA VD = VR = VDRM = VRRM Max. IDRM/IRRM 150 °C 6.5 mA VD = VR = 400 V, peak voltage 150 °C Max. 2.8 mA 1. For both polarities of A2 referenced to A1.
Table 4. Thermal resistance Symbol Parameter Value Unit
Rth(j-c) Junction to case (AC) Max. 1.9 °C/W Rth(j-a) Junction to ambient Typ. 60 °C/W
DS13132
-
Rev 3 page 3/11
