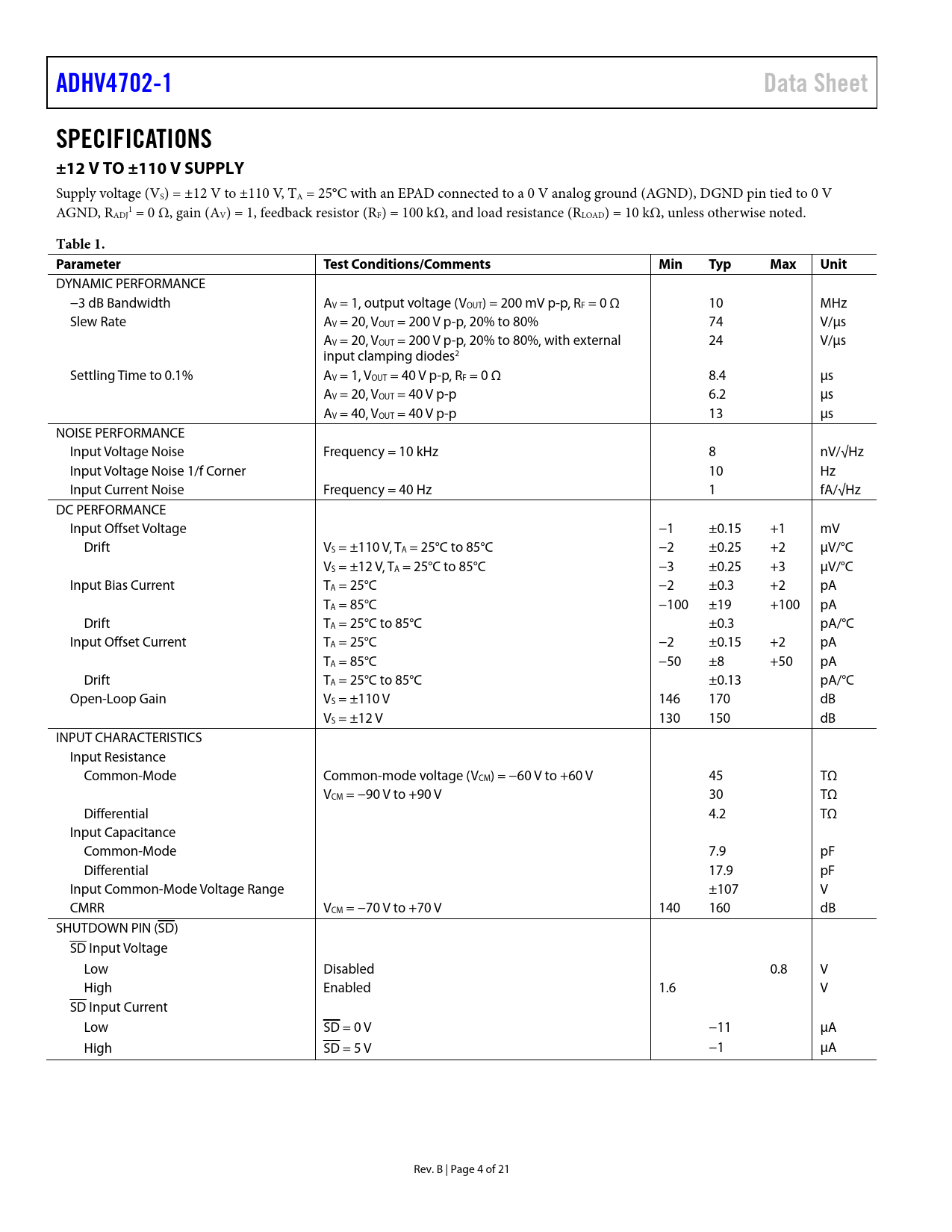

ADHV4702-1 Data Sheet SPECIFICATIONS ±12 V TO ±110 V SUPPLY
Supply voltage (VS) = ±12 V to ±110 V, TA = 25°C with an EPAD connected to a 0 V analog ground (AGND), DGND pin tied to 0 V AGND, R 1 ADJ = 0 Ω, gain (AV) = 1, feedback resistor (RF) = 100 kΩ, and load resistance (RLOAD) = 10 kΩ, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth AV = 1, output voltage (VOUT) = 200 mV p-p, RF = 0 Ω 10 MHz Slew Rate AV = 20, VOUT = 200 V p-p, 20% to 80% 74 V/μs AV = 20, VOUT = 200 V p-p, 20% to 80%, with external 24 V/μs input clamping diodes2 Settling Time to 0.1% AV = 1, VOUT = 40 V p-p, RF = 0 Ω 8.4 μs AV = 20, VOUT = 40 V p-p 6.2 μs AV = 40, VOUT = 40 V p-p 13 μs NOISE PERFORMANCE Input Voltage Noise Frequency = 10 kHz 8 nV/√Hz Input Voltage Noise 1/f Corner 10 Hz Input Current Noise Frequency = 40 Hz 1 fA/√Hz DC PERFORMANCE Input Offset Voltage −1 ±0.15 +1 mV Drift VS = ±110 V, TA = 25°C to 85°C −2 ±0.25 +2 μV/°C VS = ±12 V, TA = 25°C to 85°C −3 ±0.25 +3 μV/°C Input Bias Current TA = 25°C −2 ±0.3 +2 pA TA = 85°C −100 ±19 +100 pA Drift TA = 25°C to 85°C ±0.3 pA/°C Input Offset Current TA = 25°C −2 ±0.15 +2 pA TA = 85°C −50 ±8 +50 pA Drift TA = 25°C to 85°C ±0.13 pA/°C Open-Loop Gain VS = ±110 V 146 170 dB VS = ±12 V 130 150 dB INPUT CHARACTERISTICS Input Resistance Common-Mode Common-mode voltage (VCM) = −60 V to +60 V 45 TΩ VCM = −90 V to +90 V 30 TΩ Differential 4.2 TΩ Input Capacitance Common-Mode 7.9 pF Differential 17.9 pF Input Common-Mode Voltage Range ±107 V CMRR VCM = −70 V to +70 V 140 160 dB SHUTDOWN PIN (SD) SD Input Voltage Low Disabled 0.8 V High Enabled 1.6 V SD Input Current Low SD = 0 V −11 μA High SD = 5 V −1 μA Rev. B | Page 4 of 21 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TYPICAL APPLICATION CIRCUIT TABLE OF CONTENTS REVISION HISTORY FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS ±12 V TO ±110 V SUPPLY ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INTERNAL ELECTROSTATIC DISCHARGE (ESD) PROTECTION SLEW BOOST CIRCUIT AND PROTECTION DIGITAL GROUND (DGND) RESISTOR ADJUSTABLE QUIESCENT CURRENT (RADJ) SHUTDOWN PIN (SDB) TEMPERATURE MONITOR (TMP) OVERTEMPERATURE PROTECTION OUTPUT CURRENT DRIVE AND SHORT-CIRCUIT PROTECTION EXTERNAL COMPENSATION AND CAPACITIVE LOAD (CLOAD) DRIVING SAFE OPERATING AREA LFCSP PACKAGE AND HIGH VOLTAGE PIN SPACING EXPOSED PAD (EPAD) APPLICATIONS INFORMATION POWER SUPPLY AND DECOUPLING HIGH VOLTAGE GUARD RING HIGH VOLTAGE DAC VOLTAGE SUBTRACTOR HIGH CURRENT OUTPUT DRIVER SIGNAL RANGE EXTENDER OUTLINE DIMENSIONS ORDERING GUIDE
