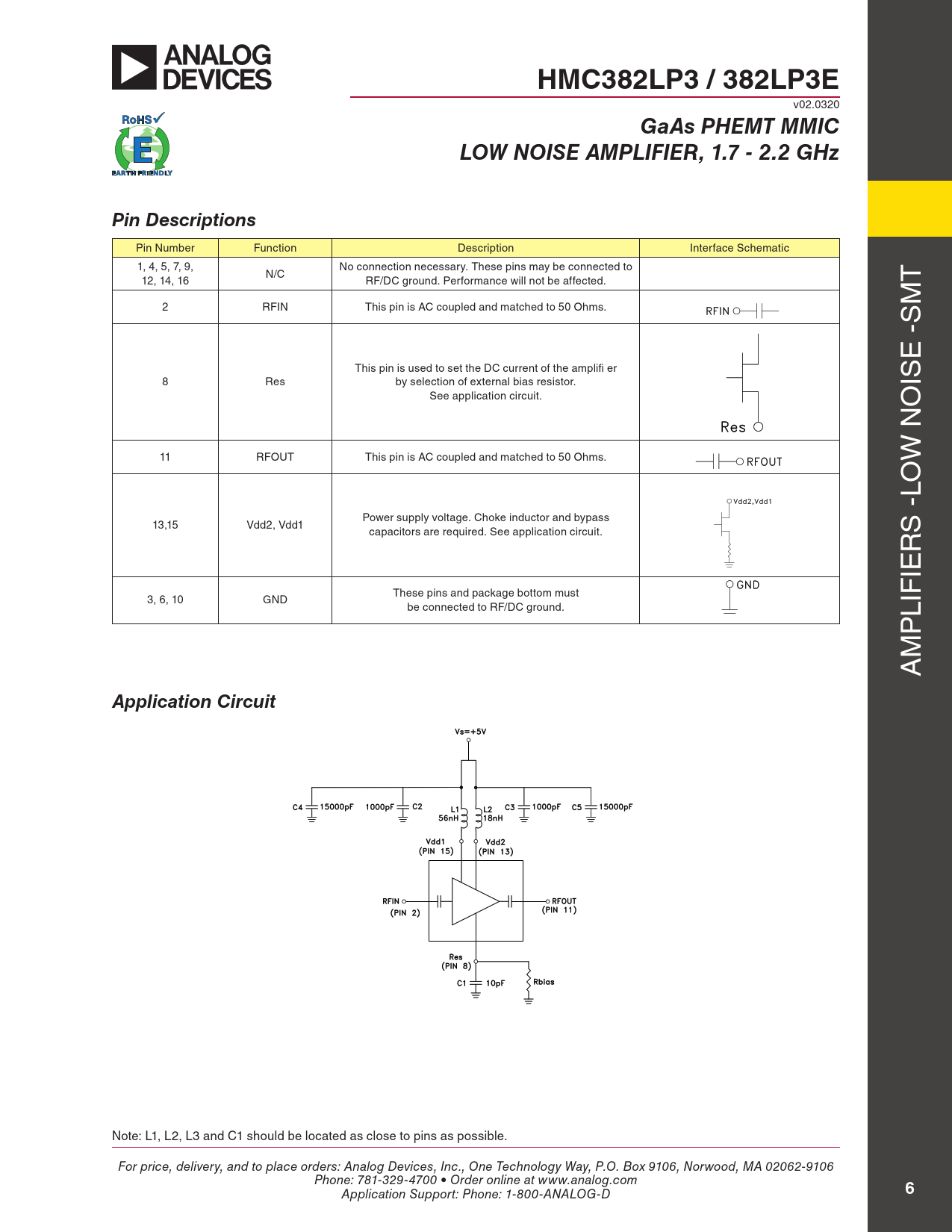

HMC382LP3 / 382LP3E. GaAs PHEMT MMIC. LOW NOISE AMPLIFIER, 1.7 - 2.2 GHz. Pin Descriptions. Application Circuit
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC382LP3 / 382LP3E
v02.0320
GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 1.7 - 2.2 GHz Pin Descriptions
Pin Number Function Description Interface Schematic 1, 4, 5, 7, 9, No connection necessary. These pins may be connected to N/C 12, 14, 16 RF/DC ground. Performance will not be affected. T 2 RFIN This pin is AC coupled and matched to 50 Ohms. M S - E This pin is used to set the DC current of the amplifi er 8 Res by selection of external bias resistor. IS See application circuit. O N 11 RFOUT This pin is AC coupled and matched to 50 Ohms. W LO - Power supply voltage. Choke inductor and bypass 13,15 Vdd2, Vdd1 capacitors are required. See application circuit. S R IE These pins and package bottom must 3, 6, 10 GND be connected to RF/DC ground. LIF P M A
Application Circuit
Note: L1, L2, L3 and C1 should be located as close to pins as possible. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
