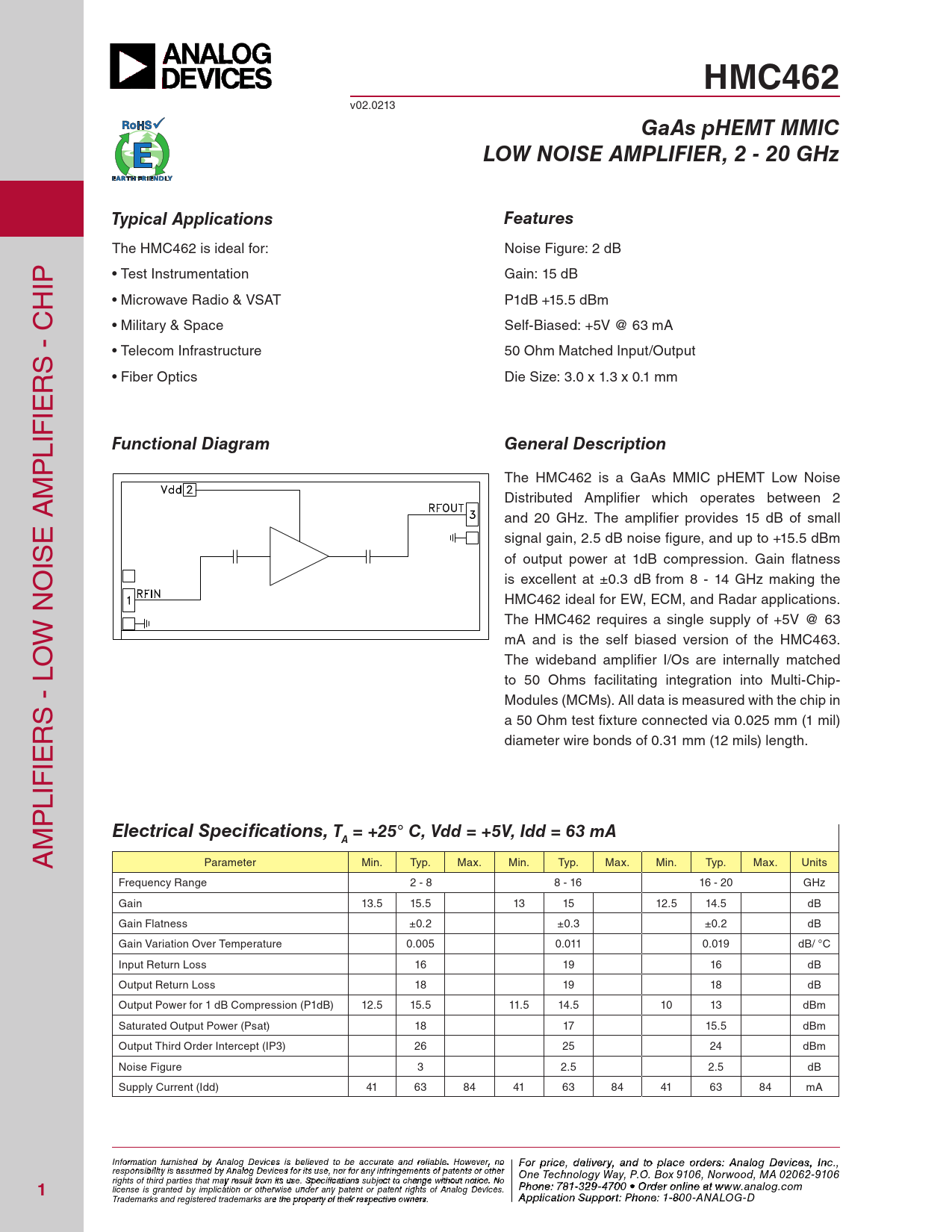

HMC462
v02.0213
GaAs pHEMT MMIC LOW NOISE AMPLIFIER, 2 - 20 GHz Typical Applications Features
The hmC462 is ideal for: Noise figure: 2 dB ip • Test instrumentation Gain: 15 dB h • microwave radio & VsAT p1dB +15.5 dBm C • military & space self-Biased: +5V @ 63 mA - s • Telecom infrastructure 50 ohm matched input/output r • fiber optics Die size: 3.0 x 1.3 x 0.1 mm ie lif
Functional Diagram General Description
p m The hmC462 is a GaAs mmiC phemT low Noise Distributed Amplifier which operates between 2 A and 20 Ghz. The amplifier provides 15 dB of small e signal gain, 2.5 dB noise figure, and up to +15.5 dBm is of output power at 1dB compression. Gain flatness o is excel ent at ±0.3 dB from 8 - 14 Ghz making the N hmC462 ideal for ew, eCm, and radar applications. The hmC462 requires a single supply of +5V @ 63 w mA and is the self biased version of the hmC463. The wideband amplifier i/os are internal y matched lo to 50 ohms facilitating integration into multi-Chip- - s modules (mCms). All data is measured with the chip in r a 50 ohm test fixture connected via 0.025 mm (1 mil) diameter wire bonds of 0.31 mm (12 mils) length. ie lif p m
Electrical Specifications, T = +25° C, Vdd = +5V, Idd = 63 mA A
A parameter min. Typ. max. min. Typ. max. min. Typ. max. Units frequency range 2 - 8 8 - 16 16 - 20 Ghz Gain 13.5 15.5 13 15 12.5 14.5 dB Gain flatness ±0.2 ±0.3 ±0.2 dB Gain Variation over Temperature 0.005 0.011 0.019 dB/ °C input return loss 16 19 16 dB output return loss 18 19 18 dB output power for 1 dB Compression (p1dB) 12.5 15.5 11.5 14.5 10 13 dBm saturated output power (psat) 18 17 15.5 dBm output Third order intercept (ip3) 26 25 24 dBm Noise figure 3 2.5 2.5 dB supply Current (idd) 41 63 84 41 63 84 41 63 84 mA Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m
