Datasheet HMC1121 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | 4 W, GaAs, pHEMT, MMIC Power Amplifier, 5.5 GHz to 8.5 GHz |
| Páginas / Página | 15 / 4 — HMC1121. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter Rating. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 393 Kb |
| Idioma del documento | Inglés |

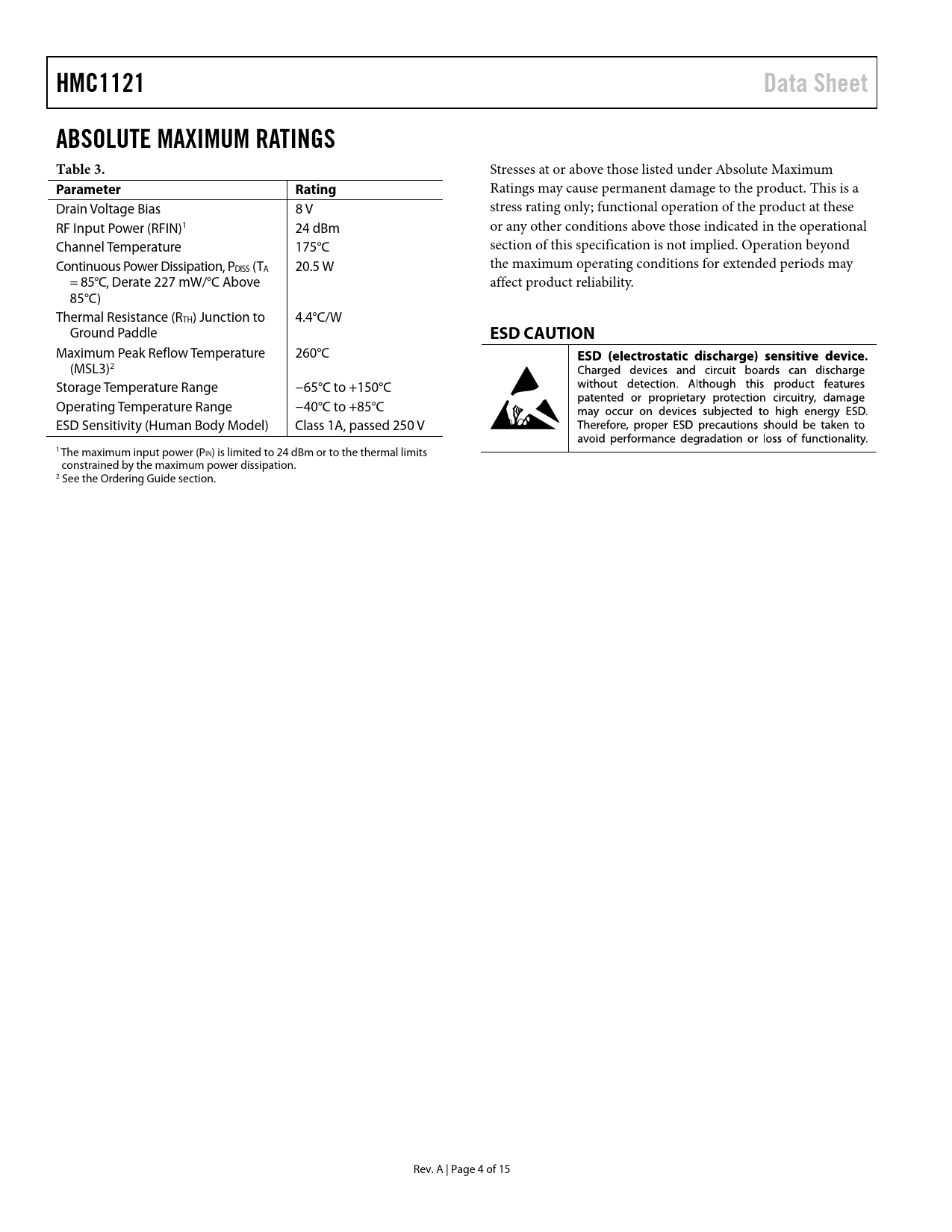

HMC1121. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 15
HMC1121 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Drain Voltage Bias 8 V stress rating only; functional operation of the product at these RF Input Power (RFIN)1 24 dBm or any other conditions above those indicated in the operational Channel Temperature 175°C section of this specification is not implied. Operation beyond Continuous Power Dissipation, P the maximum operating conditions for extended periods may DISS (TA 20.5 W = 85°C, Derate 227 mW/°C Above affect product reliability. 85°C) Thermal Resistance (RTH) Junction to 4.4°C/W Ground Paddle
ESD CAUTION
Maximum Peak Reflow Temperature 260°C (MSL3)2 Storage Temperature Range −65°C to +150°C Operating Temperature Range −40°C to +85°C ESD Sensitivity (Human Body Model) Class 1A, passed 250 V 1 The maximum input power (PIN) is limited to 24 dBm or to the thermal limits constrained by the maximum power dissipation. 2 See the Ordering Guide section. Rev. A | Page 4 of 15 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Electrical Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Recommended Bias Sequence During Power-Up During Power-Down Typical Application Circuit Evaluation Board Bill of Materials Evaluation Board Schematic Outline Dimensions Ordering Guide
