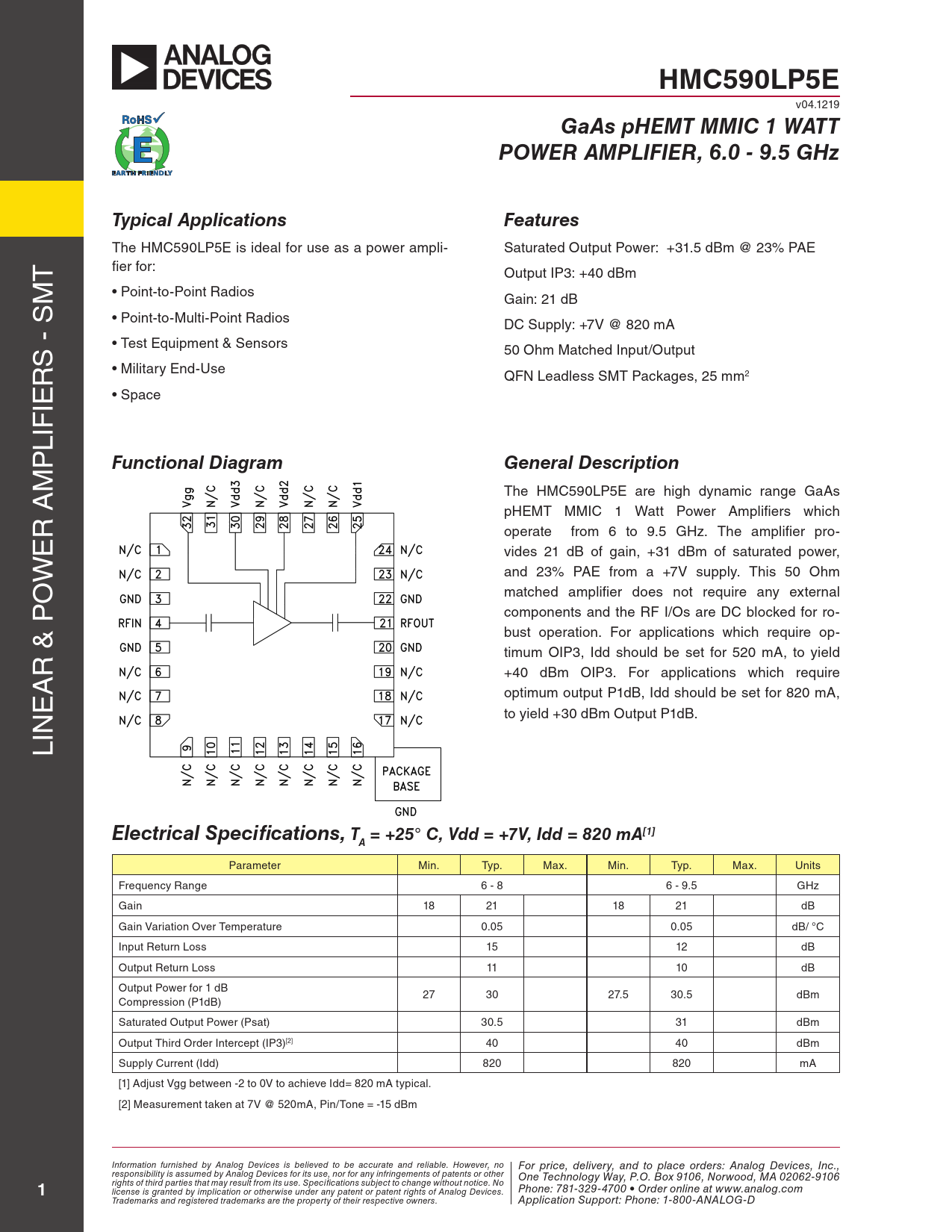

HMC590LP5E
v04.1219
GaAs pHEMT MMIC 1 WATT POWER AMPLIFIER, 6.0 - 9.5 GHz Typical Applications Features
The HMC590LP5E is ideal for use as a power ampli- Saturated Output Power: +31.5 dBm @ 23% PAE T fier for: Output IP3: +40 dBm M • Point-to-Point Radios Gain: 21 dB • Point-to-Multi-Point Radios DC Supply: +7V @ 820 mA S - S • Test Equipment & Sensors 50 Ohm Matched Input/Output R • Military End-Use QFN Leadless SMT Packages, 25 mm2 IE • Space LIF P
Functional Diagram General Description
M The HMC590LP5E are high dynamic range GaAs pHEMT MMIC 1 Watt Power Amplifiers which R A E operate from 6 to 9.5 GHz. The amplifier pro- vides 21 dB of gain, +31 dBm of saturated power, W and 23% PAE from a +7V supply. This 50 Ohm O matched amplifier does not require any external components and the RF I/Os are DC blocked for ro- bust operation. For applications which require op- R & P timum OIP3, Idd should be set for 520 mA, to yield A +40 dBm OIP3. For applications which require E optimum output P1dB, Idd should be set for 820 mA, to yield +30 dBm Output P1dB. LIN
Electrical Specifications, T = +25° C, Vdd = +7V, Idd = 820 mA[1] A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 6 - 8 6 - 9.5 GHz Gain 18 21 18 21 dB Gain Variation Over Temperature 0.05 0.05 dB/ °C Input Return Loss 15 12 dB Output Return Loss 11 10 dB Output Power for 1 dB 27 30 27.5 30.5 dBm Compression (P1dB) Saturated Output Power (Psat) 30.5 31 dBm Output Third Order Intercept (IP3)[2] 40 40 dBm Supply Current (Idd) 820 820 mA [1] Adjust Vgg between -2 to 0V to achieve Idd= 820 mA typical. [2] Measurement taken at 7V @ 520mA, Pin/Tone = -15 dBm I F nf o or r p mati roic n e fu , d rnis e h leiv d e b ry y , a Analn o d t g D o p evic leac s i e o s bel rid ev e e rs d t : A o b n e a a lco c g D urat e e a v n ic d re elsi, I abl n e c . H , O owe n vee T r, n e o chn F o o lo r p g ri y W ce a , d y el, P ive.O ry . B , anox 9 d t 10 o pl 6 a , N c o e orrw de o r o s d, M : Anal A 0 o 2 g D 0 e 6 vi 2 c - e 9 s 10 , I 6 nc., responsibility is assumed by Analog Devices for it P s u h se on , no er f: 78 or an 1- y i 3 nfr2in9g-e4 m 7 e 0 nt 0 • O s of paterd nt e s or o r ot n h leir rights of third parties that may result from its use. Specifications subject to change without notice. No ne a O t w n w e Te w ch.a n n ol a o lgog. y Wcao y m , P.O. Box 9106, Norwood, MA 02062-9106
