9 MM5600 - 40 Gbps DPDT Differential Switch

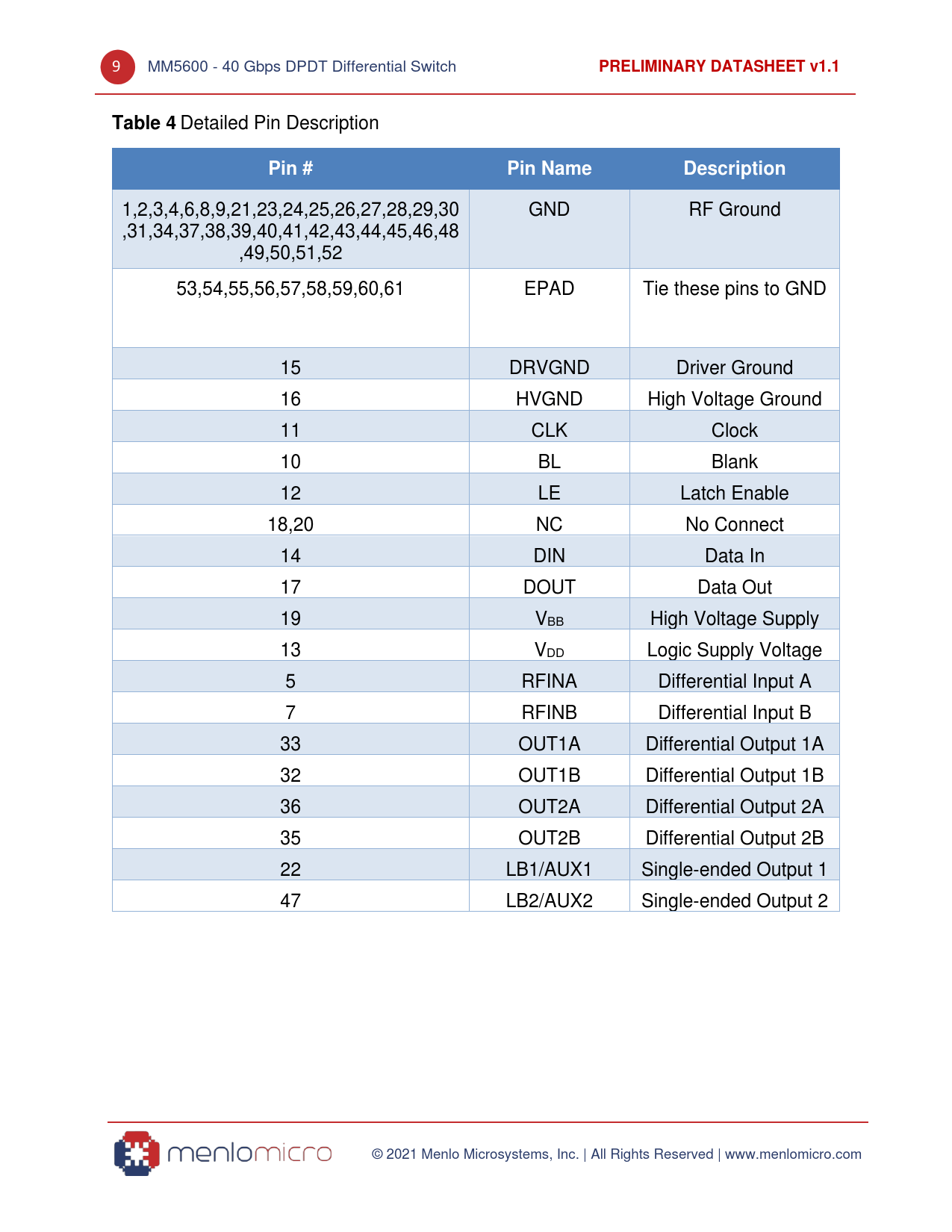

PRELIMINARY DATASHEET v1.1 Table 4
Detailed Pin Description
Pin # Pin Name Description
1,2,3,4,6,8,9,21,23,24,25,26,27,28,29,30 GND RF Ground ,31,34,37,38,39,40,41,42,43,44,45,46,48 ,49,50,51,52 53,54,55,56,57,58,59,60,61 EPAD Tie these pins to GND 15 DRVGND Driver Ground 16 HVGND High Voltage Ground 11 CLK Clock 10 BL Blank 12 LE Latch Enable 18,20 NC No Connect 14 DIN Data In 17 DOUT Data Out 19 VBB High Voltage Supply 13 VDD Logic Supply Voltage 5 RFINA Differential Input A 7 RFINB Differential Input B 33 OUT1A Differential Output 1A 32 OUT1B Differential Output 1B 36 OUT2A Differential Output 2A 35 OUT2B Differential Output 2B 22 LB1/AUX1 Single-ended Output 1 47 LB2/AUX2 Single-ended Output 2
