Nexperia. 74HC4060; 74HCT4060. 14-stage binary ripple counter with oscillator. Symbol Parameter. Conditions. 25 °C. -40 °C to. Unit
Línea de modelo para esta hoja de datos
74HC4060
Versión de texto del documento
link to page 7 link to page 7

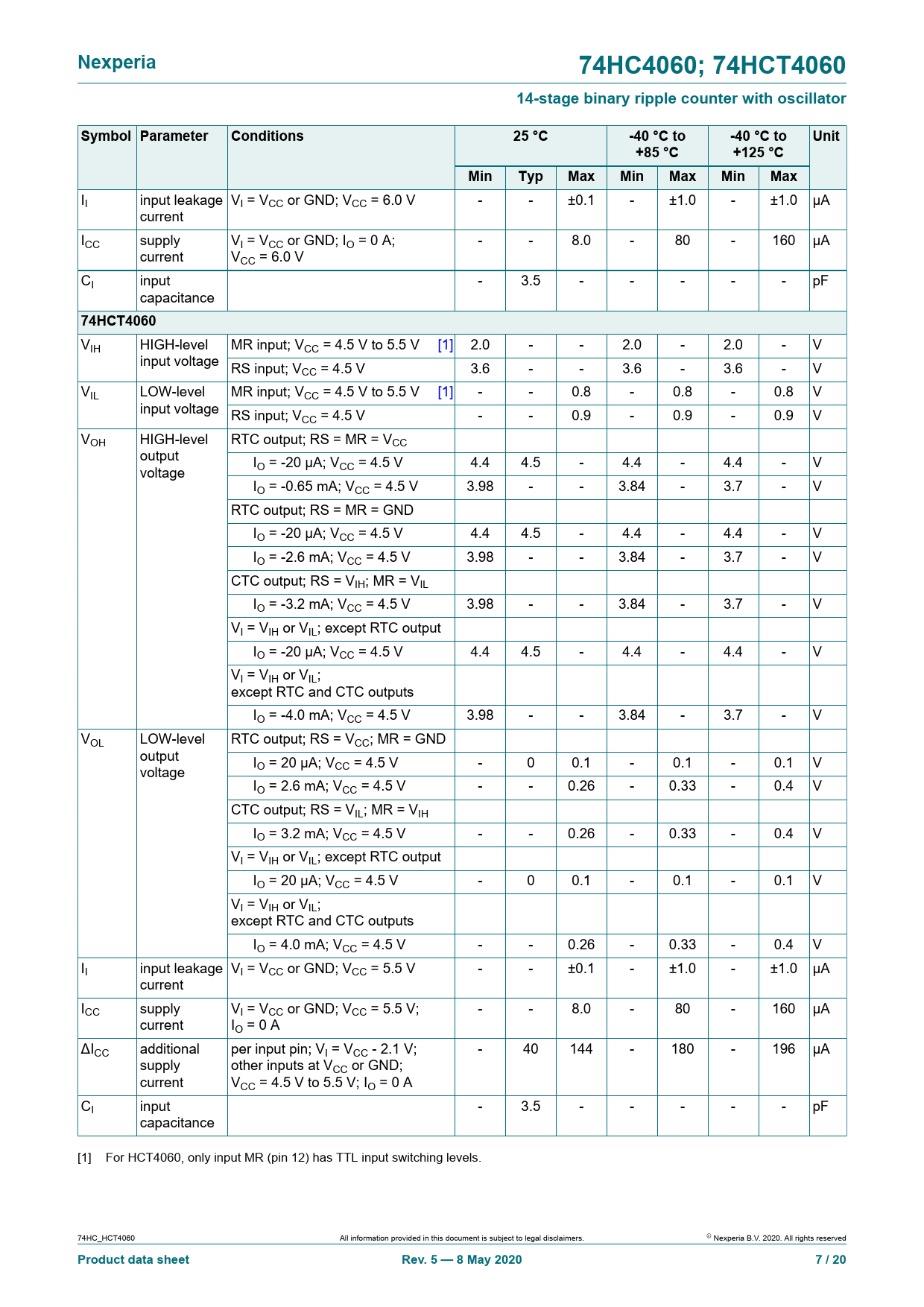

Nexperia 74HC4060; 74HCT4060 14-stage binary ripple counter with oscillator Symbol Parameter Conditions 25 °C -40 °C to -40 °C to Unit +85 °C +125 °C Min Typ Max Min Max Min Max
II input leakage VI = VCC or GND; VCC = 6.0 V - - ±0.1 - ±1.0 - ±1.0 μA current ICC supply VI = VCC or GND; IO = 0 A; - - 8.0 - 80 - 160 μA current VCC = 6.0 V CI input - 3.5 - - - - - pF capacitance
74HCT4060
VIH HIGH-level MR input; VCC = 4.5 V to 5.5 V [1] 2.0 - - 2.0 - 2.0 - V input voltage RS input; VCC = 4.5 V 3.6 - - 3.6 - 3.6 - V VIL LOW-level MR input; VCC = 4.5 V to 5.5 V [1] - - 0.8 - 0.8 - 0.8 V input voltage RS input; VCC = 4.5 V - - 0.9 - 0.9 - 0.9 V VOH HIGH-level RTC output; RS = MR = VCC output IO = -20 μA; VCC = 4.5 V 4.4 4.5 - 4.4 - 4.4 - V voltage IO = -0.65 mA; VCC = 4.5 V 3.98 - - 3.84 - 3.7 - V RTC output; RS = MR = GND IO = -20 μA; VCC = 4.5 V 4.4 4.5 - 4.4 - 4.4 - V IO = -2.6 mA; VCC = 4.5 V 3.98 - - 3.84 - 3.7 - V CTC output; RS = VIH; MR = VIL IO = -3.2 mA; VCC = 4.5 V 3.98 - - 3.84 - 3.7 - V VI = VIH or VIL; except RTC output IO = -20 μA; VCC = 4.5 V 4.4 4.5 - 4.4 - 4.4 - V VI = VIH or VIL; except RTC and CTC outputs IO = -4.0 mA; VCC = 4.5 V 3.98 - - 3.84 - 3.7 - V VOL LOW-level RTC output; RS = VCC; MR = GND output IO = 20 μA; VCC = 4.5 V - 0 0.1 - 0.1 - 0.1 V voltage IO = 2.6 mA; VCC = 4.5 V - - 0.26 - 0.33 - 0.4 V CTC output; RS = VIL; MR = VIH IO = 3.2 mA; VCC = 4.5 V - - 0.26 - 0.33 - 0.4 V VI = VIH or VIL; except RTC output IO = 20 μA; VCC = 4.5 V - 0 0.1 - 0.1 - 0.1 V VI = VIH or VIL; except RTC and CTC outputs IO = 4.0 mA; VCC = 4.5 V - - 0.26 - 0.33 - 0.4 V II input leakage VI = VCC or GND; VCC = 5.5 V - - ±0.1 - ±1.0 - ±1.0 μA current ICC supply VI = VCC or GND; VCC = 5.5 V; - - 8.0 - 80 - 160 μA current IO = 0 A ΔICC additional per input pin; VI = VCC - 2.1 V; - 40 144 - 180 - 196 μA supply other inputs at VCC or GND; current VCC = 4.5 V to 5.5 V; IO = 0 A CI input - 3.5 - - - - - pF capacitance [1] For HCT4060, only input MR (pin 12) has TTL input switching levels. 74HC_HCT4060 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet Rev. 5 — 8 May 2020 7 / 20
