Datasheet 74HC4060, 74HCT4060 (NXP) - 8
| Fabricante | NXP |
| Descripción | 14-stage binary ripple counter with oscillator |
| Páginas / Página | 20 / 8 — Nexperia. 74HC4060; 74HCT4060. 14-stage binary ripple counter with … |
| Formato / tamaño de archivo | PDF / 324 Kb |
| Idioma del documento | Inglés |
Nexperia. 74HC4060; 74HCT4060. 14-stage binary ripple counter with oscillator
Línea de modelo para esta hoja de datos
74HC4060
Versión de texto del documento
link to page 11 link to page 10 link to page 9 link to page 10 link to page 9 link to page 10 link to page 10 link to page 9 link to page 10 link to page 10 link to page 10

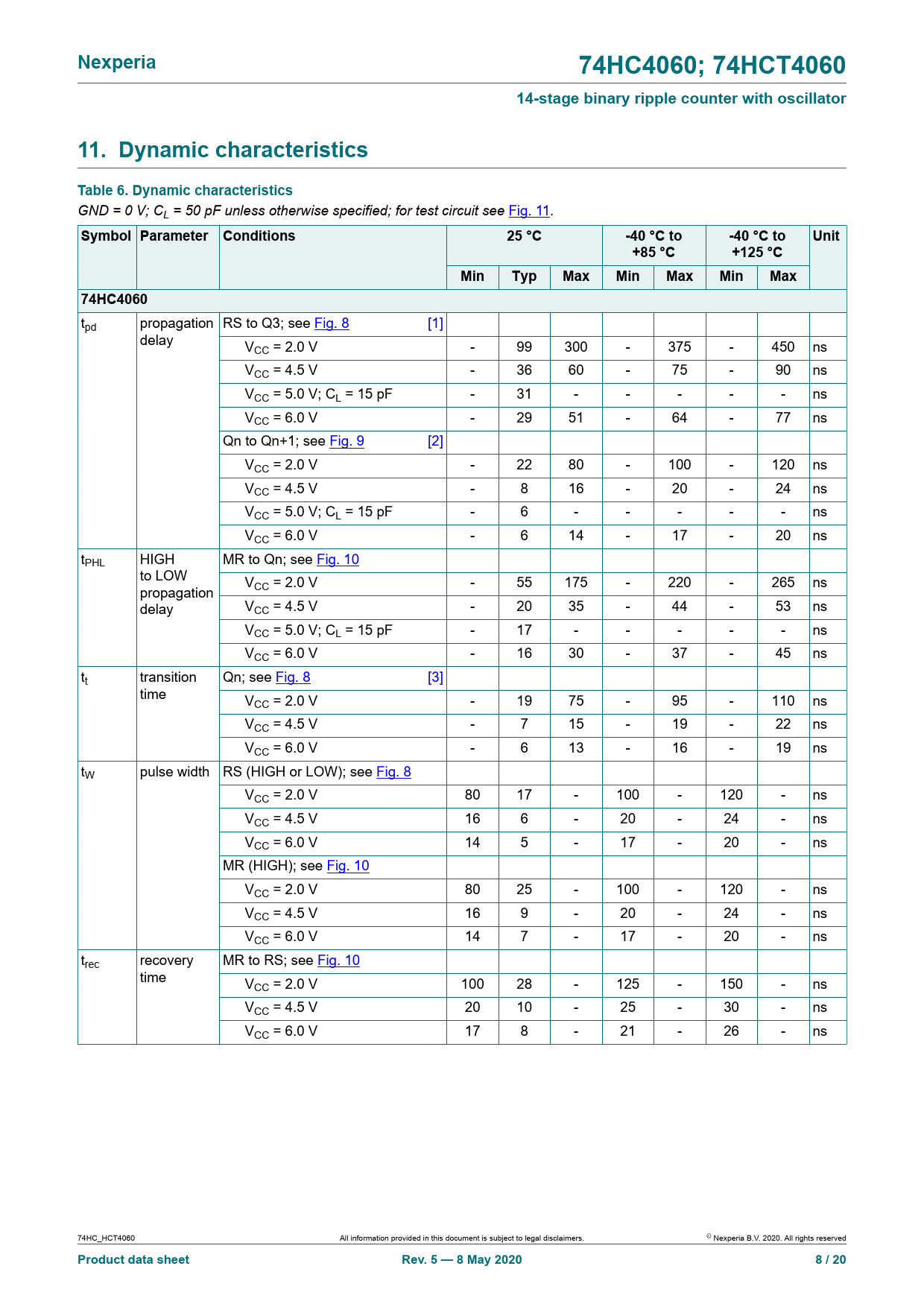

Nexperia 74HC4060; 74HCT4060 14-stage binary ripple counter with oscillator 11. Dynamic characteristics Table 6. Dynamic characteristics
GND = 0 V; CL = 50 pF unless otherwise specified; for test circuit see Fig. 11.
Symbol Parameter Conditions 25 °C -40 °C to -40 °C to Unit +85 °C +125 °C Min Typ Max Min Max Min Max 74HC4060
tpd propagation RS to Q3; see Fig. 8 [1] delay VCC = 2.0 V - 99 300 - 375 - 450 ns VCC = 4.5 V - 36 60 - 75 - 90 ns VCC = 5.0 V; CL = 15 pF - 31 - - - - - ns VCC = 6.0 V - 29 51 - 64 - 77 ns Qn to Qn+1; see Fig. 9 [2] VCC = 2.0 V - 22 80 - 100 - 120 ns VCC = 4.5 V - 8 16 - 20 - 24 ns VCC = 5.0 V; CL = 15 pF - 6 - - - - - ns VCC = 6.0 V - 6 14 - 17 - 20 ns tPHL HIGH MR to Qn; see Fig. 10 to LOW VCC = 2.0 V - 55 175 - 220 - 265 ns propagation delay VCC = 4.5 V - 20 35 - 44 - 53 ns VCC = 5.0 V; CL = 15 pF - 17 - - - - - ns VCC = 6.0 V - 16 30 - 37 - 45 ns tt transition Qn; see Fig. 8 [3] time VCC = 2.0 V - 19 75 - 95 - 110 ns VCC = 4.5 V - 7 15 - 19 - 22 ns VCC = 6.0 V - 6 13 - 16 - 19 ns tW pulse width RS (HIGH or LOW); see Fig. 8 VCC = 2.0 V 80 17 - 100 - 120 - ns VCC = 4.5 V 16 6 - 20 - 24 - ns VCC = 6.0 V 14 5 - 17 - 20 - ns MR (HIGH); see Fig. 10 VCC = 2.0 V 80 25 - 100 - 120 - ns VCC = 4.5 V 16 9 - 20 - 24 - ns VCC = 6.0 V 14 7 - 17 - 20 - ns trec recovery MR to RS; see Fig. 10 time VCC = 2.0 V 100 28 - 125 - 150 - ns VCC = 4.5 V 20 10 - 25 - 30 - ns VCC = 6.0 V 17 8 - 21 - 26 - ns 74HC_HCT4060 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet Rev. 5 — 8 May 2020 8 / 20
