EiceDRIVER™ 1EDBx275F Single-channel isolated gate-driver ICs in 150 mil DSO package Functional description

EiceDRIVER™ 1EDBx275F Single-channel isolated gate-driver ICs in 150 mil DSO package Functional description

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 5

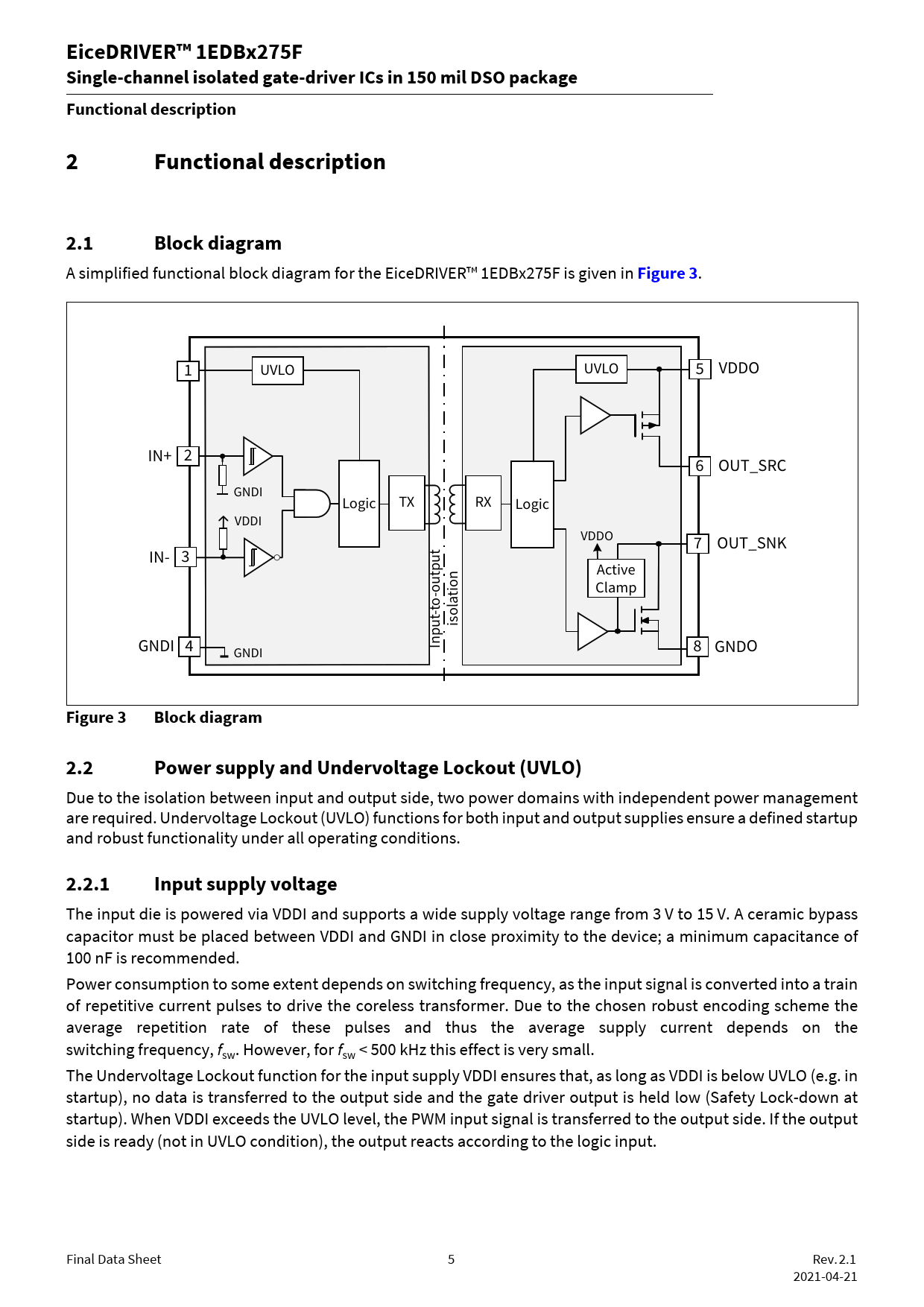

EiceDRIVER™ 1EDBx275F Single-channel isolated gate-driver ICs in 150 mil DSO package Functional description 2 Functional description 2.1 Block diagram
A simplified functional block diagram for the EiceDRIVER™ 1EDBx275F is given in
Figure 3
. 1 UVLO UVLO 5 VDDO IN+ 2 6 OUT_SRC GNDI Logic TX RX Logic VDDI VDDO 7 OUT_SNK IN- 3 Active tion Clamp -to-output isola GNDI 4 Input 8 GNDO GNDI
Figure 3 Block diagram 2.2 Power supply and Undervoltage Lockout (UVLO)
Due to the isolation between input and output side, two power domains with independent power management are required. Undervoltage Lockout (UVLO) functions for both input and output supplies ensure a defined startup and robust functionality under all operating conditions.
