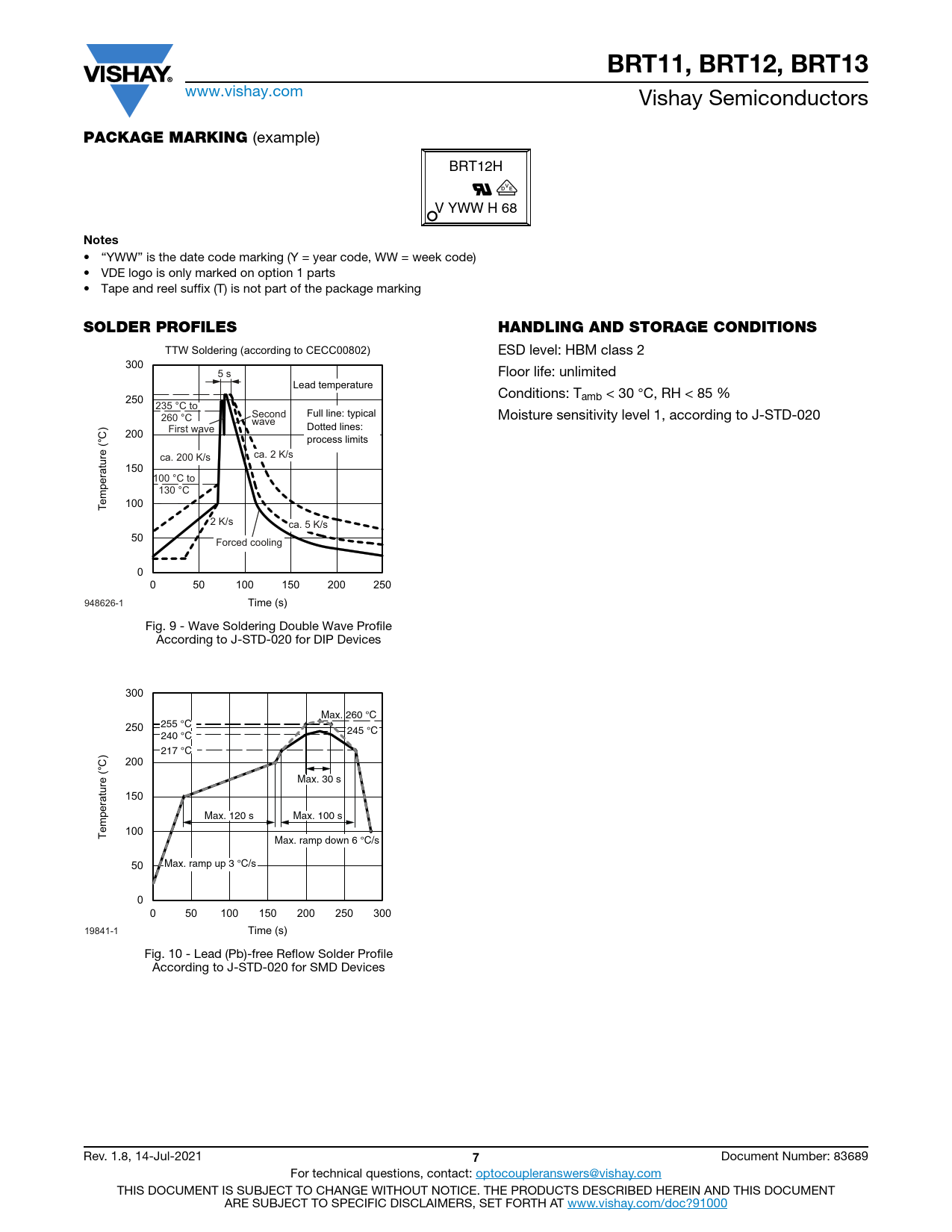

BRT11, BRT12, BRT13. PACKAGE MARKING. Notes. SOLDER PROFILES. HANDLING AND STORAGE CONDITIONS
Línea de modelo para esta hoja de datos
Versión de texto del documento
BRT11, BRT12, BRT13
www.vishay.com Vishay Semiconductors
PACKAGE MARKING
(example) BRT12H V YWW H 68
Notes
• “YWW” is the date code marking (Y = year code, WW = week code) • VDE logo is only marked on option 1 parts • Tape and reel suffix (T) is not part of the package marking
SOLDER PROFILES HANDLING AND STORAGE CONDITIONS
TTW Soldering (according to CECC00802) ESD level: HBM class 2 300 10000 5 s Floor life: unlimited Lead temperature Conditions: Tamb < 30 °C, RH < 85 % 250 235 °C to Second Full line: typical 260 °C Moisture sensitivity level 1, according to J-STD-020 wave First wave Dotted lines: 200 1000 process limits ca. 200 K/s ca. 2 K/s ne ine ne 150 100 °C to 1st li 2nd l 2nd li 130 °C 100 100 Temperature (°C) 2 K/s ca. 5 K/s 50 Forced cooling 0 10 0 50 100 150 200 250 948626-1 Time (s) Fig. 9 - Wave Soldering Double Wave Profile According to J-STD-020 for DIP Devices Axis Title 300 10000 Max. 260 °C 255 °C 250 245 °C 240 °C 217 °C 200 1000 Max. 30 s ine ne ne 150 1st li 2nd l 2nd li Max. 120 s Max. 100 s 100 100 Temperature (°C) Max. ramp down 6 °C/s 50 Max. ramp up 3 °C/s 0 10 0 50 100 150 200 250 300 19841-1 Time (s) Fig. 10 - Lead (Pb)-free Reflow Solder Profile According to J-STD-020 for SMD Devices Rev. 1.8, 14-Jul-2021
7
Document Number: 83689 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
