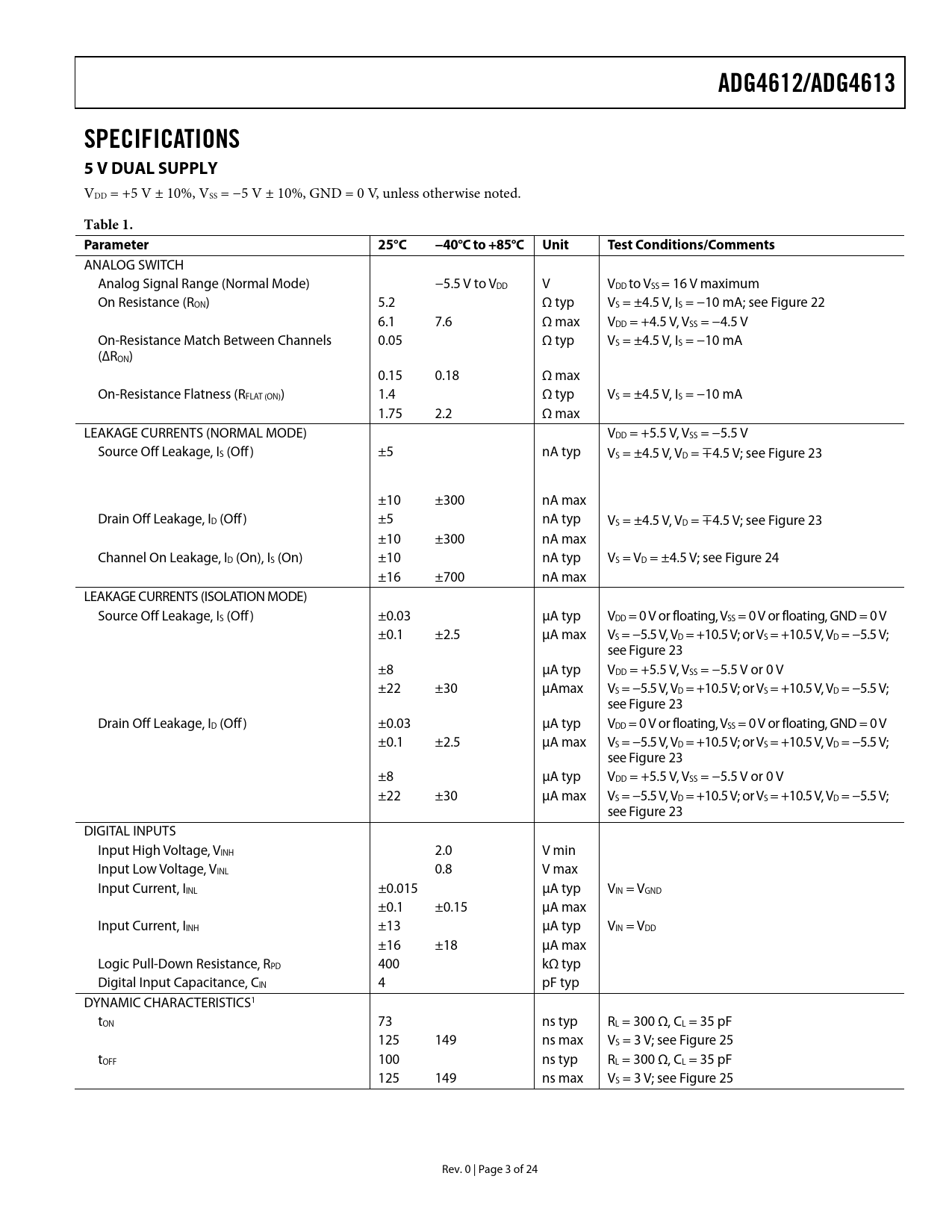

ADG4612/ADG4613 SPECIFICATIONS 5 V DUAL SUPPLY
VDD = +5 V ± 10%, VSS = −5 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Parameter 25°C −40°C to +85°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range (Normal Mode) −5.5 V to VDD V VDD to VSS = 16 V maximum On Resistance (RON) 5.2 Ω typ VS = ±4.5 V, IS = −10 mA; see Figure 22 6.1 7.6 Ω max VDD = +4.5 V, VSS = −4.5 V On-Resistance Match Between Channels 0.05 Ω typ VS = ±4.5 V, IS = −10 mA (∆RON) 0.15 0.18 Ω max On-Resistance Flatness (RFLAT (ON)) 1.4 Ω typ VS = ±4.5 V, IS = −10 mA 1.75 2.2 Ω max LEAKAGE CURRENTS (NORMAL MODE) VDD = +5.5 V, VSS = −5.5 V Source Off Leakage, IS (Off ) ±5 nA typ VS = ±4.5 V, VD = ט4.5 V; see Figure 23 ±10 ±300 nA max Drain Off Leakage, ID (Off ) ±5 nA typ VS = ±4.5 V, VD = ט4.5 V; see Figure 23 ±10 ±300 nA max Channel On Leakage, ID (On), IS (On) ±10 nA typ VS = VD = ±4.5 V; see Figure 24 ±16 ±700 nA max LEAKAGE CURRENTS (ISOLATION MODE) Source Off Leakage, IS (Off ) ±0.03 μA typ VDD = 0 V or floating, VSS = 0 V or floating, GND = 0 V ±0.1 ±2.5 μA max VS = −5.5 V, VD = +10.5 V; or VS = +10.5 V, VD = −5.5 V; see Figure 23 ±8 μA typ VDD = +5.5 V, VSS = −5.5 V or 0 V ±22 ±30 μAmax VS = −5.5 V, VD = +10.5 V; or VS = +10.5 V, VD = −5.5 V; see Figure 23 Drain Off Leakage, ID (Off ) ±0.03 μA typ VDD = 0 V or floating, VSS = 0 V or floating, GND = 0 V ±0.1 ±2.5 μA max VS = −5.5 V, VD = +10.5 V; or VS = +10.5 V, VD = −5.5 V; see Figure 23 ±8 μA typ VDD = +5.5 V, VSS = −5.5 V or 0 V ±22 ±30 μA max VS = −5.5 V, VD = +10.5 V; or VS = +10.5 V, VD = −5.5 V; see Figure 23 DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL ±0.015 μA typ VIN = VGND ±0.1 ±0.15 μA max Input Current, IINH ±13 μA typ VIN = VDD ±16 ±18 μA max Logic Pull-Down Resistance, RPD 400 kΩ typ Digital Input Capacitance, CIN 4 pF typ DYNAMIC CHARACTERISTICS1 tON 73 ns typ RL = 300 Ω, CL = 35 pF 125 149 ns max VS = 3 V; see Figure 25 tOFF 100 ns typ RL = 300 Ω, CL = 35 pF 125 149 ns max VS = 3 V; see Figure 25 Rev. 0 | Page 3 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS SPECIFICATIONS 5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, SX OR DX POWER SUPPLY OPERATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION Normal Mode Isolation Mode Positive Fault Condition Negative Fault Condition; Negative Signal Handling APPLICATIONS INFORMATION Power Supply Sequencing OUTLINE DIMENSIONS ORDERING GUIDE
