Datasheet ADG1406, ADG1407 (Analog Devices)

FabricanteAnalog Devices
Descripción9.5 Ω RON, 16-Channel, Differential 8-Channel, ±15 V/+12 V/±5 V iCMOS Multiplexers
Páginas / Página20 / 1 — 9.5 Ω RON, 16-Channel, Differential 8-Channel,. ±15 V/+12 V/±5 V i. CMOS …
RevisiónC
Formato / tamaño de archivoPDF / 511 Kb
Idioma del documentoInglés

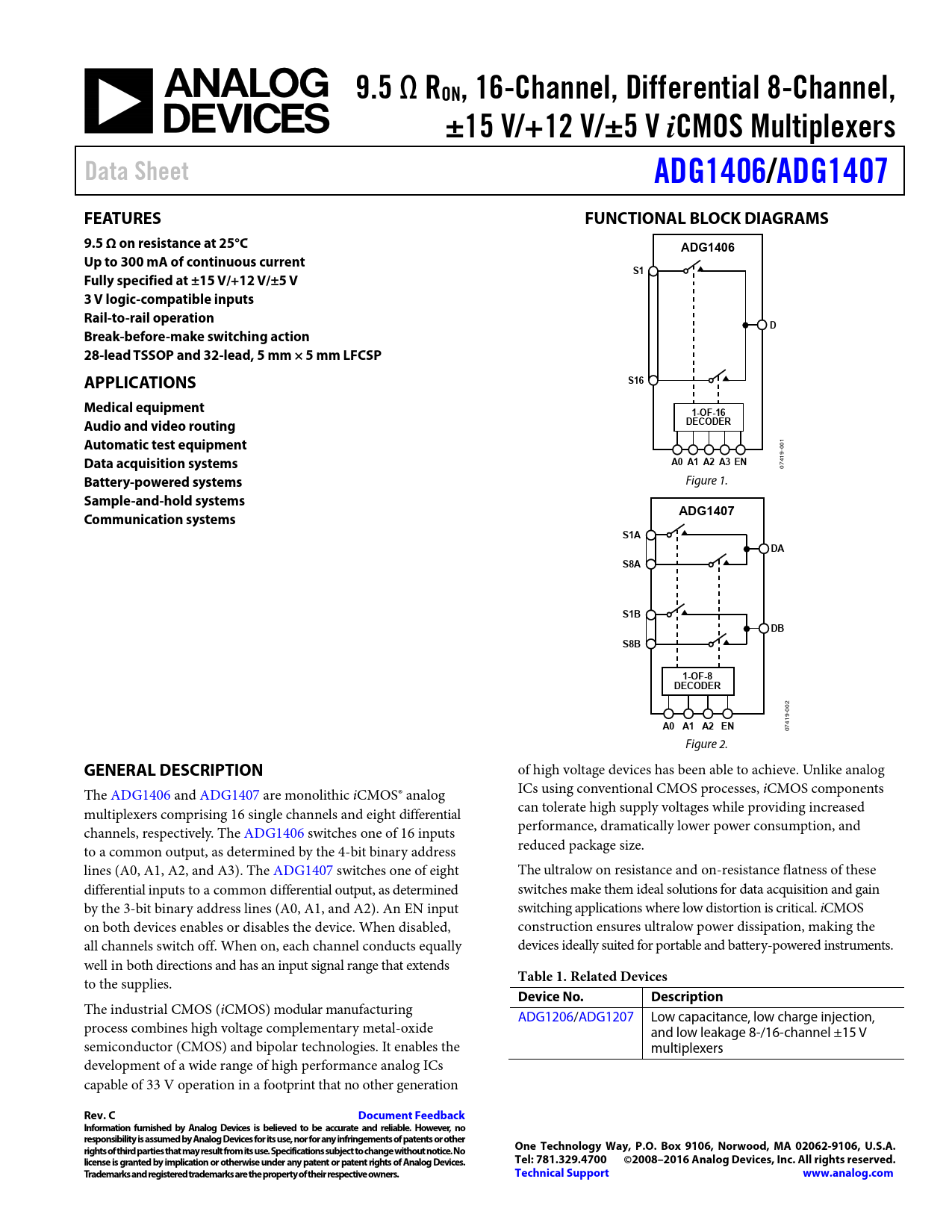

9.5 Ω RON, 16-Channel, Differential 8-Channel,. ±15 V/+12 V/±5 V i. CMOS Multiplexers. Data Sheet. ADG1406/. ADG1407. FEATURES

Datasheet ADG1406, ADG1407 Analog Devices, Revisión: C

Línea de modelo para esta hoja de datos

Versión de texto del documento

9.5 Ω RON, 16-Channel, Differential 8-Channel, ±15 V/+12 V/±5 V i CMOS Multiplexers Data Sheet ADG1406/ ADG1407 FEATURES FUNCTIONAL BLOCK DIAGRAMS 9.5 Ω on resistance at 25°C ADG1406 Up to 300 mA of continuous current S1 Fully specified at ±15 V/+12 V/±5 V 3 V logic-compatible inputs Rail-to-rail operation D Break-before-make switching action 28-lead TSSOP and 32-lead, 5 mm × 5 mm LFCSP APPLICATIONS S16 Medical equipment 1-OF-16 Audio and video routing DECODER Automatic test equipment
1 00 9-
Data acquisition systems A0 A1 A2 A3 EN
0741
Battery-powered systems
Figure 1.
Sample-and-hold systems ADG1407 Communication systems S1A DA S8A S1B DB S8B 1-OF-8 DECODER
-002
A0 A1 A2 EN
7419 0 Figure 2.
GENERAL DESCRIPTION
of high voltage devices has been able to achieve. Unlike analog The ADG1406 and ADG1407 are monolithic iCMOS® analog ICs using conventional CMOS processes, iCMOS components multiplexers comprising 16 single channels and eight differential can tolerate high supply voltages while providing increased channels, respectively. The ADG1406 switches one of 16 inputs performance, dramatically lower power consumption, and to a common output, as determined by the 4-bit binary address reduced package size. lines (A0, A1, A2, and A3). The ADG1407 switches one of eight The ultralow on resistance and on-resistance flatness of these differential inputs to a common differential output, as determined switches make them ideal solutions for data acquisition and gain by the 3-bit binary address lines (A0, A1, and A2). An EN input switching applications where low distortion is critical. iCMOS on both devices enables or disables the device. When disabled, construction ensures ultralow power dissipation, making the all channels switch off. When on, each channel conducts equally devices ideally suited for portable and battery-powered instruments. well in both directions and has an input signal range that extends to the supplies.
Table 1. Related Devices Device No. Description
The industrial CMOS (iCMOS) modular manufacturing ADG1206/ADG1207 Low capacitance, low charge injection, process combines high voltage complementary metal-oxide and low leakage 8-/16-channel ±15 V semiconductor (CMOS) and bipolar technologies. It enables the multiplexers development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation
Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2008–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY 12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
