Data Sheet. ADG1406/ADG1407. Parameter. +25°C. −40°C to +85°C. −40°C to +125°C1 Unit. Test. Conditions/Comments

Data Sheet ADG1406/ADG1407 Parameter +25°C −40°C to +85°C −40°C to +125°C1 Unit Test Conditions/Comments

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 18 link to page 18 link to page 19 link to page 19 link to page 19 link to page 19 link to page 19

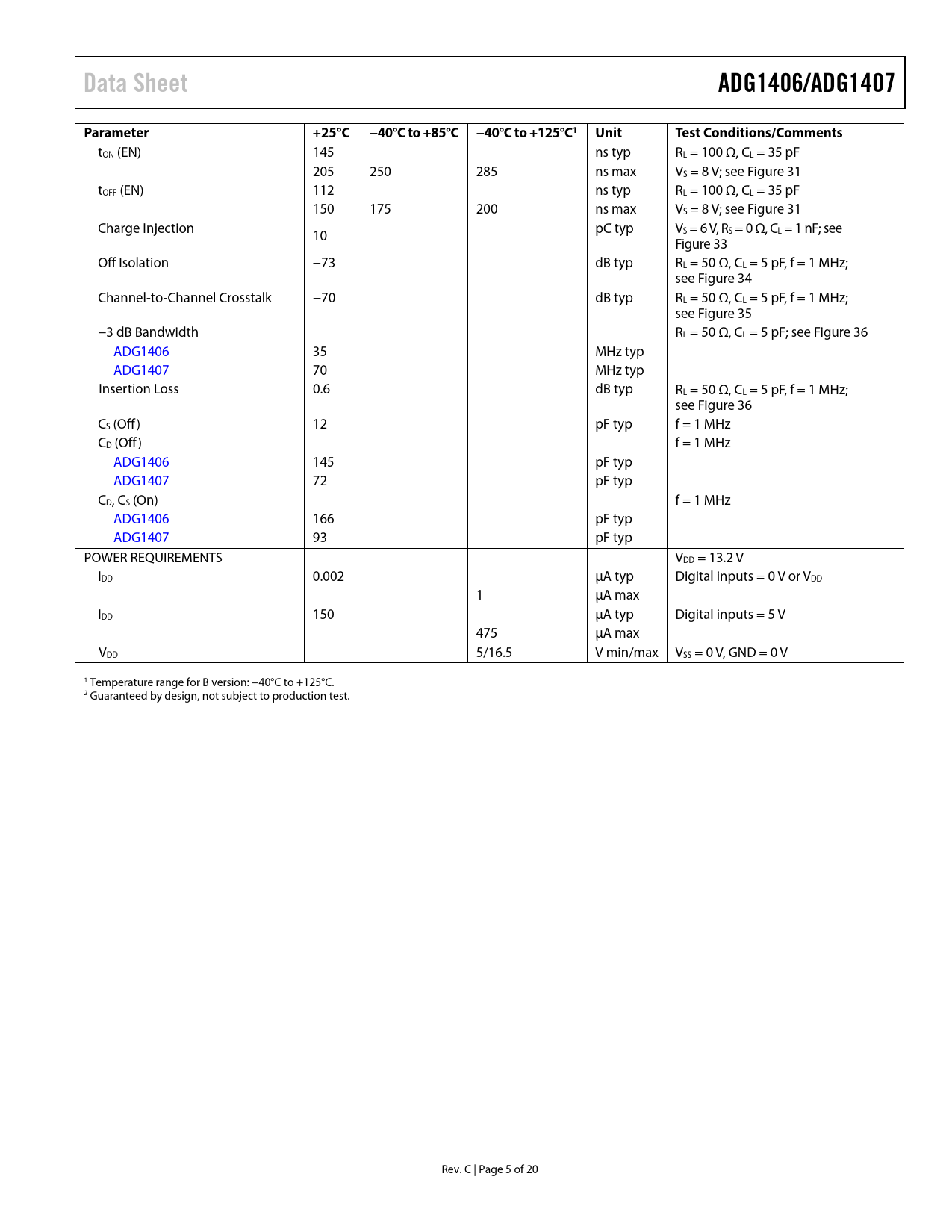

Data Sheet ADG1406/ADG1407 Parameter +25°C −40°C to +85°C −40°C to +125°C1 Unit Test Conditions/Comments
tON (EN) 145 ns typ RL = 100 Ω, CL = 35 pF 205 250 285 ns max VS = 8 V; see Figure 31 tOFF (EN) 112 ns typ RL = 100 Ω, CL = 35 pF 150 175 200 ns max VS = 8 V; see Figure 31 Charge Injection pC typ V 10 S = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 33 Off Isolation −73 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 34 Channel-to-Channel Crosstalk −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 35 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 36 ADG1406 35 MHz typ ADG1407 70 MHz typ Insertion Loss 0.6 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 36 CS (Off ) 12 pF typ f = 1 MHz CD (Off ) f = 1 MHz ADG1406 145 pF typ ADG1407 72 pF typ CD, CS (On) f = 1 MHz ADG1406 166 pF typ ADG1407 93 pF typ POWER REQUIREMENTS VDD = 13.2 V IDD 0.002 μA typ Digital inputs = 0 V or VDD 1 μA max IDD 150 μA typ Digital inputs = 5 V 475 μA max VDD 5/16.5 V min/max VSS = 0 V, GND = 0 V 1 Temperature range for B version: −40°C to +125°C. 2 Guaranteed by design, not subject to production test. Rev. C | Page 5 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY 12 V SINGLE SUPPLY ±5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
